Cross-Member: Description and Operation

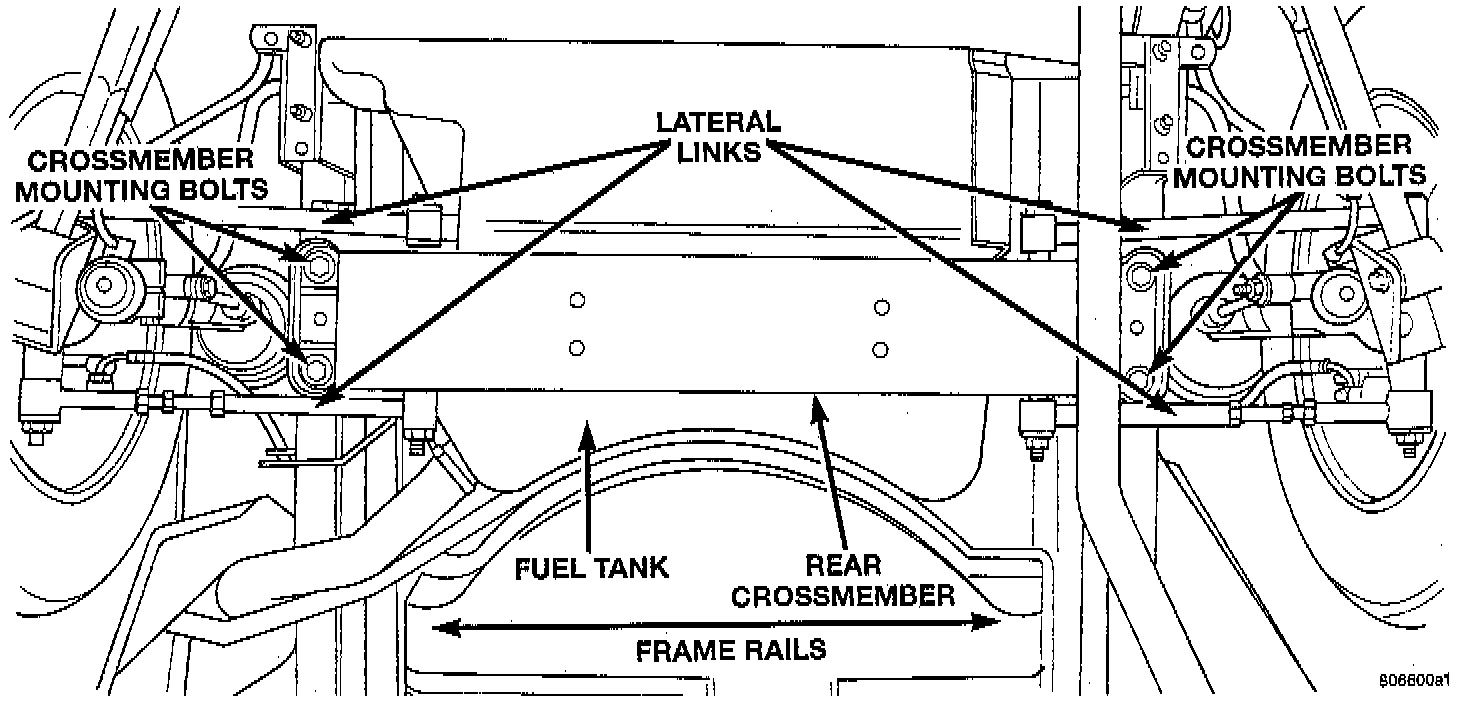

This vehicle is available with two different rear crossmembers depending on the suspension package the vehicle was built with. The crossmembers visually look the same between the standard and performance suspension packages, but the mounting location for the lateral links is different. The performance suspension crossmember is identified by a identification hole in the crossmember. The performance crossmember identification hole is located on left side of crossmember on the rear vertical wall.

NOTE: If the rear suspension crossmember is replaced, be sure the correct crossmember is installed or the handling of the vehicle will be adversely affected.
