Windshield Washer Spray Nozzle: Service and Repair

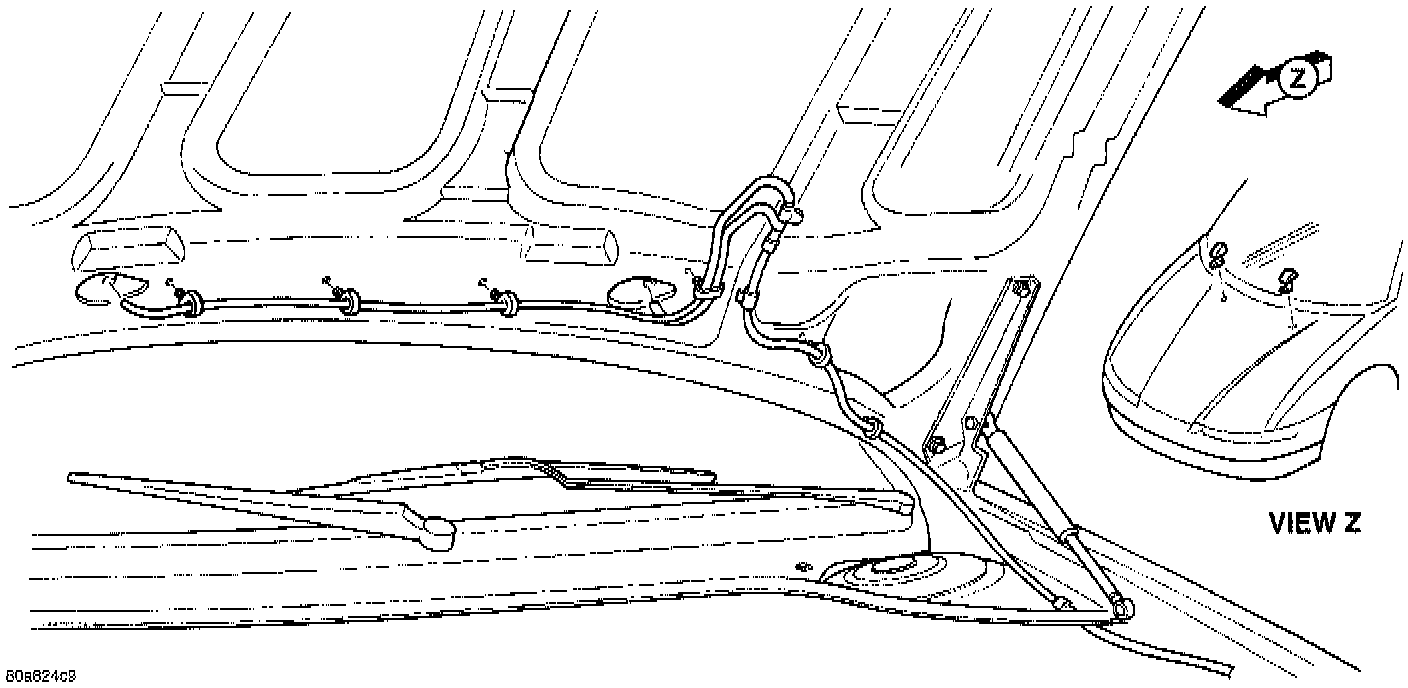

Windshield Washer Nozzle:
Washer Fluid Hose Location:
To replace nozzle, disconnect washer fluid hose. Using a needle nose pliers, squeeze together the locking tabs on the nozzle. When installing make sure that both locking tabs are securely snapped into position. Connect washer fluid hose. If no washer spray, check fluid hoses kinks or leaks.
