Blower Motor: Service and Repair

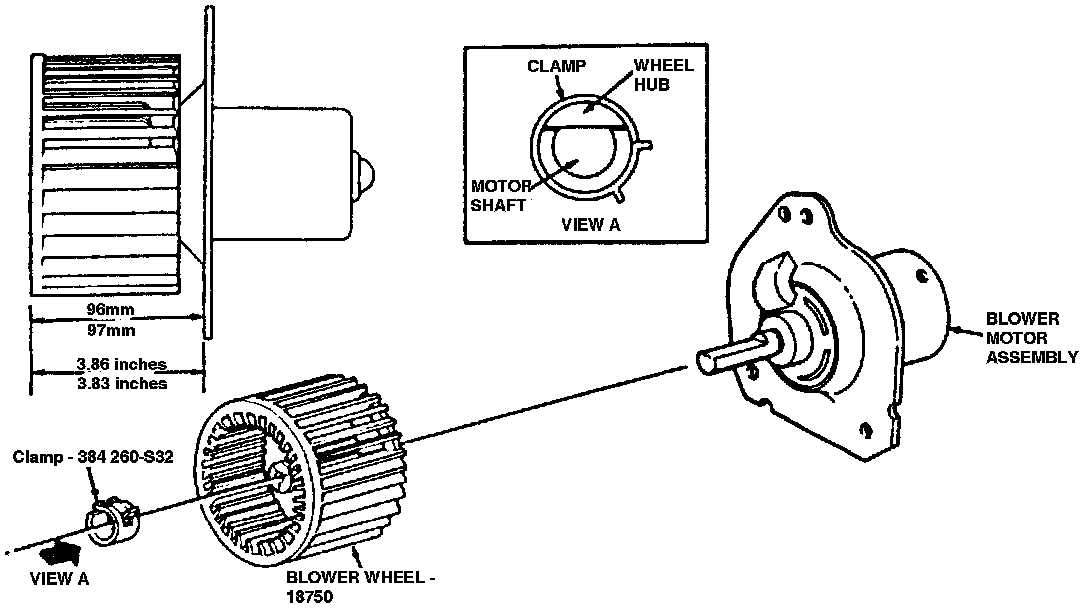

Fig. 17 Blower motor replacement. 1980---81 F-100---350 & Bronco less air conditioning:

Blower Motor Replacement (Less A/C):

Blower Motor Replacement (With A/C):

F-100---350 & BRONCO
1. Disconnect battery ground cable.
2. Disconnect blower motor electrical connector, and on 1980---81 models less air conditioning, remove ground wire screw.
3. On models equipped with air conditioning, disconnect air cooling tube from blower motor.
4. On all models, remove blower motor attaching screws and the blower motor, Figs. 17, 18 and 19.
5. Reverse procedure to install.
