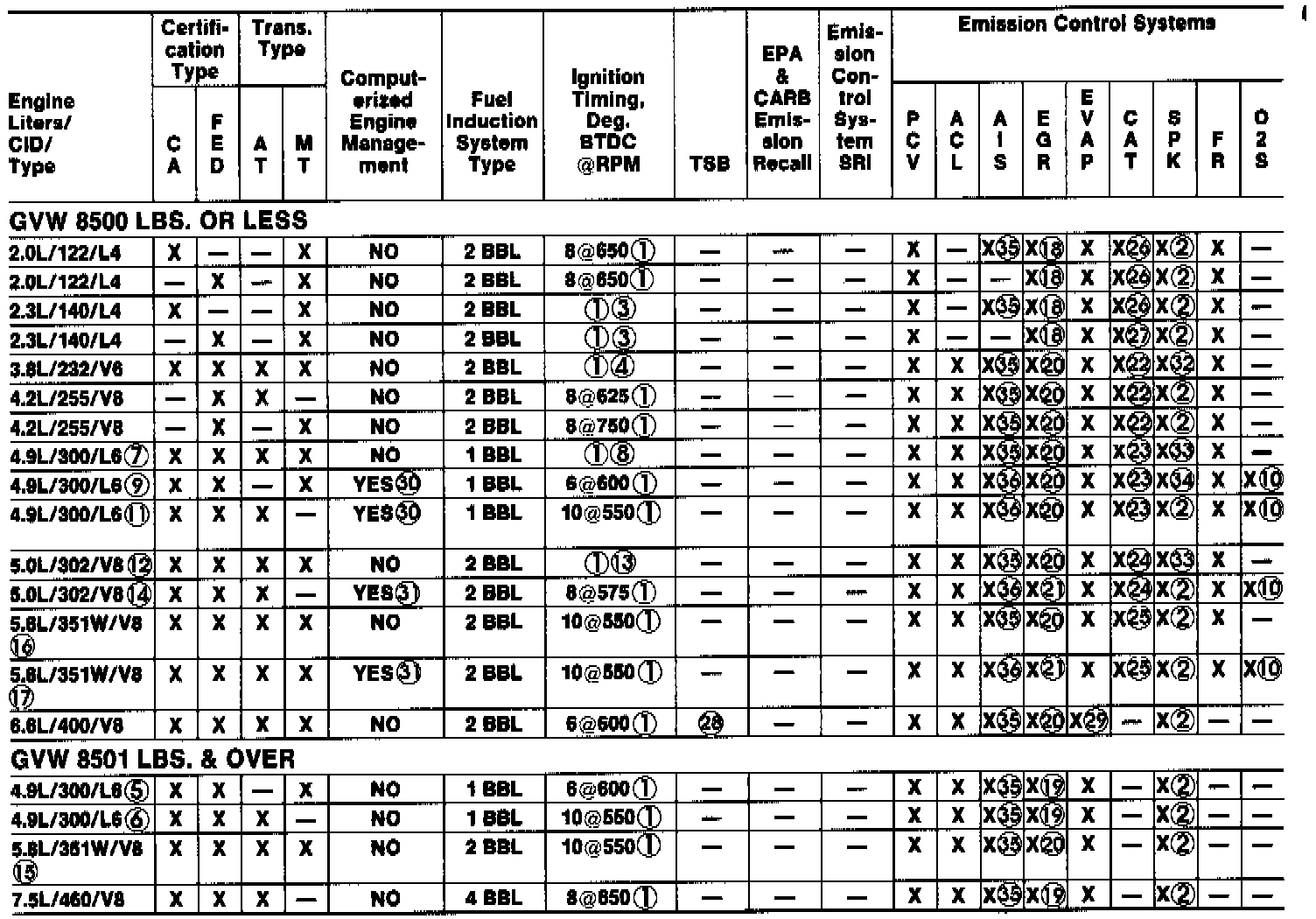

Emission Application Guides

Footnotes:

X - Equipped

- Not Equipped

1 - W/distributor vacuum advance line disconnected & plugged.

2 - Duraspark Ignition.

3 - MT, 6 degrees BTDC @ 850 RPM; AT, 6 degrees BTDC @ 700 RPM.

4 - MT, 10 degrees BTDC @ 800 RPM; AT, 12 degrees BTDC @ 900 RPM.

5 - E-350 & F-250/350 w/calibration codes 9-77J-R12 & 9-77S-R10.

6 - E-350 & F-250/350 w/calibration codes 9-78J-R0 & 9-78J-R11.

7 - Vehicles w/calibration codes 2-51D-R0, 2-51D-R10, 2-51E-R0, 2-51E-R10, 2-51F-R0, 2-51F-R10, 2-51G-R0, 2-51G-R10, 2-51K-R0, 2-51L-R0, 2-51S-R0. 2-51T-R0, 2-51X-R0. 2-51Y-RO, 2-52G-R0. 2-52H-R0, 2-52K-R0, 2-52L-R0 & 2-52Y-R0.

8 - MT, 6 degrees BTDC @ 600 RPM; AT, 10 degrees BTDC @ 550 RPM.

9 - Vehicles w/calibration codes 2-51P-R0 & 2-51P-R10.

10 - One O2S.

11 - Vehicles w/calibration codes 2-52S-R0 & 2-52T-R0.

12 - Vehicles w/calibration codes 2-53D-R0, 2-53F-R0, 2-53GR0, 2-53H-R0, 2-53K-R0. 2-53X-R0, 2-54D-R10, 2-54F-R0, 2-54F-R10, 2-54G-R0, 2-54H-R0, 2-54H-R10, 2-54K-R0 & 2-54X-R0.

13 - MT, 8 degrees BTDC @ 700 RPM; AT, 8 degrees BTDC @ 575 RPM.

14 - Vehicles w/calibration codes 2-54P-R0, 2-54P-R10, 2-54P-R11, 2-54R-R0, 2-54R-R10 & 2-54R-R11.

15 - Vehicles w/calibration codes 2-75J-R18, 2-75J-R20, 2-76J-R18, 2-7SJ-R20, 7-75J-R14, 7-76J-R11, 7-76J-R14 & 7-76J-R15.

16 - Vehicles w/calibration codes 1-64H-R02 & 2-64X-R0.

17 - Vehicles w/calibration codes 1-63T-R0, 1-63T-R10, 1-63T-R11, 1-63T-R12, 1-64R-R01, 1-64R-R10, 1-64S-R0, 1-64S-R10, 1-64T-R0, 1-64T-R10, 2-63Y-R10, 2-63Y-R11, 2-64Y-R10 & 2-64Y-R11.

18 - Ported EGR valve system.

19 - Ported EGR valve system.

20 - Backpressure EGR valve system.

21 - Sonic cooler EGR valve system.

22 - Type, OC; number of catalytic converters, 1.

23 - CA, type, TWC+OC number of catalytic converters, 2. FED, exc. F100, type, OC; number of catalytic converters, 1; F100, type, TWC+OC number of catalytic converters, 2.

24 - CA, type, TWC+OC; number of catalytic converters, 3. FED, type, OC; number of catalytic converters, 1.

25 - CA, type, TWC+OC; number of catalytic converters, 2. FED, exc. F150 & 250, type, OC; number of catalytic converters, 1; F150 & 250, type, TWC+OC; number of catalytic converters, 2.

26 - Type, TWC+OC; number of catalytic converters, 1.

27 - Exc. high alt., type, TWC+OC; number of catalytic converters, 1. high alt., type, OC; number of catalytic converters, 1.

28 - On models which experience low power &/or poor fuel economy. a service modification can be performed.

29 - FED E & F350 not equipped.

30 - MCU

31 - EEC-III

32 - AT, DI/DS-II; MT, DI/UIC.

33 - Except high altitude, DI/DS-II; high altitude, DI/Universal integrated circuit.

34 - Exc. FED F-100, DI/DS-II; FED F-100, DI/UIC.

35 - Conventional Thermactor/pump type.

36 - Managed Thermactor Air/pump type.
