Input Shaft: Service and Repair

DISASSEMBLE

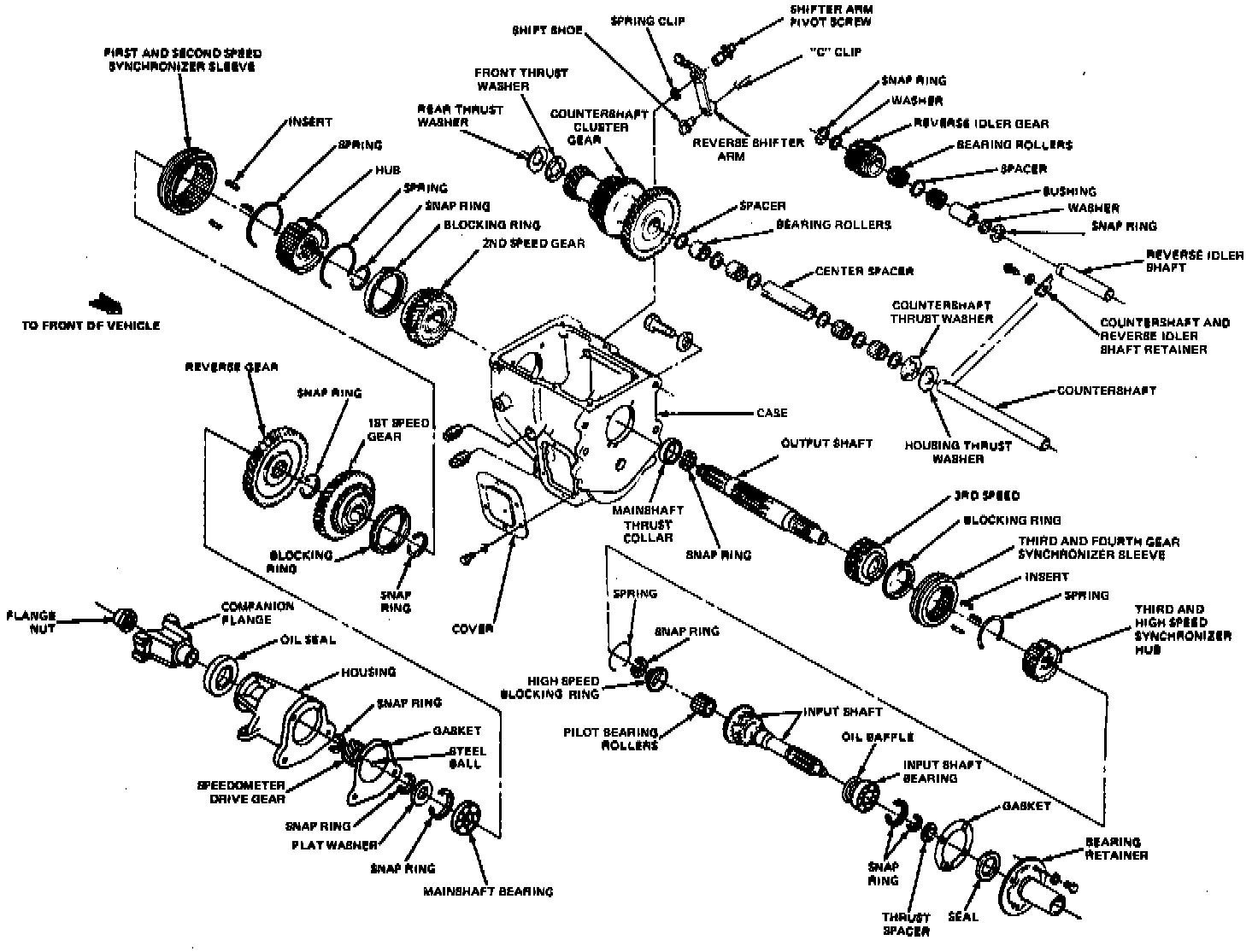

Disassembled View Of Warner T-19B & T-19D 4-speed Manual Transmission:

1. Remove thrust spacer and pilot bearing rollers from gear bore.
2. Remove input shaft bearing using a suitable puller.

ASSEMBLE
1. Press bearing and oil baffle onto input shaft and against gear.
2. Apply suitable grease to gear bore and position 17 pilot rollers in bore.
3. Install thrust spacer in bore and hold in position with grease.
