A/T Technical Data

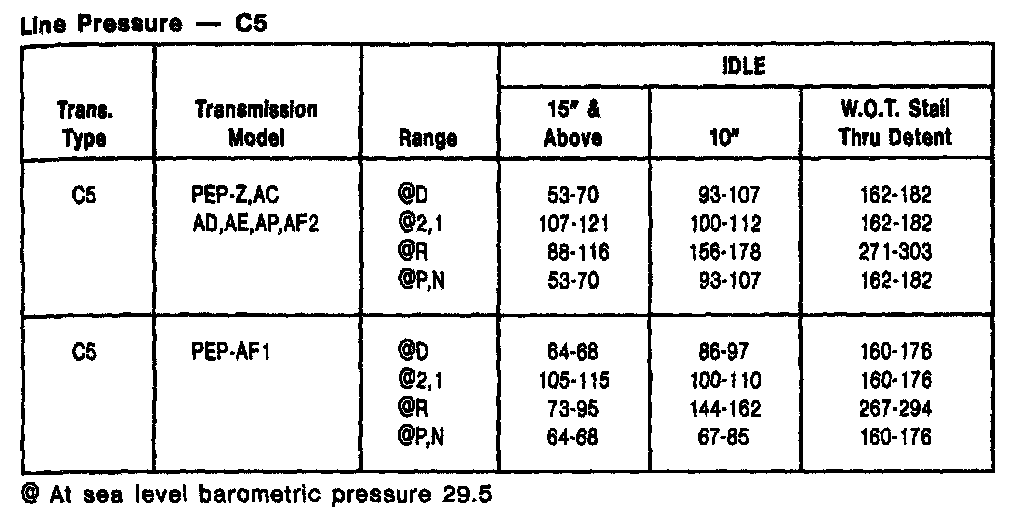

C-5 3-spd A/T, Line Pressure:

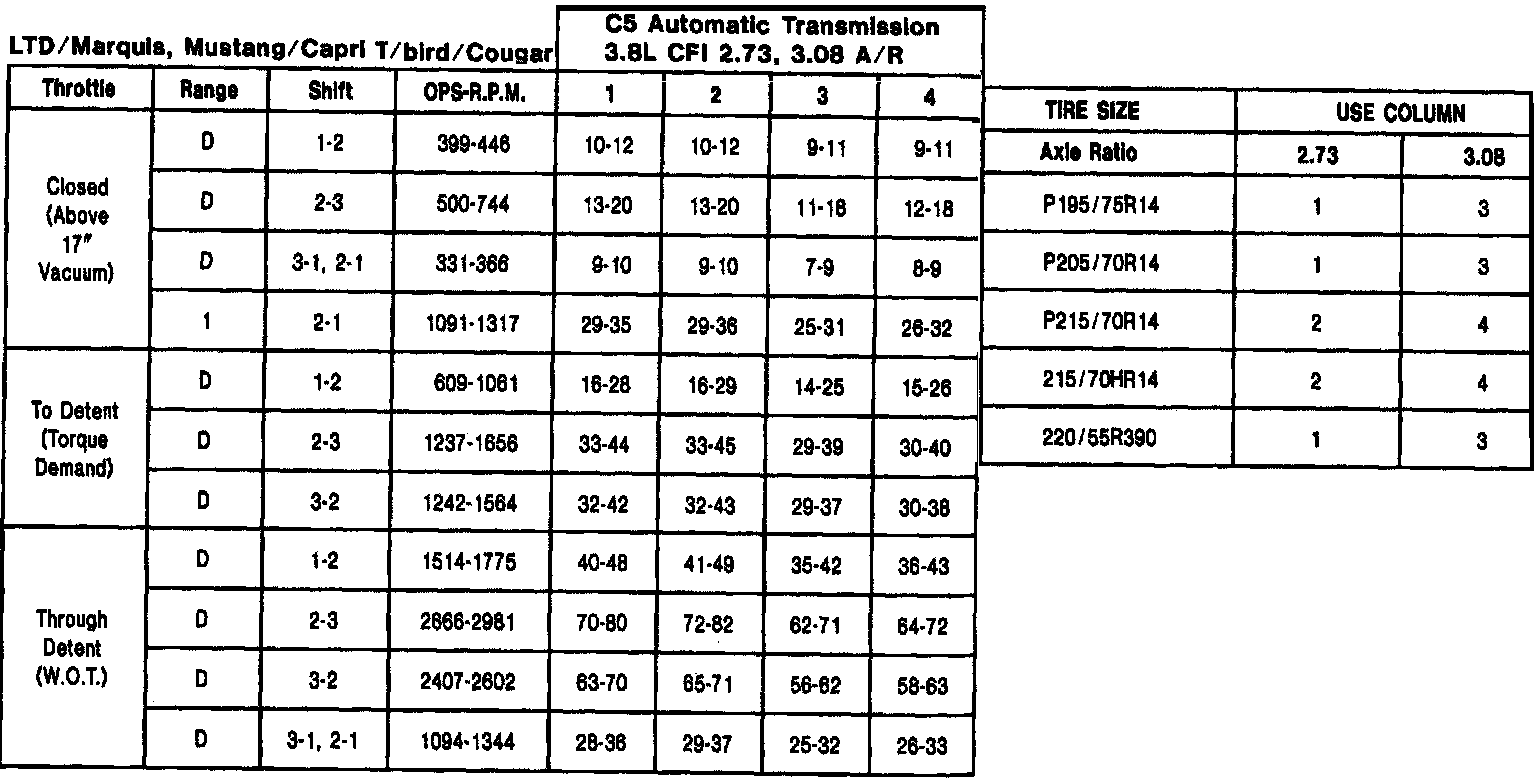

C-5 3-spd A/T, Shift Speeds (Per Vehicle Listed):

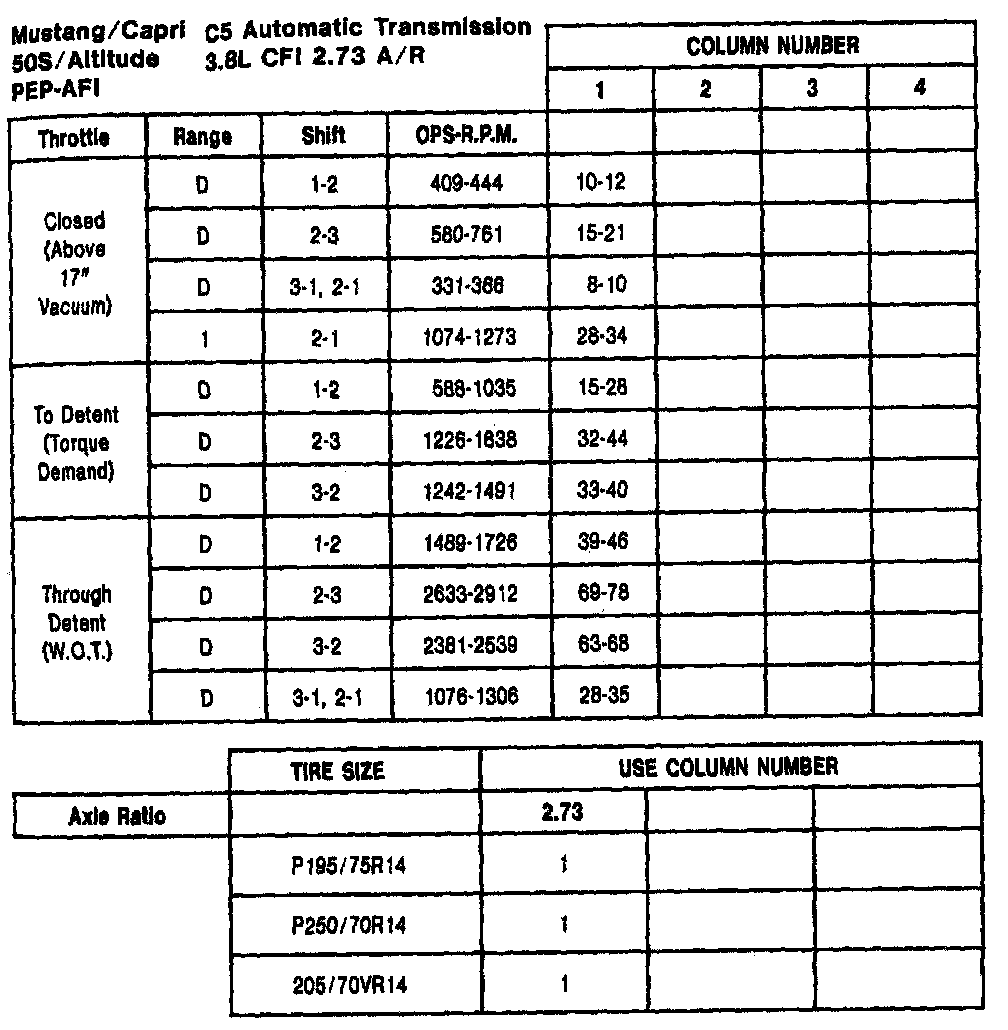

C-5 3-spd A/T, Shift Speeds (3.8L Mustang/Capri):





C-5 3-spd A/T, Stall Speeds (Per Vehicle Listed):

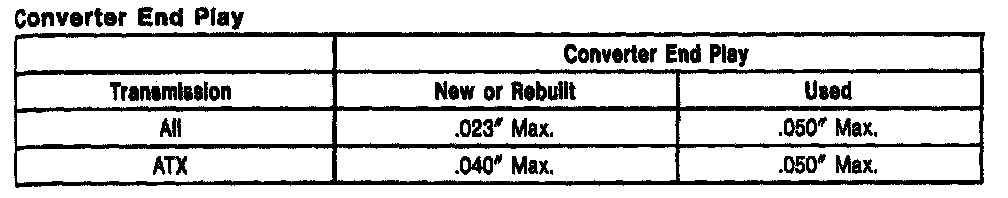

C-5 3-spd A/T, Converter End Play:

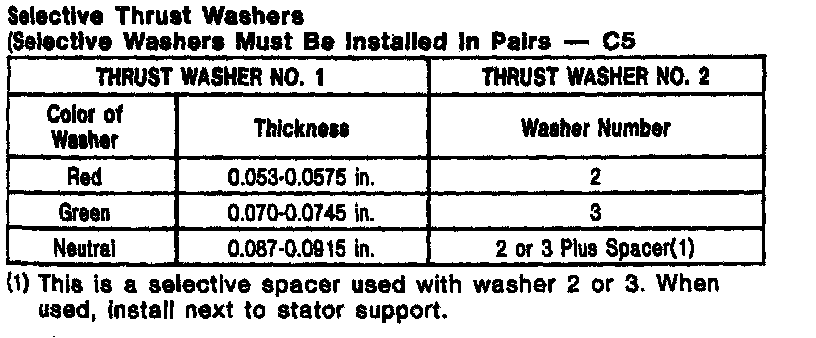

C-5 3-spd A/T, Thrust Washers:

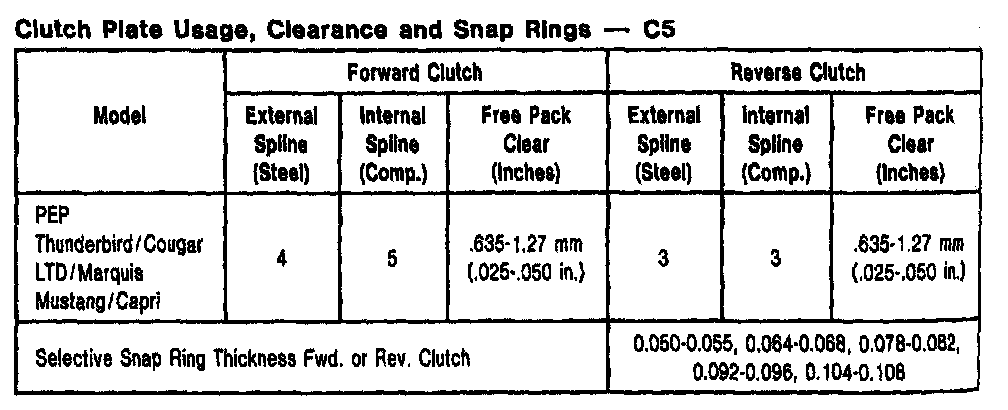

C-5 3-spd A/T, Clutch Plate Usage/Clearance:

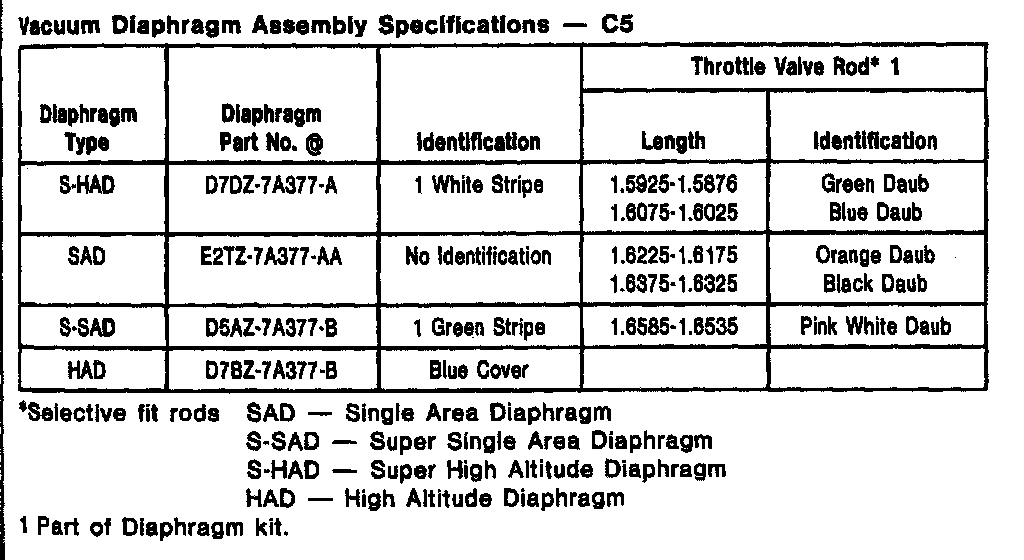

C-5 3-spd A/T, Vacuum Diaphragm Assembly:

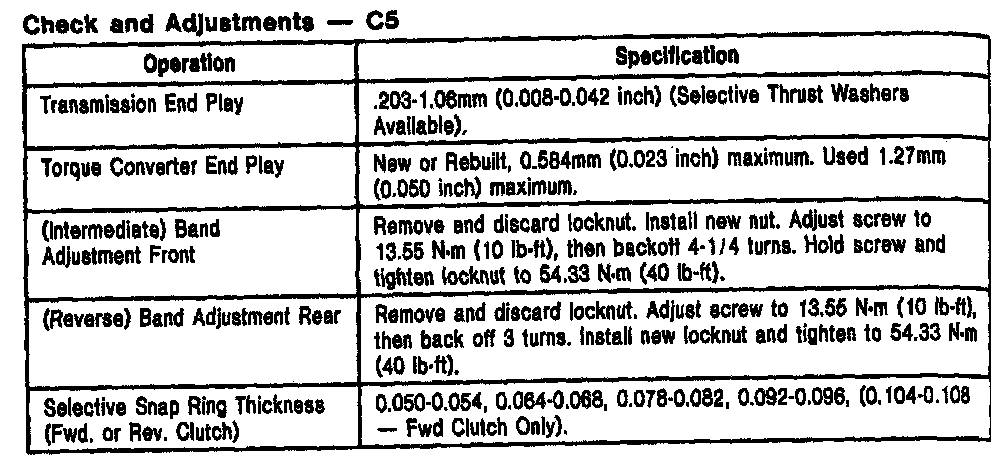

C-5 3-spd A/T, End Play:
