Blower Motor: Service and Repair

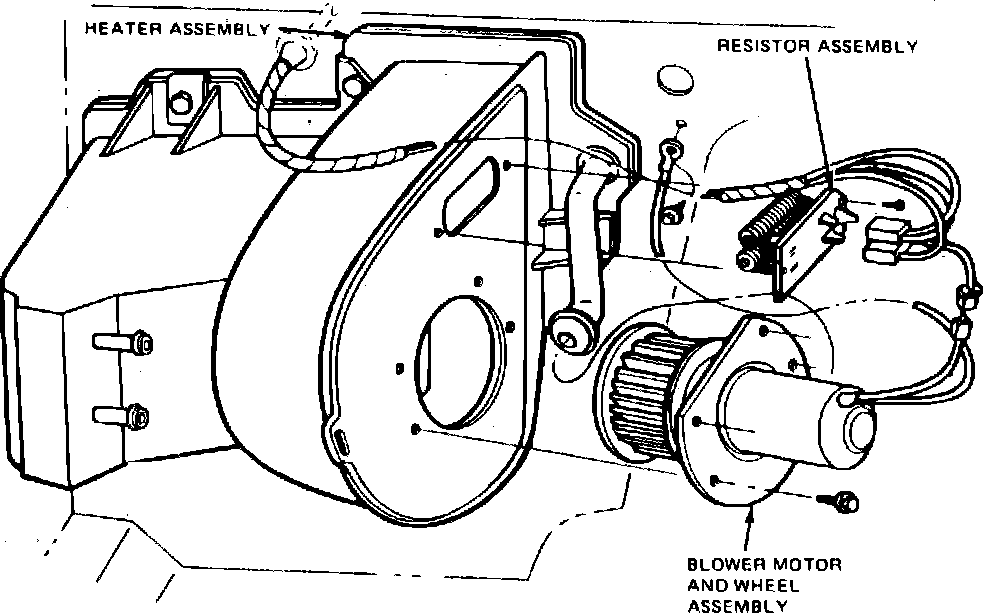

Fig. 15 Blower motor replacement. E-100---350 less air conditioning:

E-100---350
Less Air Conditioning
1. Disconnect battery ground cable.
2. Disconnect blower motor electrical connector, then remove ground wire screw from dash.
3. Disconnect cooling tube from blower motor, if equipped.
4. Remove 4 blower motor attaching screws and the blower motor, Fig. 15.
5. Reverse procedure to install.

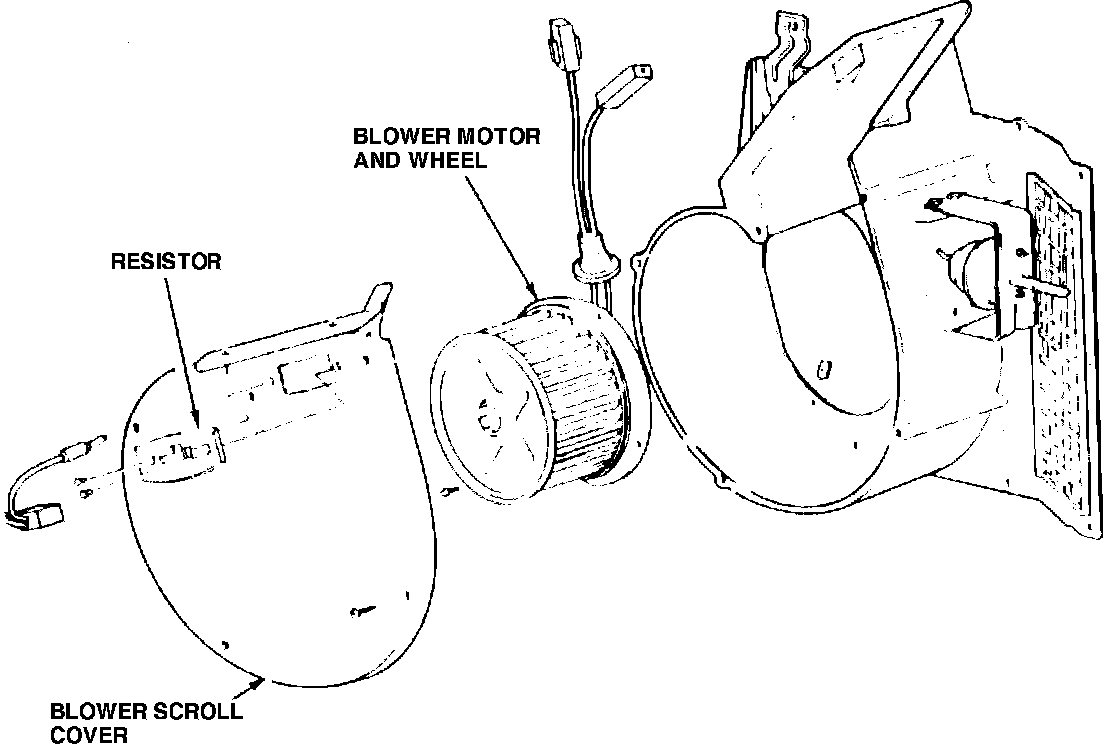

Fig. 16 Blower motor replacement. E-100---350 w/air conditioning:

W/Air Conditioning
1. Disconnect battery ground cable.
2. Disconnect electrical connectors from resistor on front of blower scroll cover.
3. Remove blower scroll cover attaching screws and the scroll cover, Fig. 16.
4. Push wiring grommet out through hole in blower motor housing.
5. Remove 4 blower motor attaching screws and the blower motor.
6. Reverse procedure to install.
