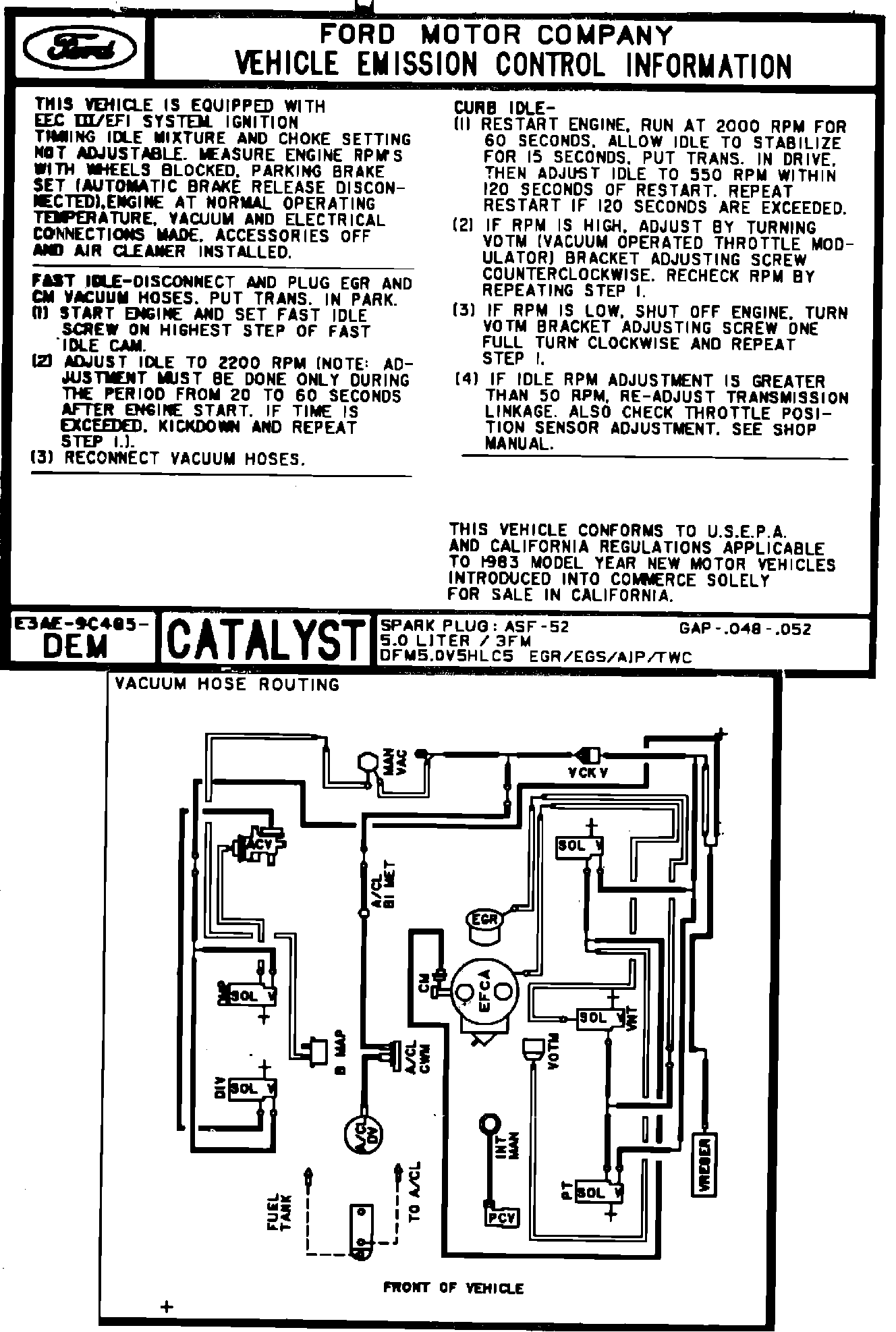

Calibration:2-22A-R19




MODEL YEAR: 1983 - ENGINE: 5.0L
CARBURETOR SPECIFICATIONS

Model: Ford CFI
Part Number: E3VE-9C973-CA E3VE-9C973-CB (Alt.)

FAST IDLE CONTROL SYSTEM
Bi-Metal Identification: C100ME4
Bi-Metal Setting: 2NR
Fast Idle Cam Identification: D Fast Idle Pull-Off Time
(@ Top Step of Cam): 60 sec. @ 0~F
30 sec. @ 70~F

CFI (CENTRAL FUEL INJECTION) Fuel Injector Identification (2 req'd): E0SE-9F593-AA Fuel Press. Regulator Identification: E0SE-9C968-AC

THROTTLE POSITION SENSOR
IDENTIFICATION: E3TF-9B989-BB
