Powertrain Management: Diagrams

Powertrain Management: Diagrams

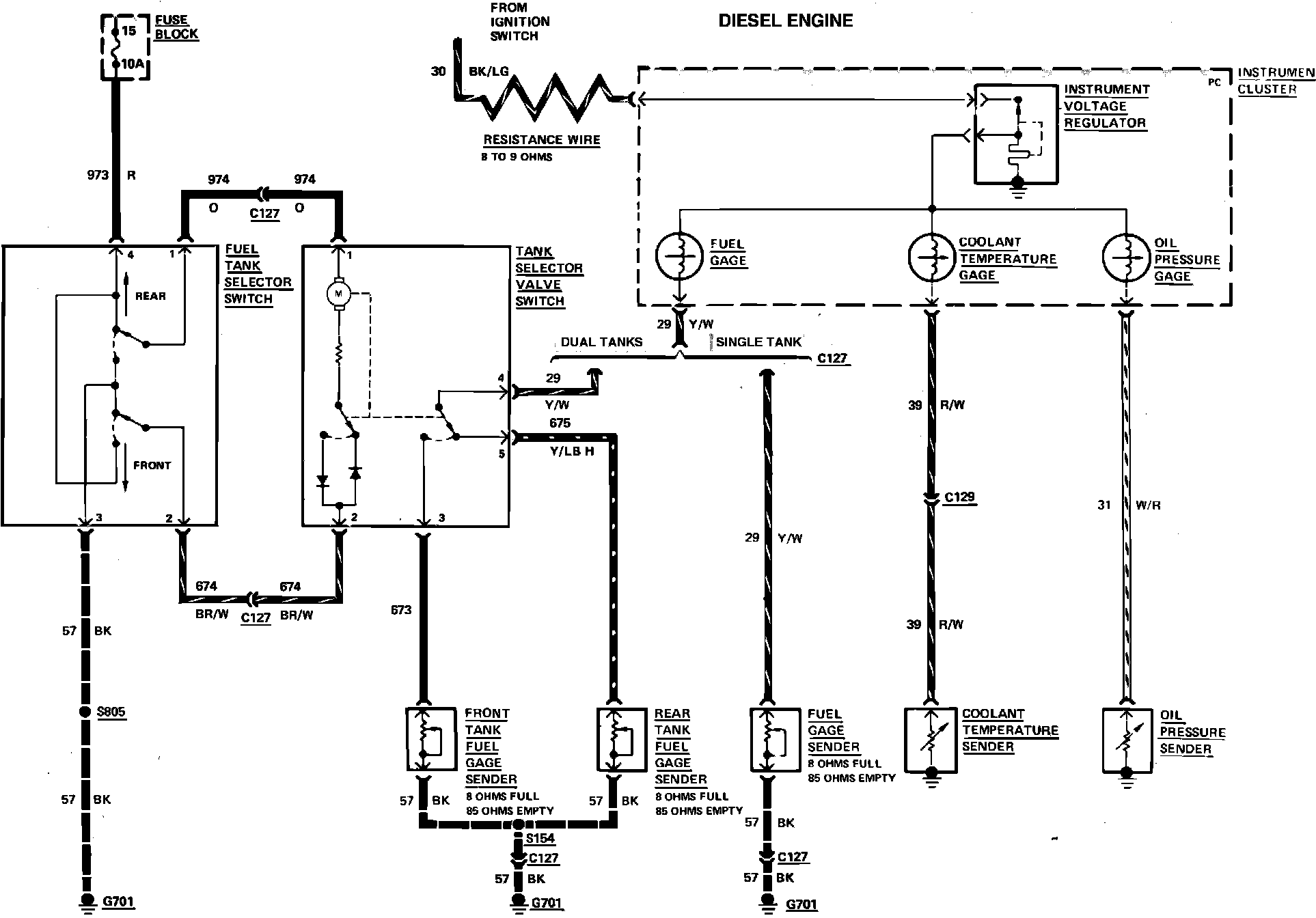

Fig. 65 Fuel tank selector & Gauges wiring circuit. 1983-84 F250-350 with diesel engine:

Fig. 72 Glow plug control & Starting system wiring circuit (Part 1 of 2). 1984 F250-350 with diesel engine:

Fig. 72 Glow plug control & Starting system wiring circuit (Part 2 of 2). 1984 F250-350 with diesel engine:

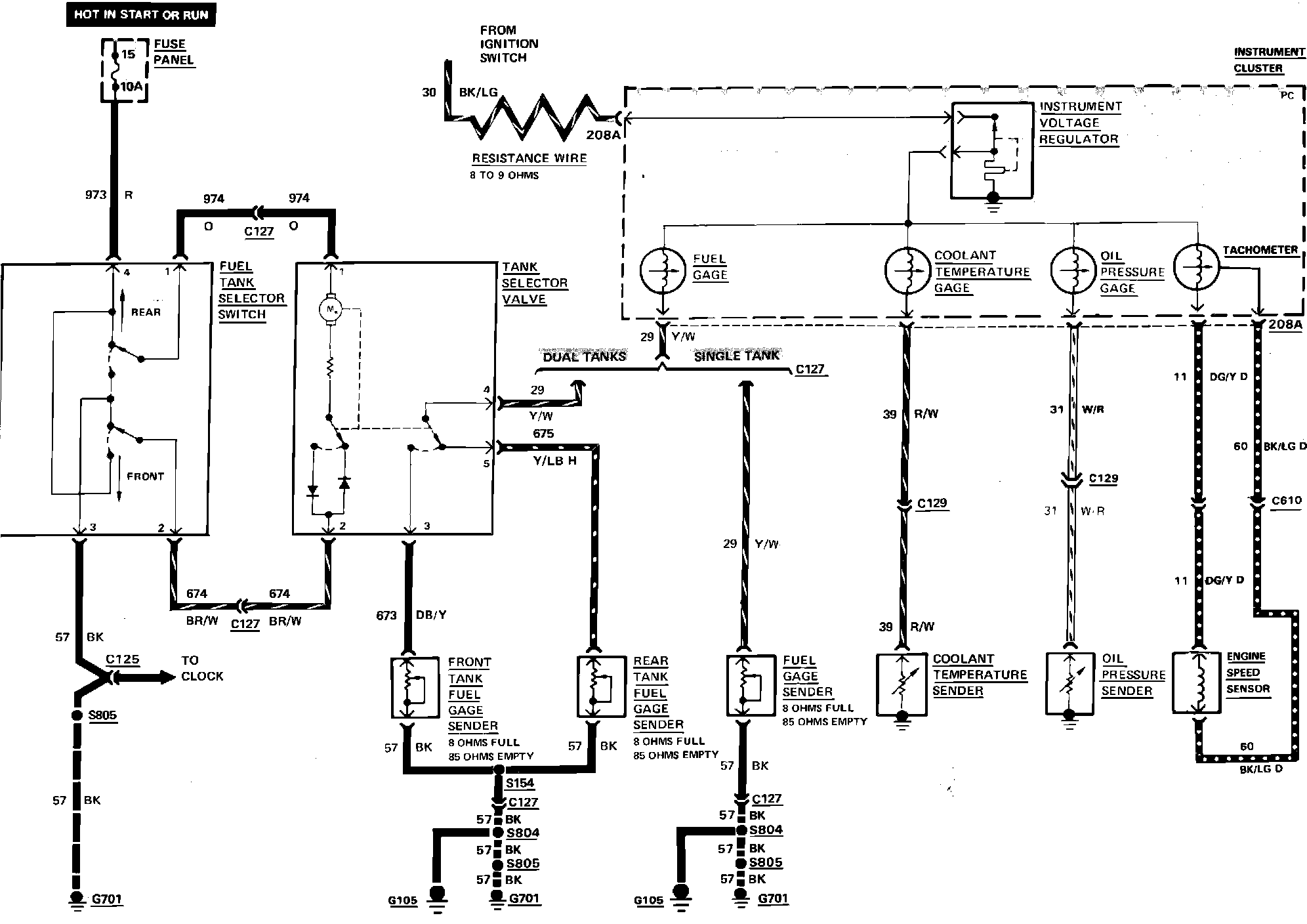

Fig. 32 Fuel Tank Selector & Gauges (Coolant, Fuel, Oil & Tachometer) Wiring Circuit. Diesel Engine With Dual Tanks:
