Dealer Installed A/C - Air Distribution Modification
84ford17Article No. 84-5-8
AIR CONDITIONING - DEALER INSTALLED - AIR DISTRIBUTION MODIFICATION
FORD 1984 ESCORT, EXP, TEMPO
LINCOLN-MERCURY 1984 LYNX, TOPAZ
To improve air distribution on dealer installed air conditioning units, an air register impingement screen is now available for the subject vehicles.

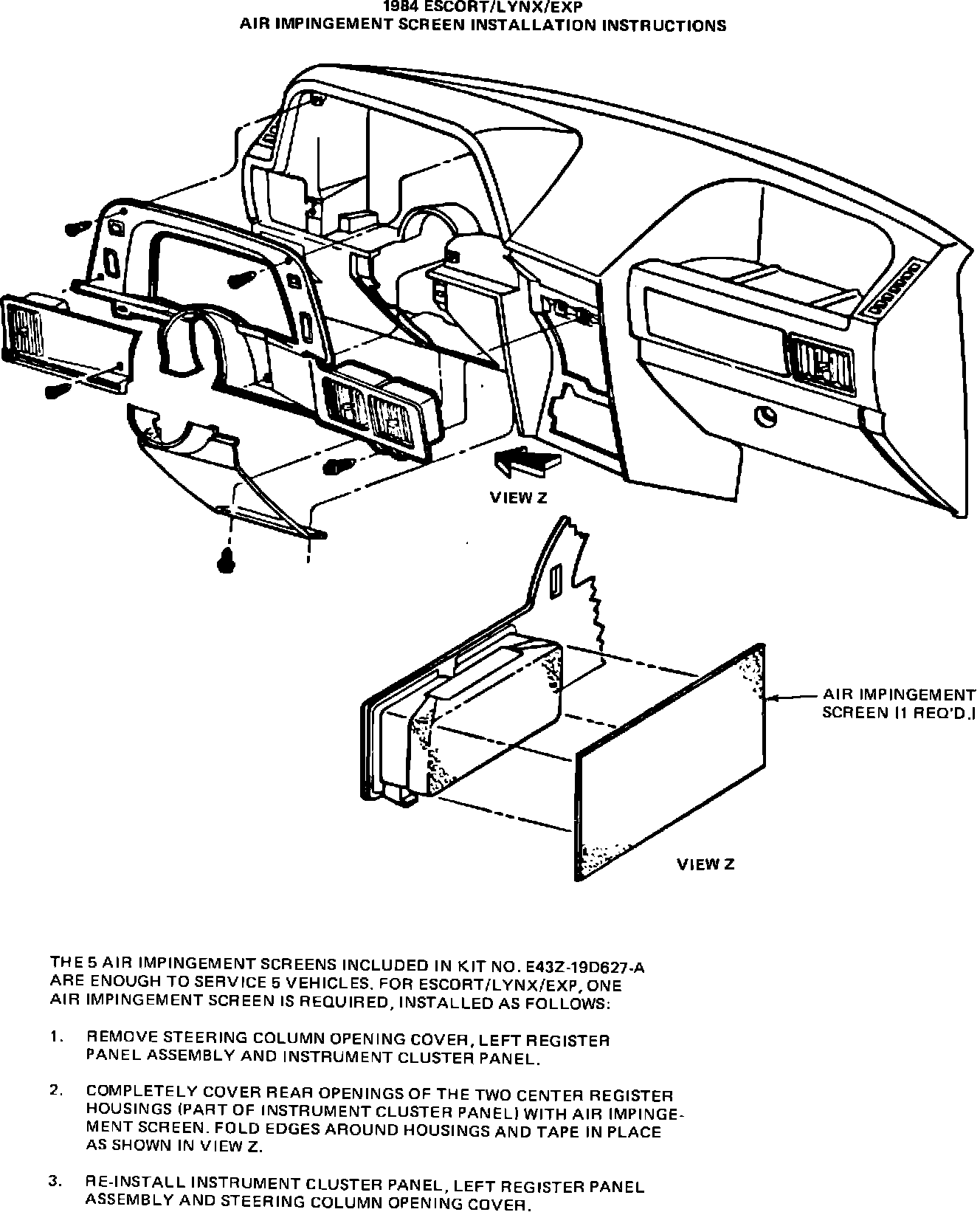

FIGURE 11:
1984 Escort/Lynx/EXP
Air distribution will be improved to the outboard registers when air impingement screen is installed as shown in Figure 11.

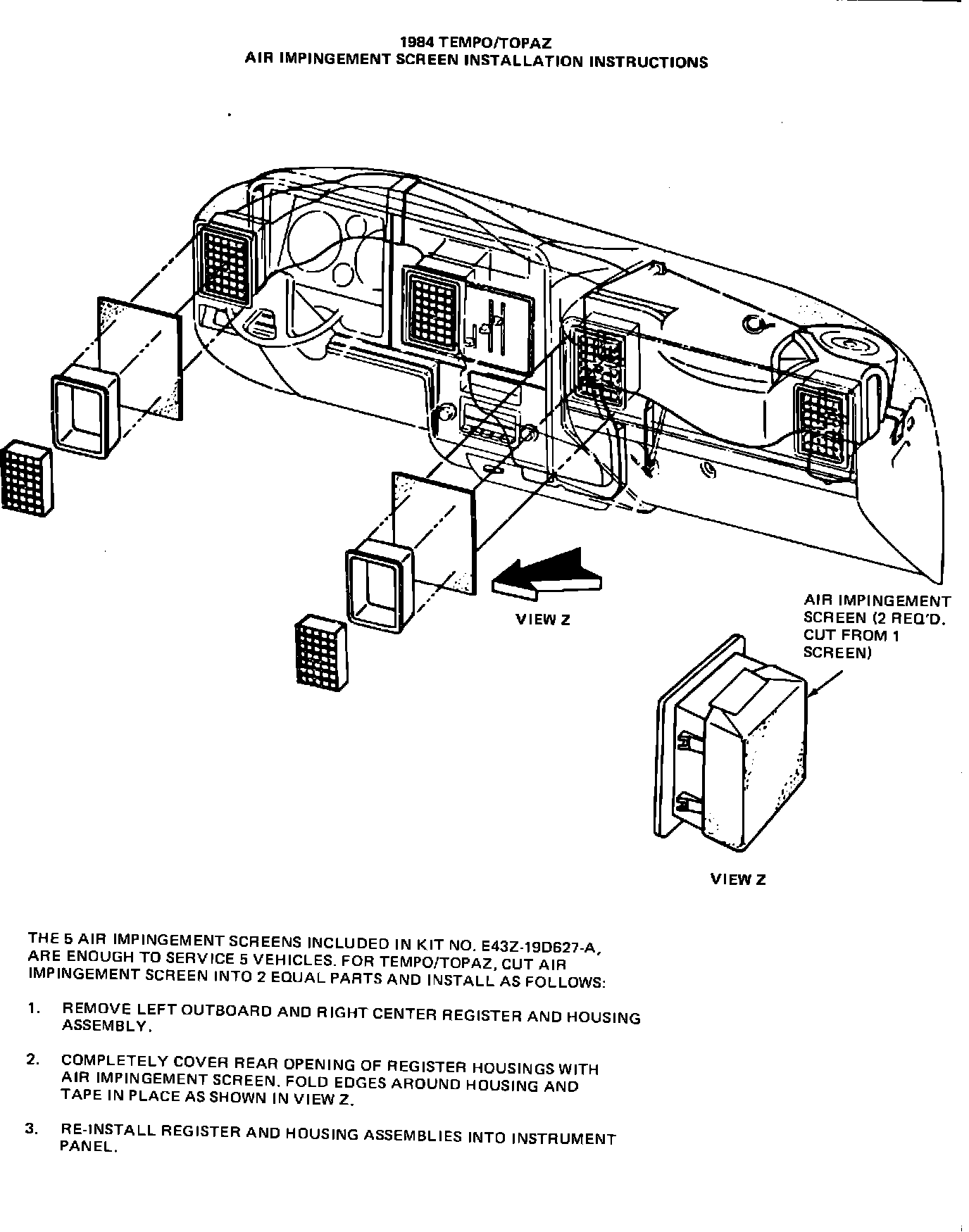

FIGURE 12:
1984 Tempo/Topaz
Air distribution will be improved to the left center and right outboard register when air impingement screens are installed on the left outboard and right center register housings (Figure 12).
PART NUMBER PART NAME CLASS
E43Z-19D627-A Screen Kit PA
OTHER APPLICABLE ARTICLES: None
WARRANTY STATUS: Reimbursable within the provisions of the Warranty and Policy Manual.
OPERATION: SP19627A84
TIME: Tempo/Topaz - 0.3 Hr. Escort/Lynx/EXP - 0.6 Hr. DLR. CODING: Basic Part No. 19843 Code: 37
