Manual Transmission - Service Specifications

84ford18

Article No. 84-4-19


TRANSMISSION/TRANSAXLE - MANUAL 4-5 SPEED - SERVICE SPECIFICATIONS

FORD

1984 MUSTANG, ESCORT, EXP, T-BIRD, TEMPO

LINCOLN-MERCURY 1984 CAPRI, LYNX, COUGAR, TOPAZ

LIGHT TRUCKS 1984 E & F-SERIES, RANGER, BRONCO II

The following charts contain 4 and 5 speed manual transmission/transaxle service torque and end play specifications.

OTHER APPLICABLE ARTICLES: None
WARRANTY STATUS: "INFORMATION ONLY



TRANSMISSION COMPONENT END PLAY

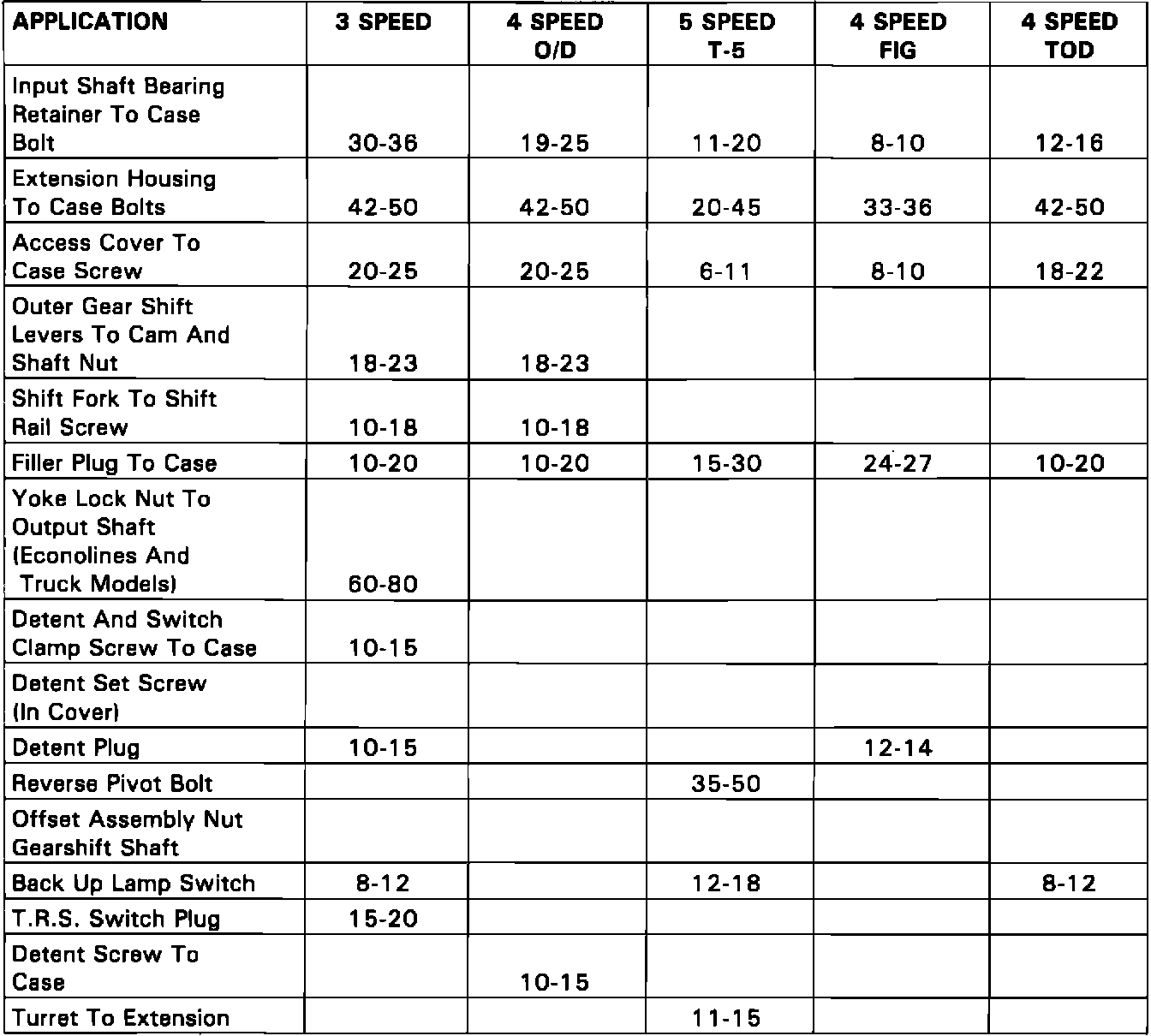

MANUAL TRANSMISSION TORQUE SPECIFICATION IN FT.LBS.

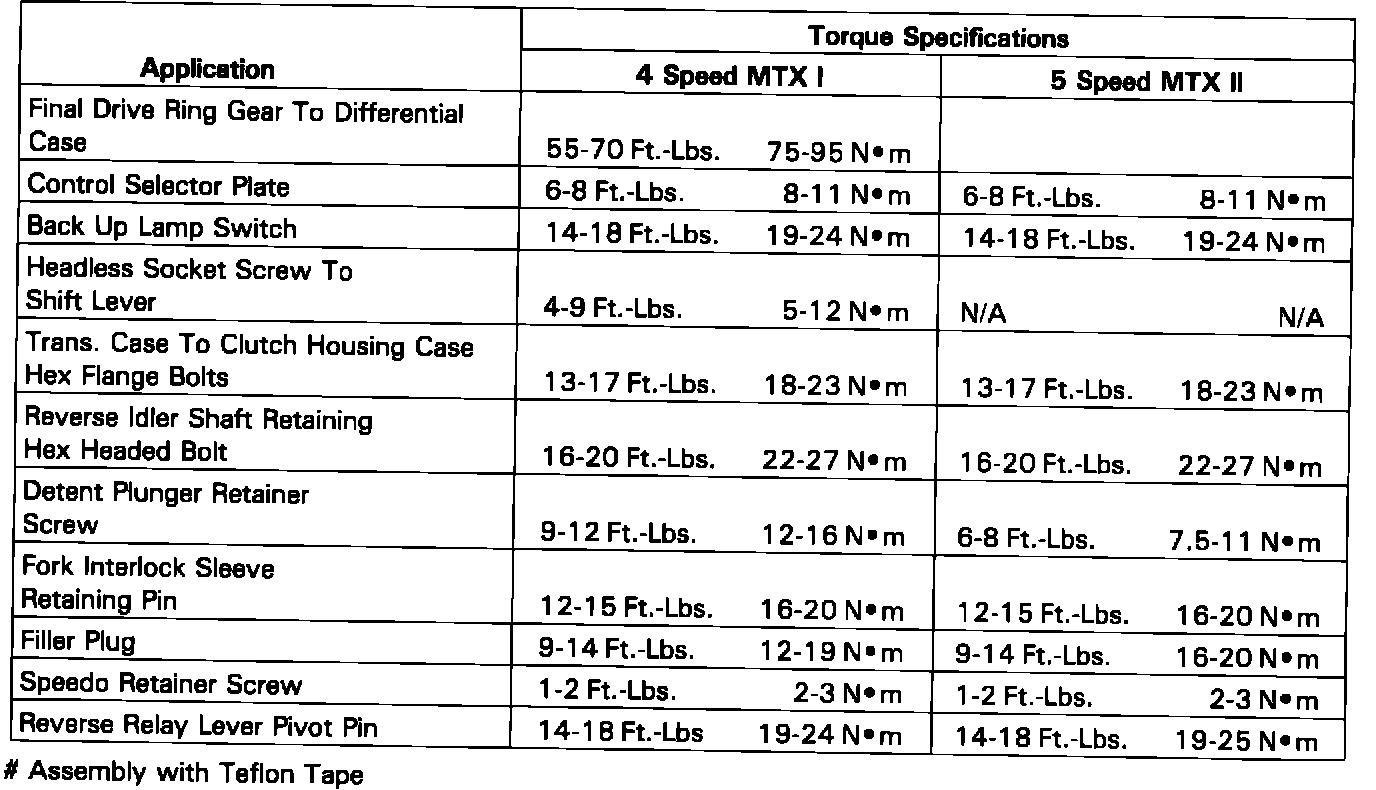

MANUAL TRANSAXLE TORQUE SPECIFICATIONS
