Engine Timing Mark - Diagnostic Symbol Revision

85ford03

Article No. 85-3-5


ENGINE TIMING MARK IDENTIFICATION - REVISED DIAGNOSTIC SYMBOLS - 2.3L HSC - MTX/ATX TRANSAXLE

FORD 1985 TEMPO

LINCOLN-MERCURY 1985 TOPAZ

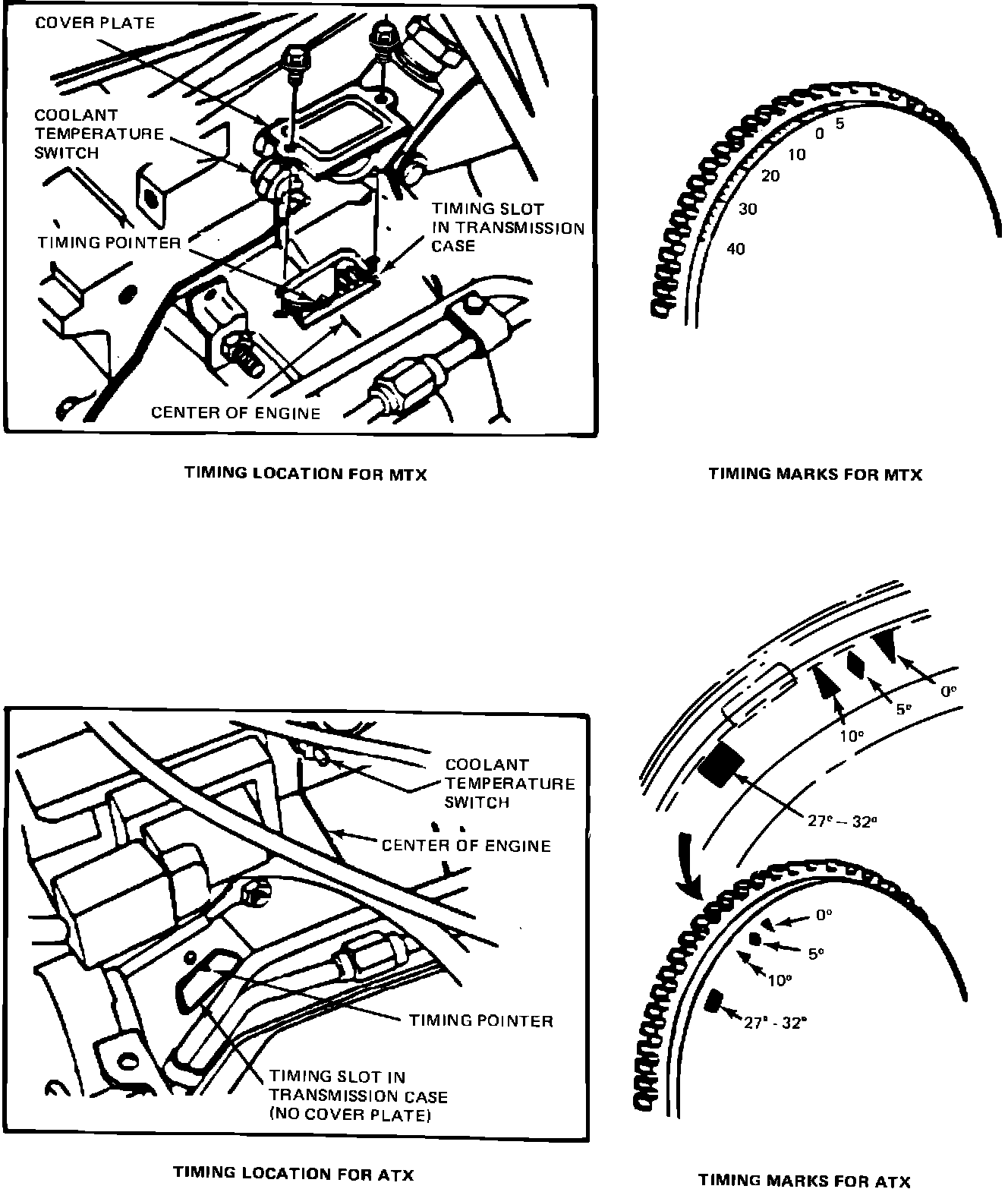

Figure 3:

The engine timing mark diagnostic symbols have been revised for all 1985 2.3L HSC MTX/ATX Tempo/ Topaz vehicles, Figure 3.
Refer to the 1985 Car/Truck Shop Manual, Engine/ Emissions Diagnosis, Volume H, Group 15 for timing procedures.

OTHER APPLICABLE ARTICLES: None
WARRANTY STATUS: "INFORMATION ONLY"
