Starter Relay: Locations

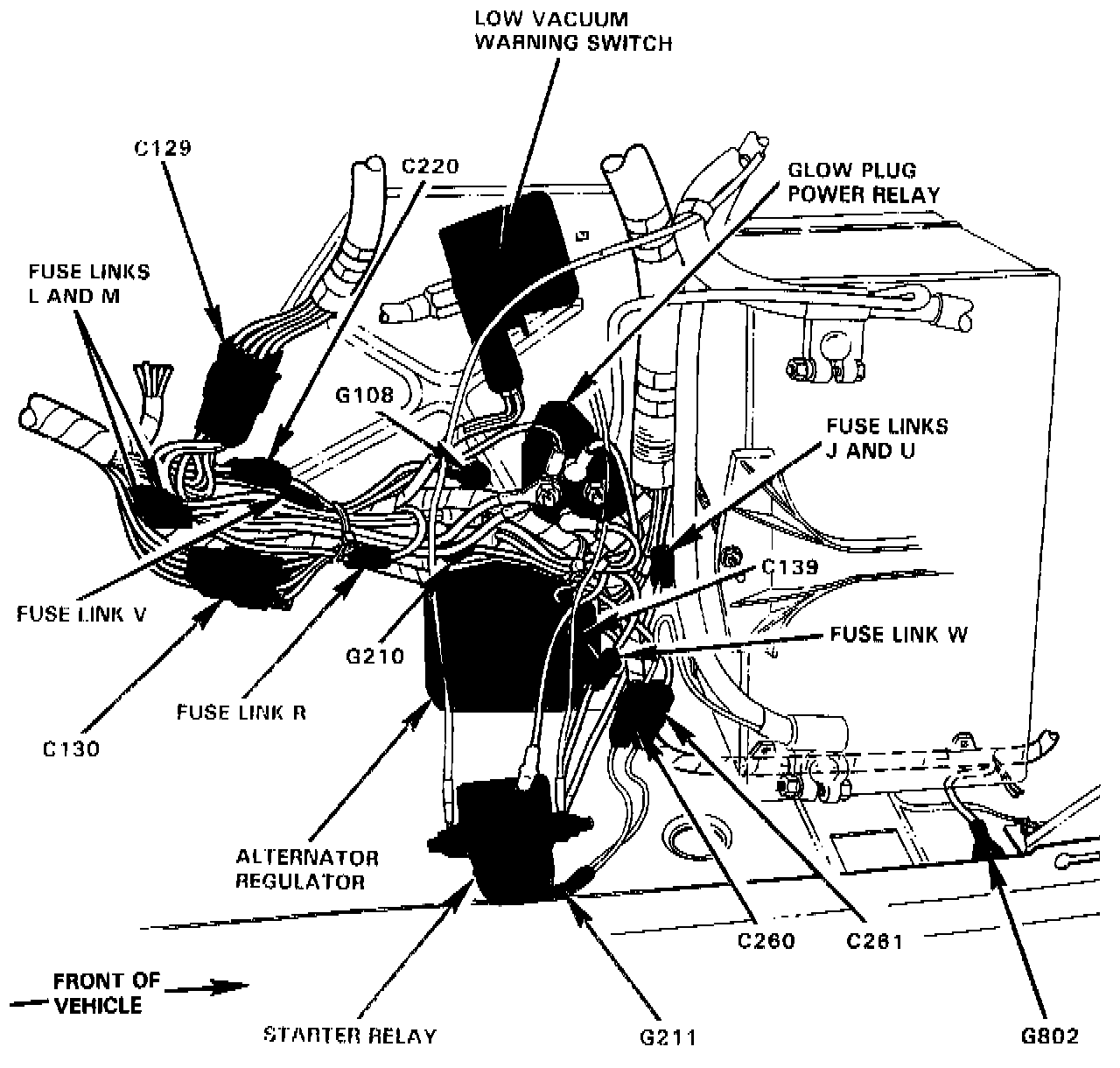

Fender Apron And Front-End Wiring:






The Starter Relay is located on the Passenger's Side Fender Apron.

Note: This image is a top view, locate the outline view of the battery.
