Power Seats - Inoperative


Article No. SEAT - POWER - INOPERATIVE -
87-3-5 WIRE/CONNECTORS PULLED OUT

FORD 1986 TAURUS

LINCOLN-MERCURY 1986 SABLE


ISSUE: Power seats may become inoperative if moved to the full forward position because the seat wire harness may be too short and the wiring connector pulls apart.

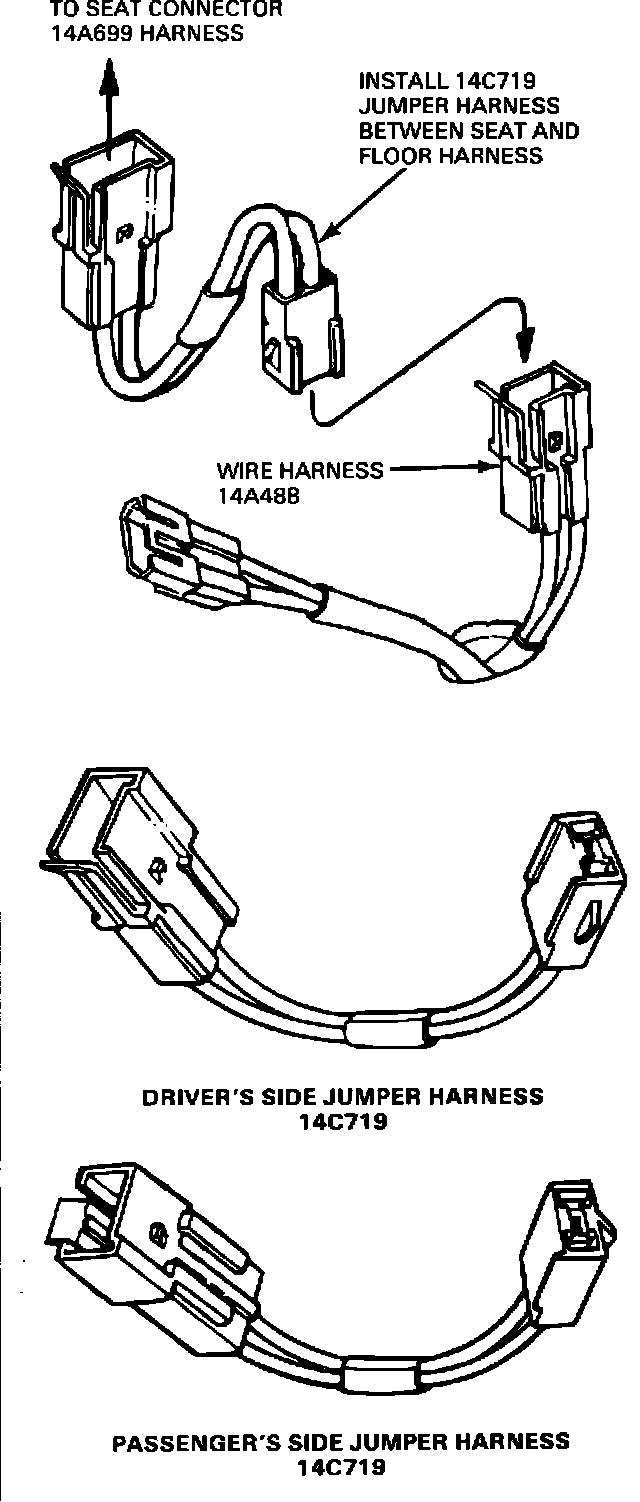

Figure 4:





ACTION: To correct this, install a new (jumper) wire harness (E6DZ-14C719-A driver's side and E6DZ-14C719-B passenger's side) between the seat connector and the 14A488 wire harness assembly to lengthen the harness travel, Figure 4. It is not necessary to remove either seat to install the jumper harness.

PART NUMBER PART NAME CLASS

E6DZ-14C719-A Wiring Assembly - Seat C
Control - Driver's Seat
E6DZ-14C719-B Wiring Assembly - Seat C
Control - Passenger's Seat

OTHER APPLICABLE ARTICLES: None
WARRANTY STATUS: Reimbursable within the provisions of the Warranty and Policy Manual
OPERATION: SP870305A
TIME: 0.3 Hr. DLR. CODING: Basic Part No. 14A699 - Code: 44
