Passive Restraint - Rustproofing Procedure


87ford12

PASSIVE RESTRAINT (MOTORIZED) - Article No.
RUSTPROOFING APPLICATION PROCEDURE 87-1-3
50 STATES


FORD 1987 ESCORT

LINCOLN-MERCURY 1987 LYNX


ISSUE: The new design motorized passive restraint system's components are partially housed inside each body rocker panel.

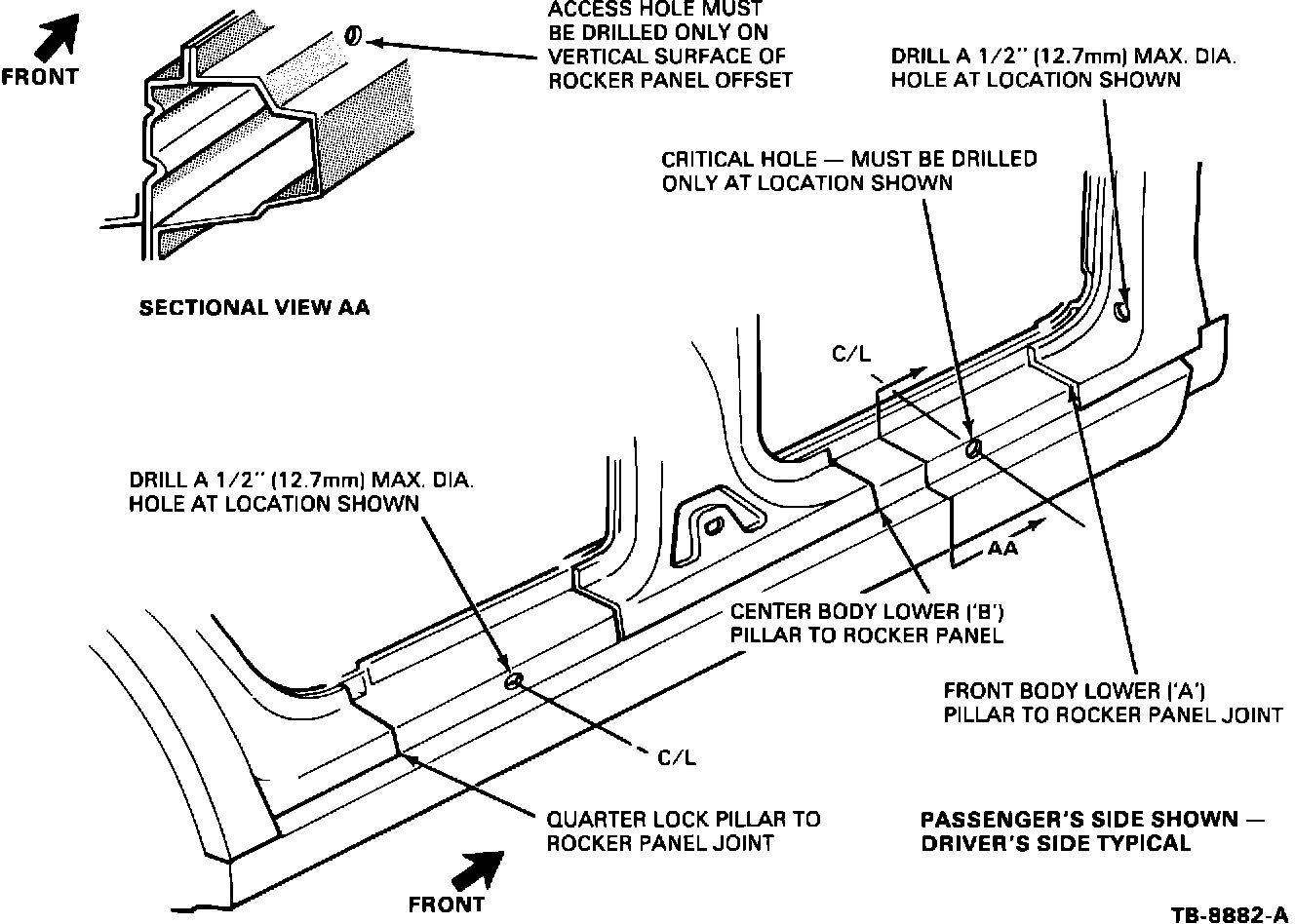

Figure 1:





ACTION: To avoid damage to these components when drilling the access holes for the application of a rustproofing compound, refer to Figure 1 for the new recommended drilling locations.

OTHER APPLICABLE ARTICLES: None
WARRANTY STATUS: "INFORMATION ONLY"
