Climate Control System - Manual Revision


9207ford03

Article No.
91-25B-18

12/20/91



^ SHOP MANUAL - 1987 - SECTION 36-40 - REMOVAL AND INSTALLATION PROCEDURES FOR A/C HEATER SYSTEM - MANUAL REVISED

^ SHOP MANUAL - 1988 - SECTION 36-40 - REMOVAL AND INSTALLATION PROCEDURES FOR A/C HEATER SYSTEM - MANUAL REVISED

^ SHOP MANUAL - 1989 - SECTION 36-40 - REMOVAL AND INSTALLATION PROCEDURES FOR A/C HEATER SYSTEM - MANUAL REVISED

^ SHOP MANUAL - 1990 - SECTION 36-13 - REMOVAL AND INSTALLATION PROCEDURES FOR A/C HEATER SYSTEM - MANUAL REVISED


FORD: 1987-90 MUSTANG


ISSUE: Removal and Installation procedures for Air Inlet Duct and Blower Housing Assembly, and Blower Motor and Wheel Assembly, require revision in the following Shop Manuals on the pages indicated:








^ 1987 Car Shop Manual, Chassis/Electrical, Volume B, Pages 36-40-21 and 23























^ 1989 Mustang Shop Manual, Pages 36-40-18, 19, 21 and 22











^ 1990 Mustang Shop Manual, Pages 36-13-13, 14 and 15

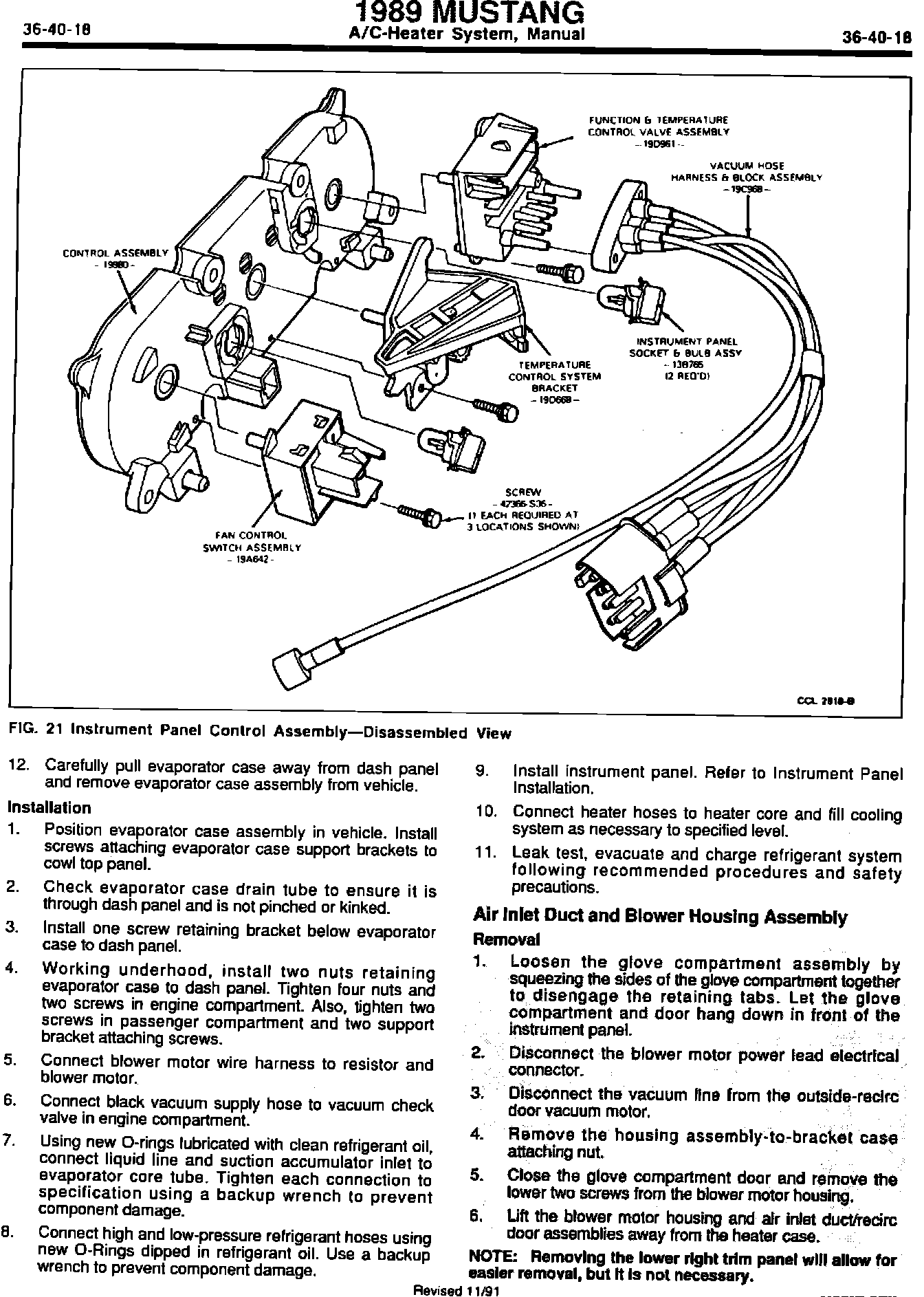

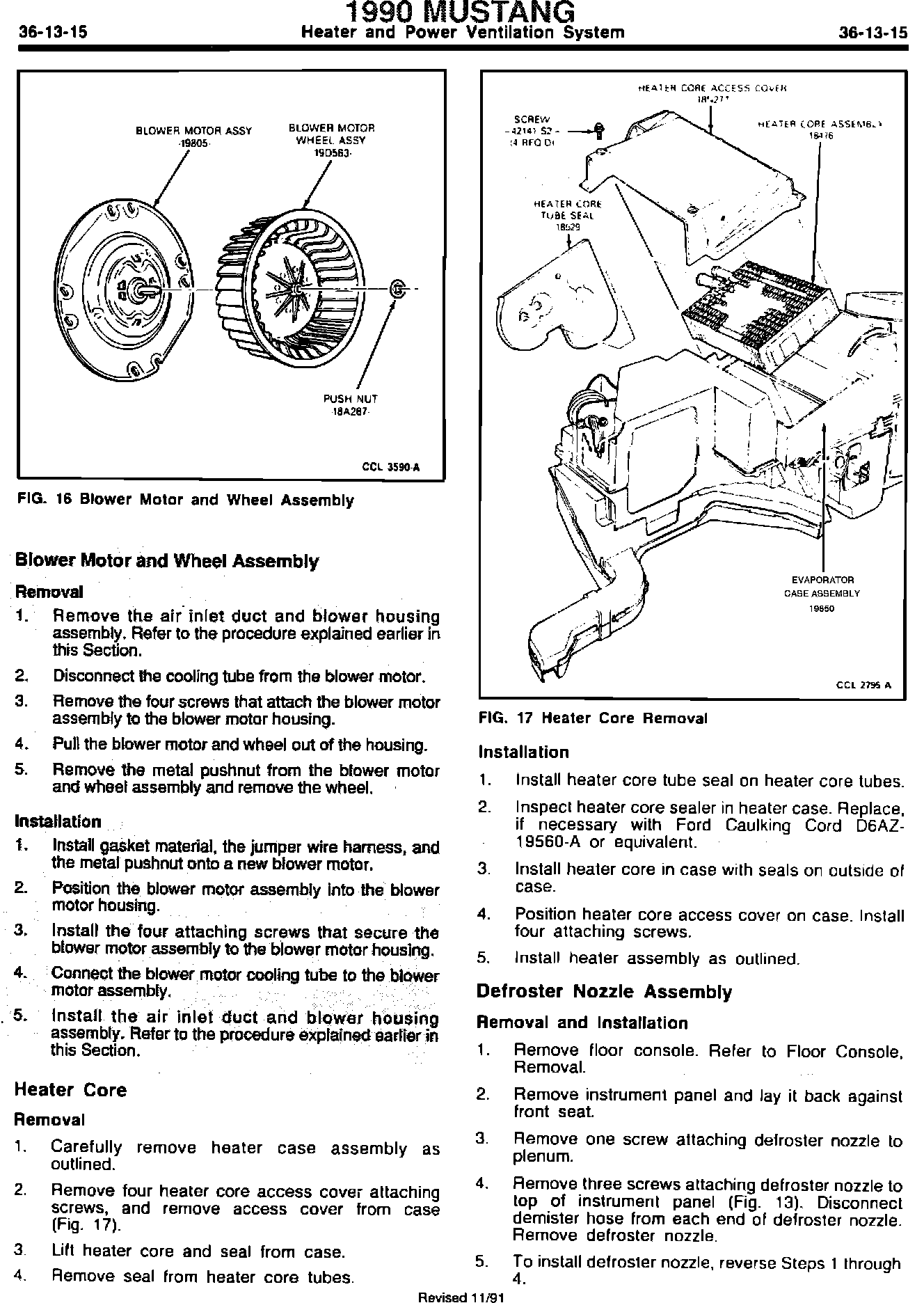

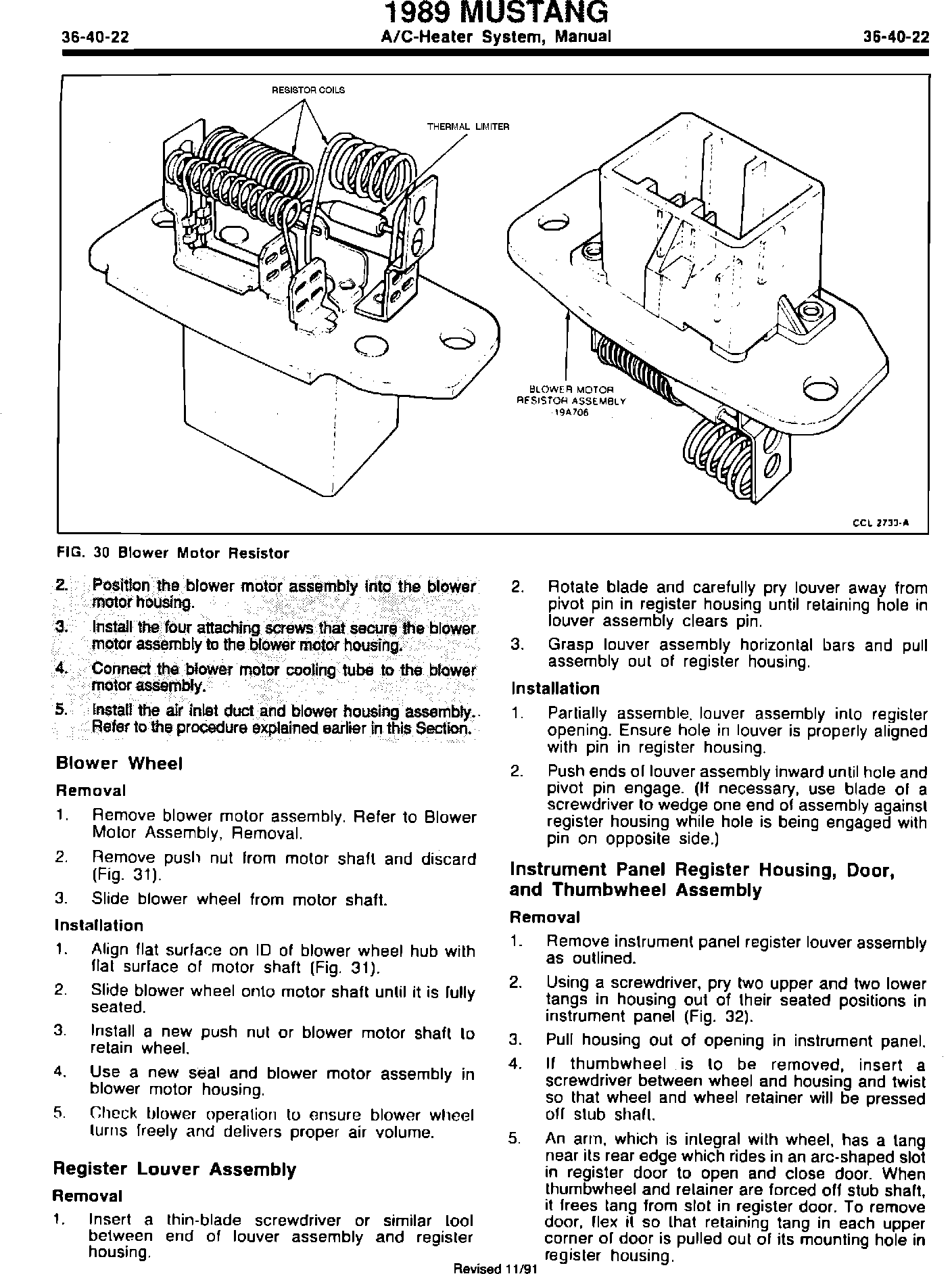

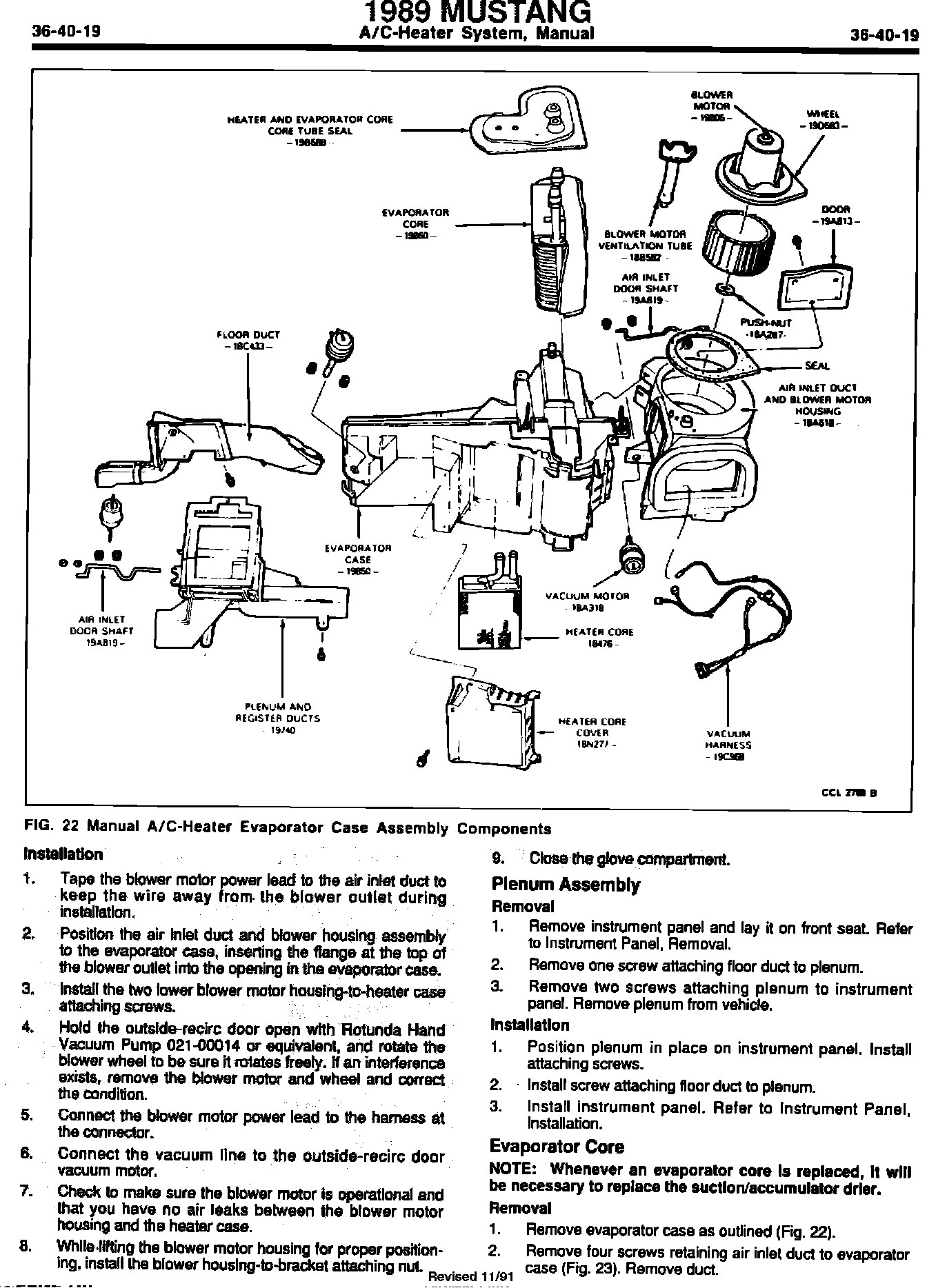

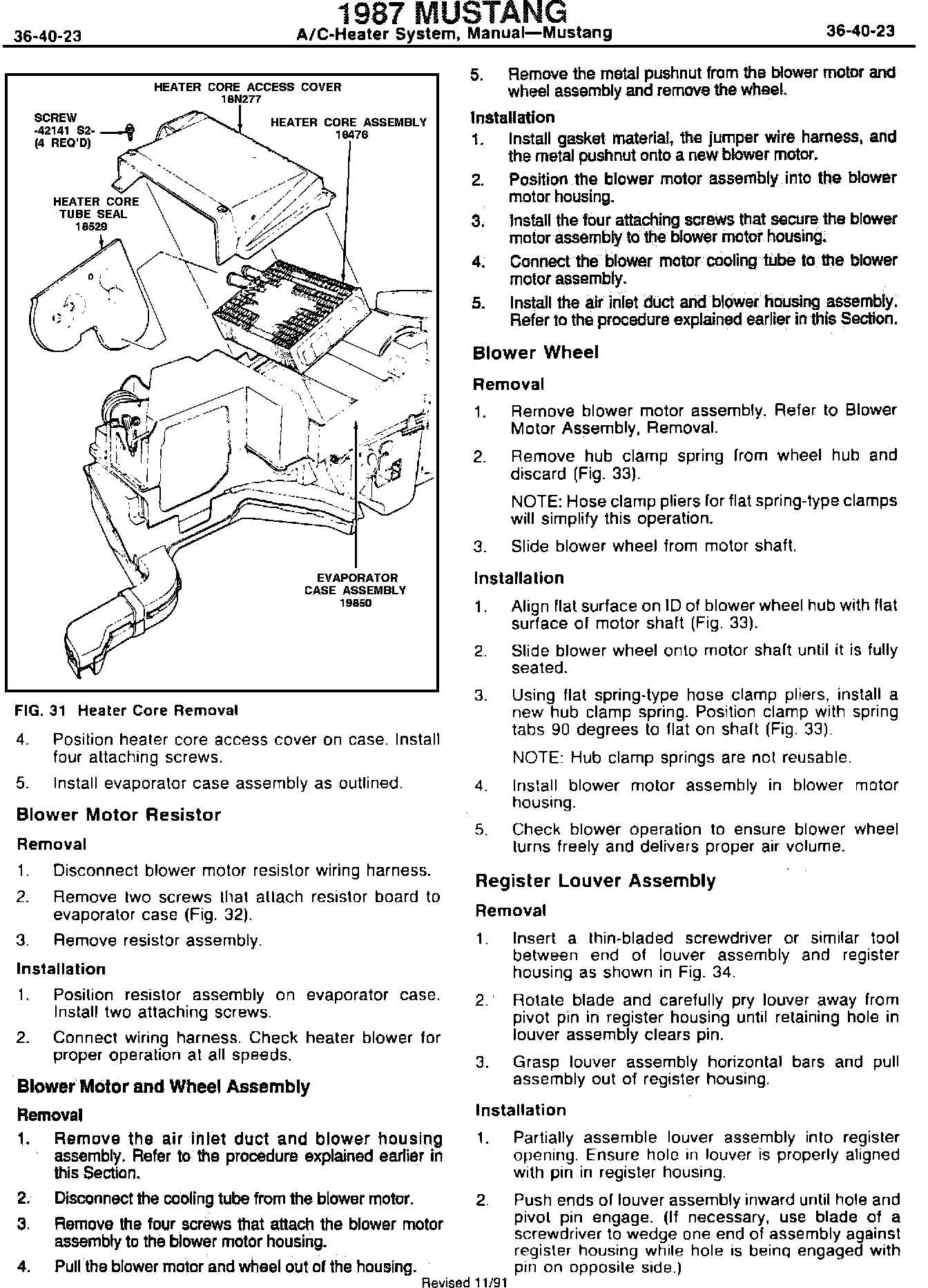

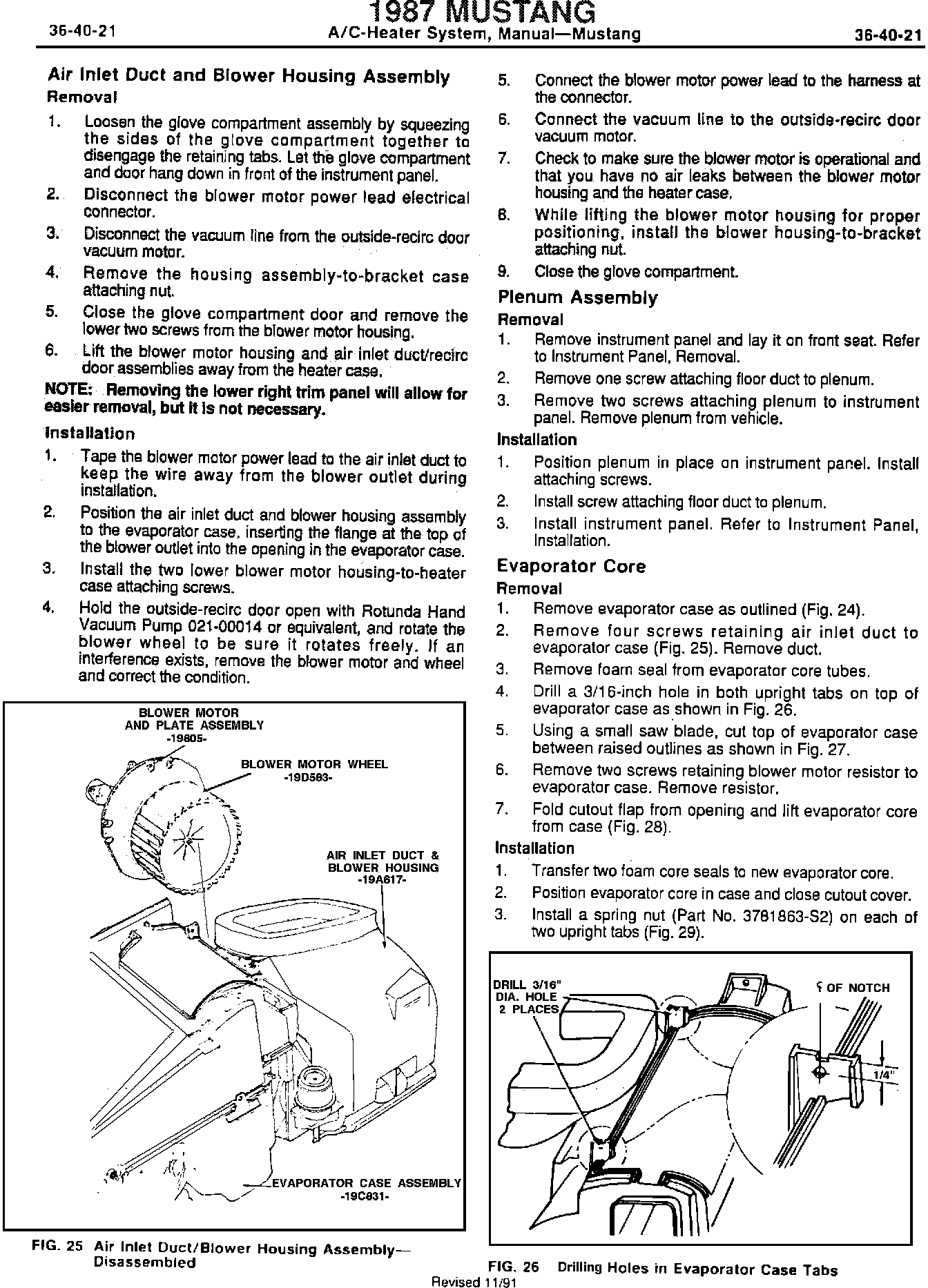

ACTION: Refer to the images in this TSB article for the revised procedures.

OTHER APPLICABLE ARTICLES: NONE
WARRANTY STATUS: INFORMATION ONLY
OASIS CODES: 290000
