A/C Controls - Troubleshooting Hints Revision


91ford10

Article No. 91-5B-18

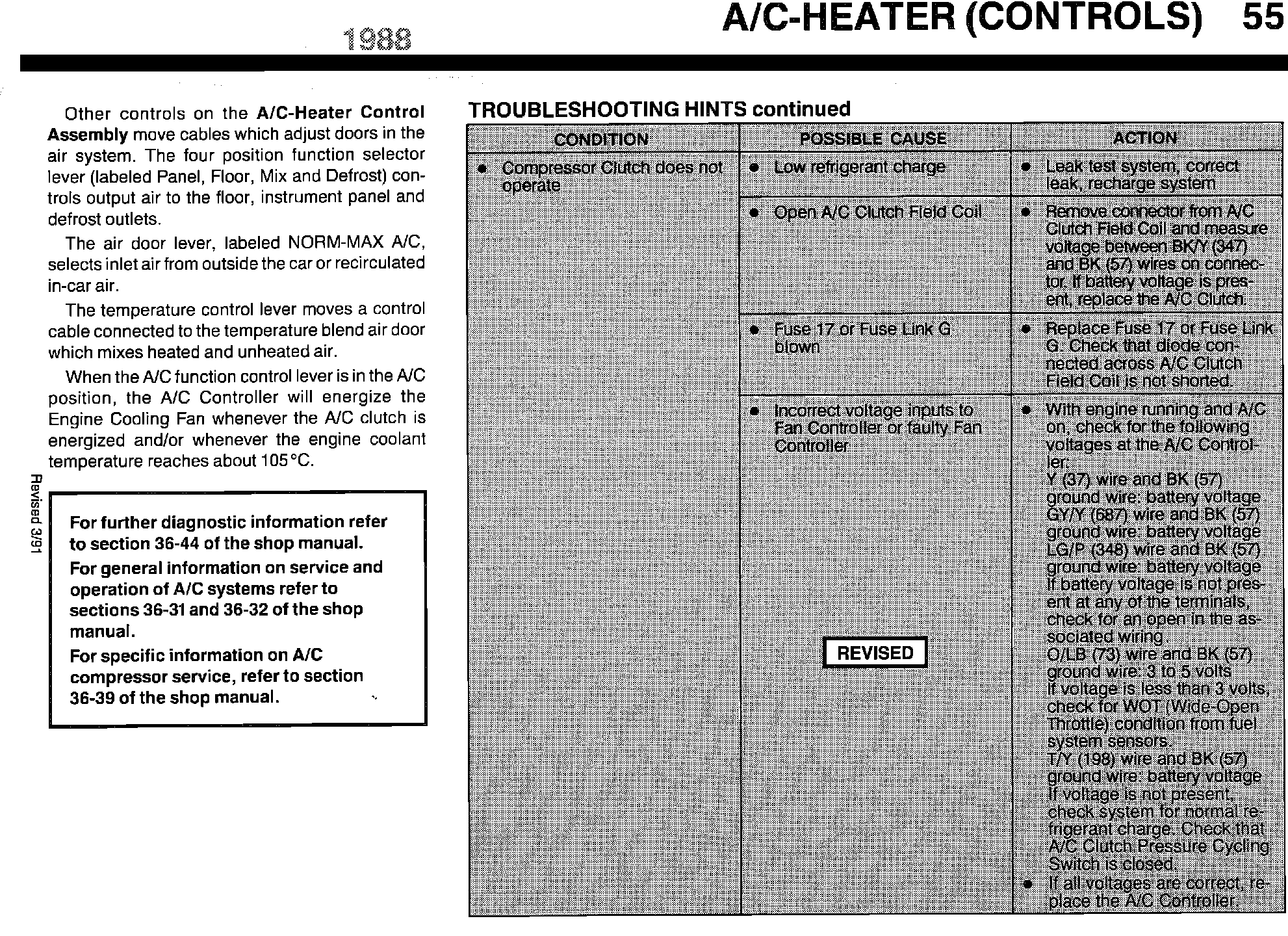

ELECTRICAL/VACUUM TROUBLESHOOTING MANUAL - 1988 - PAGE 55 - COMPRESSOR CLUTCH TROUBLESHOOTING HINTS REVISED


FORD: 1988 ESCORT


ISSUE: The Troubleshooting Hints for A/C-Heater (Controls) provided on Page 55 of the 1988 Escort Electrical/Vacuum Troubleshooting Manual have been revised.

ACTION: Refer to the pages following this TSB article for the updated Troubleshooting Hints.


OTHER APPLICABLE ARTICLES: NONE
WARRANTY STATUS: INFORMATION ONLY
OASIS CODES: 290000





TROUBLESHOOTING HINTS continued





56 A/C-HEATER (CONTROLS)
