Shift Indicator Circuit - Manual Revision


90ford15
ELECTRICAL/VACUUM TROUBLESHOOTING MANUAL - 1988 - PAGE 71 - CONNECTOR C203 ADDED TO

CIRCUIT # 19

Article No. 90-6B-44

LIGHT TRUCK: 1988 BRONCO II, RANGER







ISSUE: Circuit # 19 from the PRNDL lamp should show Connector C203 in the wiring circuit. The affected page is 71 of the 1988 Ranger/Bronco II EVTM.

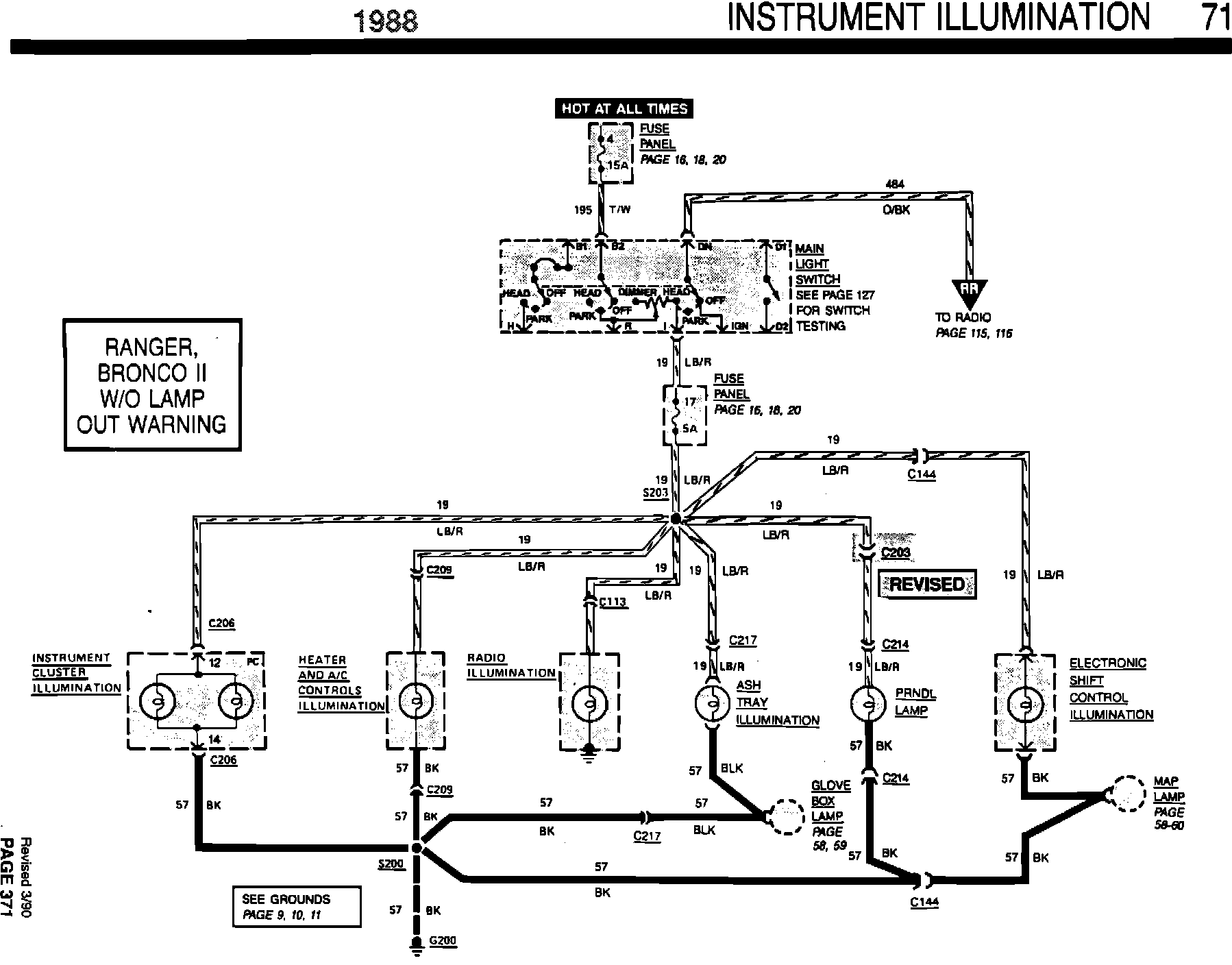

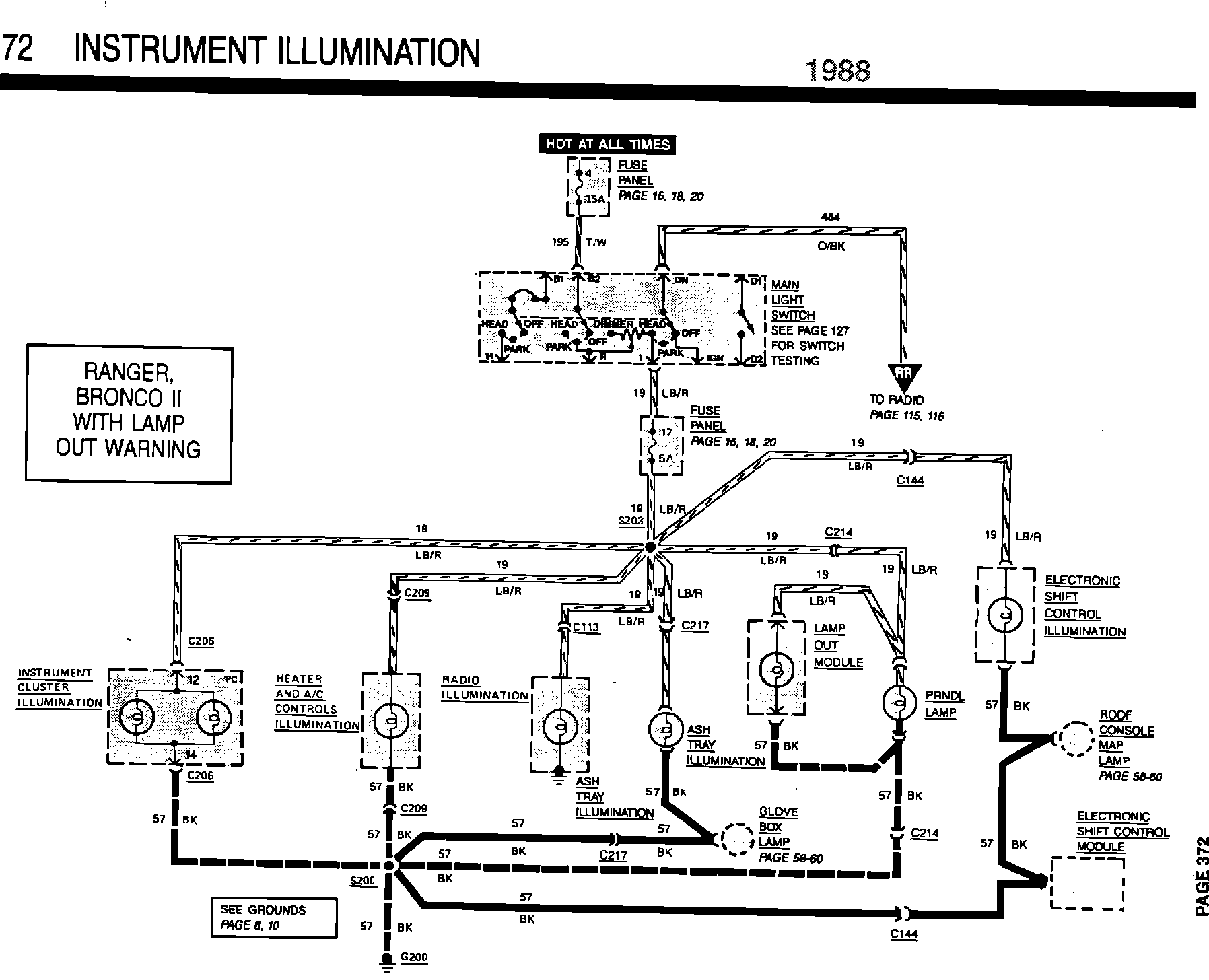

ACTION: Refer to the pages following this TSB article for the revised Instrument Illumination schematic.

OTHER APPLICABLE ARTICLES: None
WARRANTY STATUS: INFORMATION ONLY
OASIS CODES: 2800
