EEC IV Pinpoint Test QA5 - Manual Revision

90ford14
ENGINE/EMISSIONS DIAGNOSIS SHOP MANUAL-1989- PAGE 17-331 - STEP QA5 REVISED

Article No. 90-6B-30

FORD: 1989 CROWN VICTORIA, ESCORT, MUSTANG, TAURUS, TEMPO, THUNDERBIRD

LINCOLN-MERCURY: 1989 CONTINENTAL, COUGAR, GRAND MARQUIS, MARK VII, SABLE,

TOPAZ, TOWN CAR

LIGHT TRUCK: 1989 AEROSTAR, BRONCO II, BRONCO, ECONOLINE, F-150, F-250, F-350, RANGER

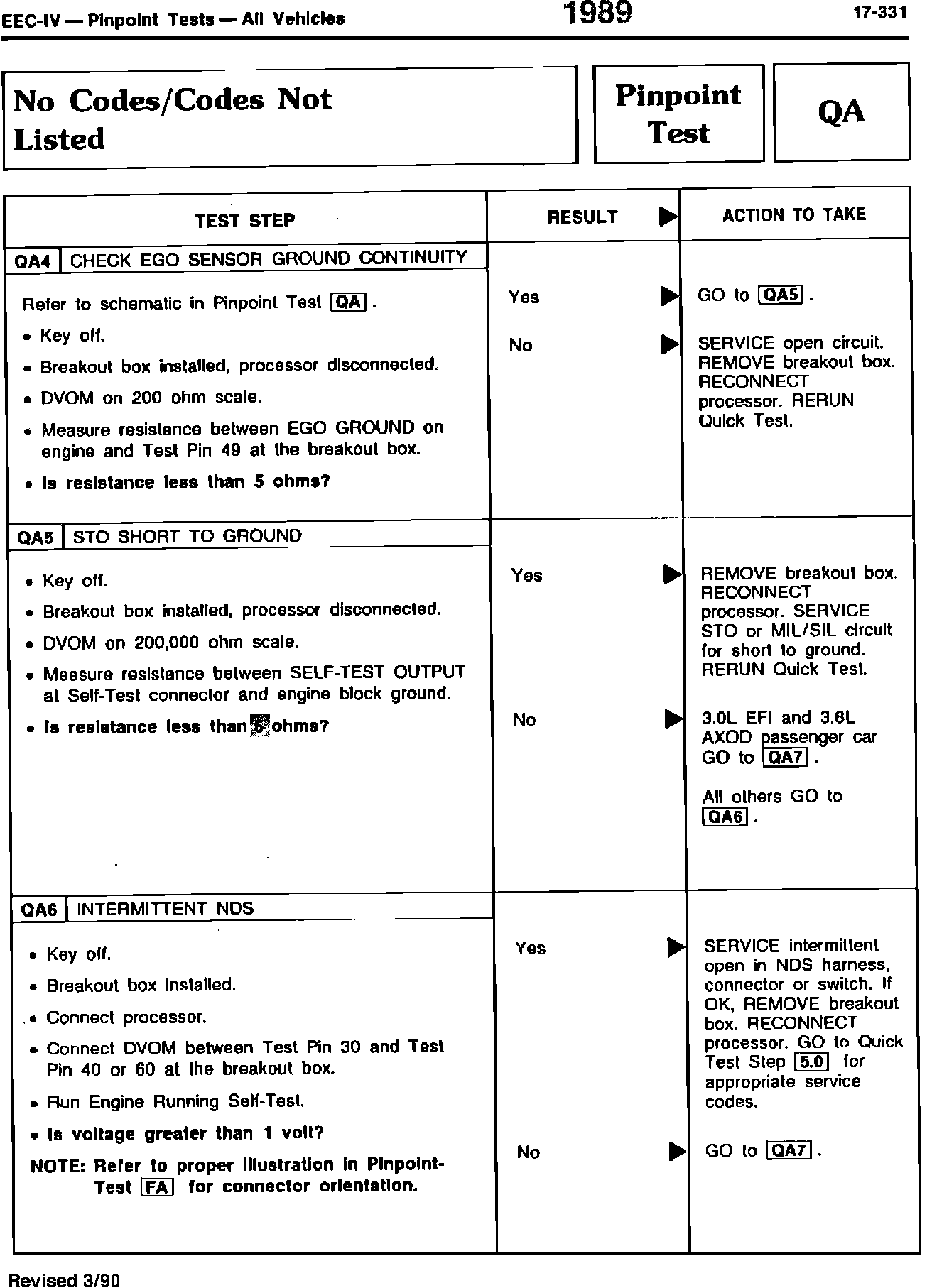

ISSUE: Test Step QA5 on page 17-331 of the 1989 Engine Emission Diagnosis Manual is incorrect. Step QA5 indicates "Is resistance less than 10,000 ohms?". The correct reading should be: "Is resistance less than 5 ohms?".

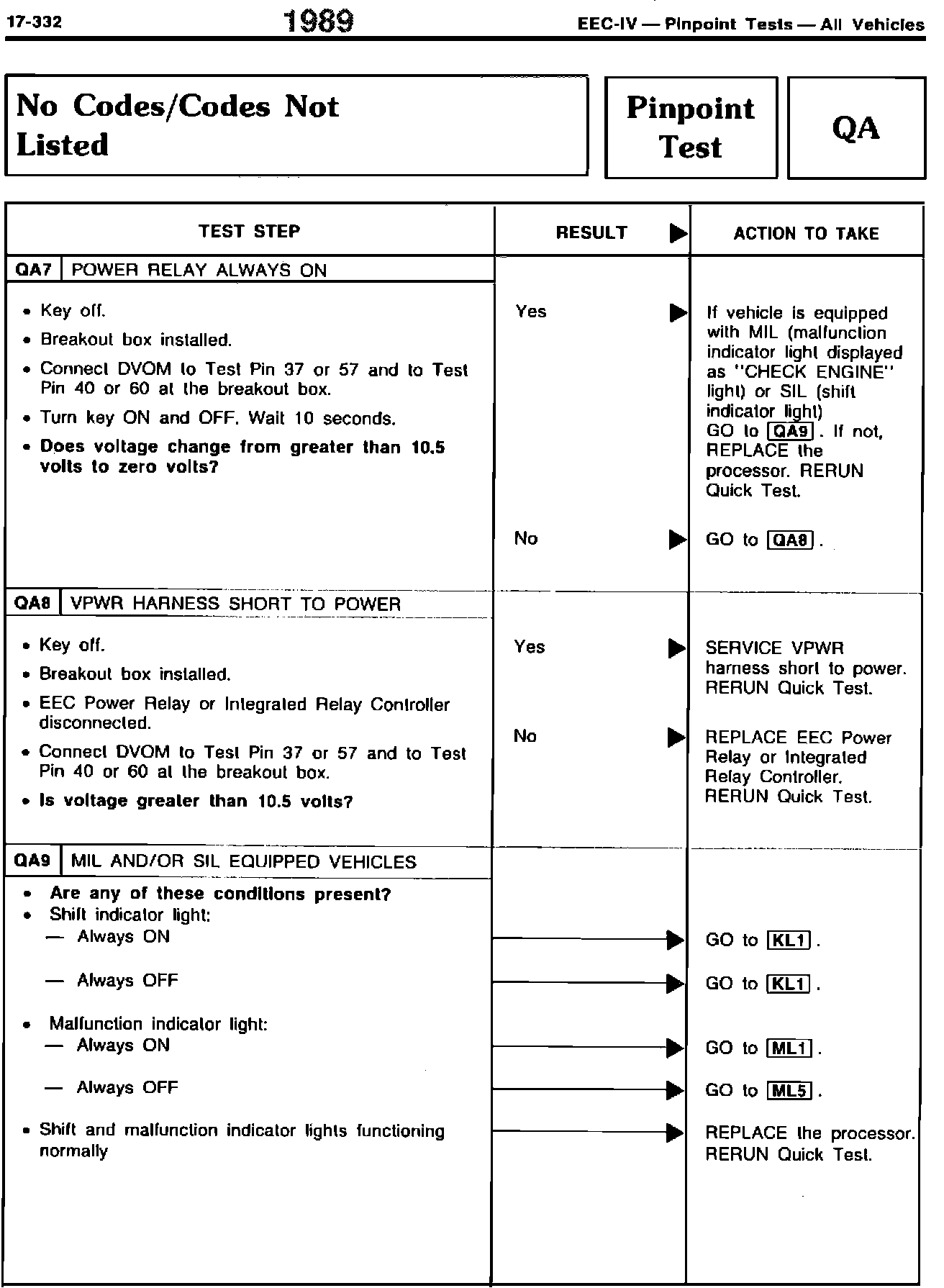

ACTION: Refer to the pages following this TSB article for the revised Test Step information.

OTHER APPLICABLE ARTICLES: None
WARRANTY STATUS: INFORMATION ONLY
OASIS CODES: 2800
