A/T - AXOD Removal/Installation Revision


90ford13
SHOP MANUAL - 1988 - SECTION 17 - REMOVAL AND INSTALLATION PROCEDURES FOR 3.8L ENGINE AXOD TRANSAXLE ADDED

Article No. 90-6B-20

FORD: 1988 TAURUS

LINCOLN-MERCURY: 1988 SABLE










ISSUE: The AXOD Removal and Installation procedures for the 3.8L engine where not available at the time of publication for the 1988 Taurus/Sable Shop Manual

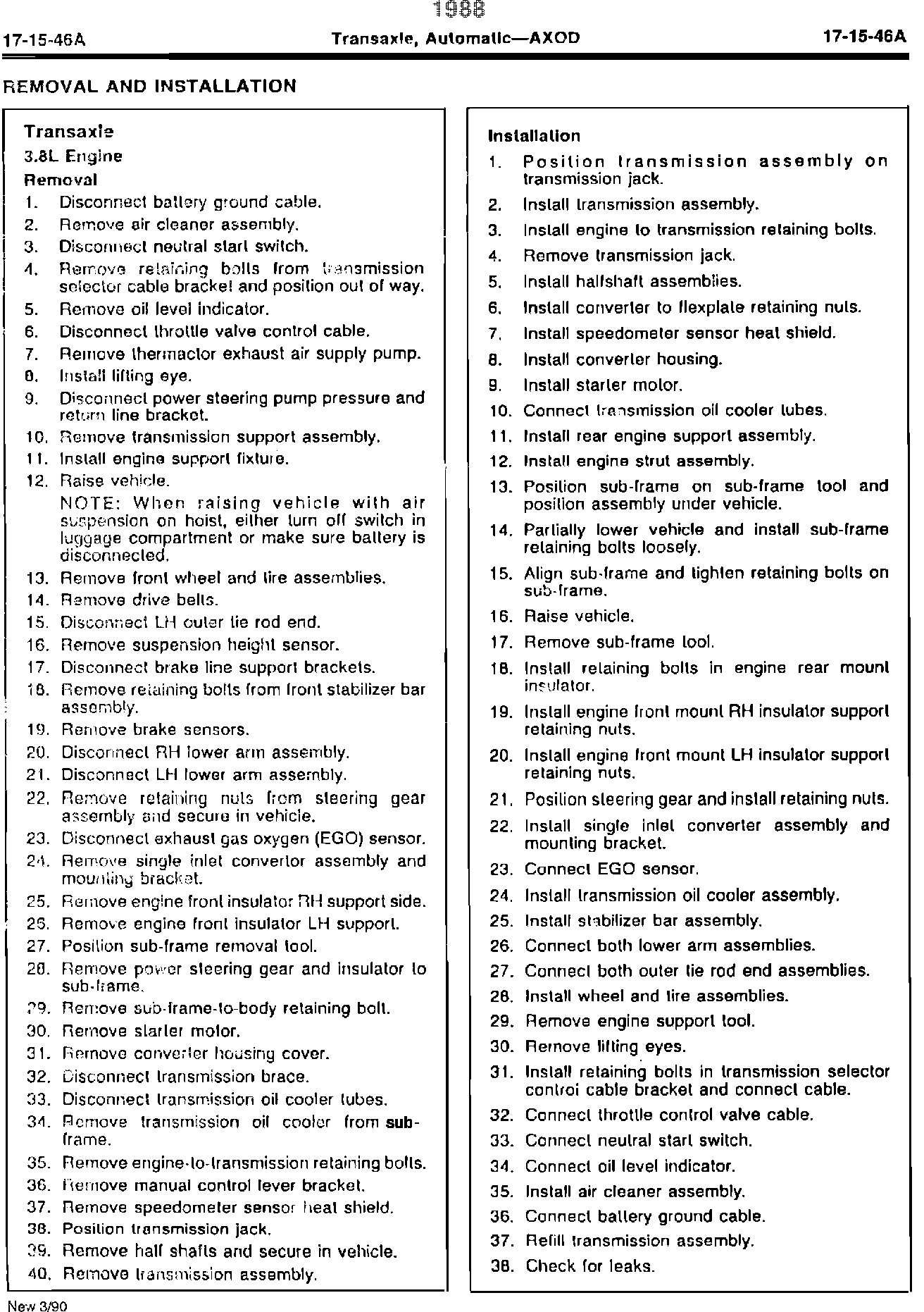

ACTION: Refer to the pages following this TSB article for the AXOD transaxle Removal and Installation procedures for the 3.8L engine.

OTHER APPLICABLE ARTICLES: None
WARRANTY STATUS: INFORMATION ONLY
OASIS CODES: 5800
