Wheel Speed Sensor

Fig. 27 Front Speed Sensor Replacement:

Front
1. Remove wheel and tire assembly.
2. Remove two retaining bolts, then remove speed sensor from knuckle.

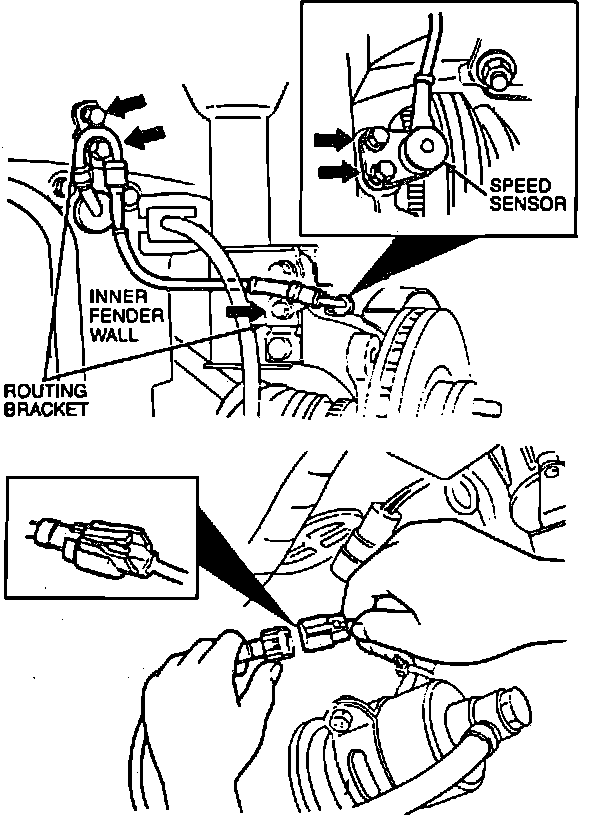

3. Remove routing bracket from strut assembly, Fig. 96.
4. Disconnect wiring harness, then remove speed sensor.
5. Reverse procedure to install, noting the following:
a. Left and right speed sensors are not interchangeable.
b. Torque routing bracket and speed sensor to 12-17 ft. lbs.

Fig. 28 Rear Speed Sensor Replacement:

Rear
1. Remove wheel and tire assembly.
2. Remove retaining bolt and speed sensor from knuckle.

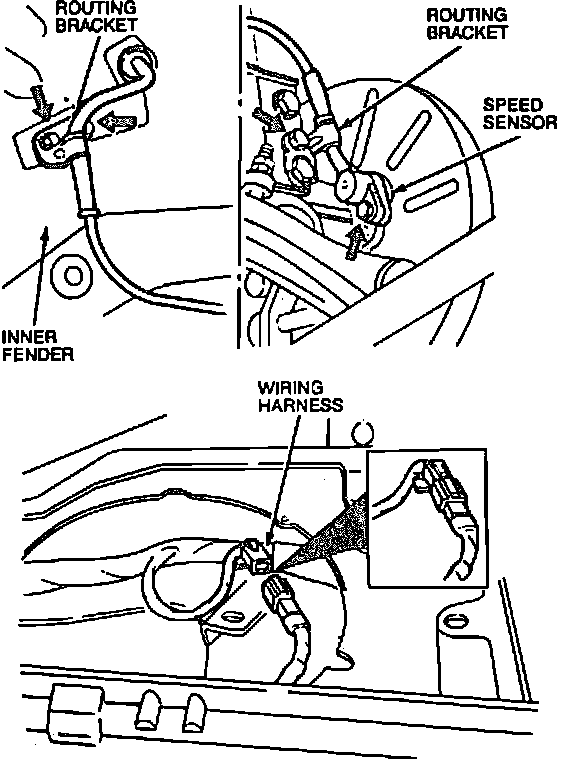

3. Remove routing bracket from inner fenderwell, Fig. 97.
4. Remove interior panels as necessary to gain access to wiring harness, if necessary.
5. Disconnect wiring harness, then remove speed sensor.
6. Reverse procedure to install, noting the following:
a. Left and right speed sensors are not interchangeable.
b. Torque routing bracket to 12-17 ft. lbs.
c. Torque speed sensor to 8-19 ft. lbs.
