Quick Test 5.0C - Switch Monitor Test

1. Key ON Engine OFF.

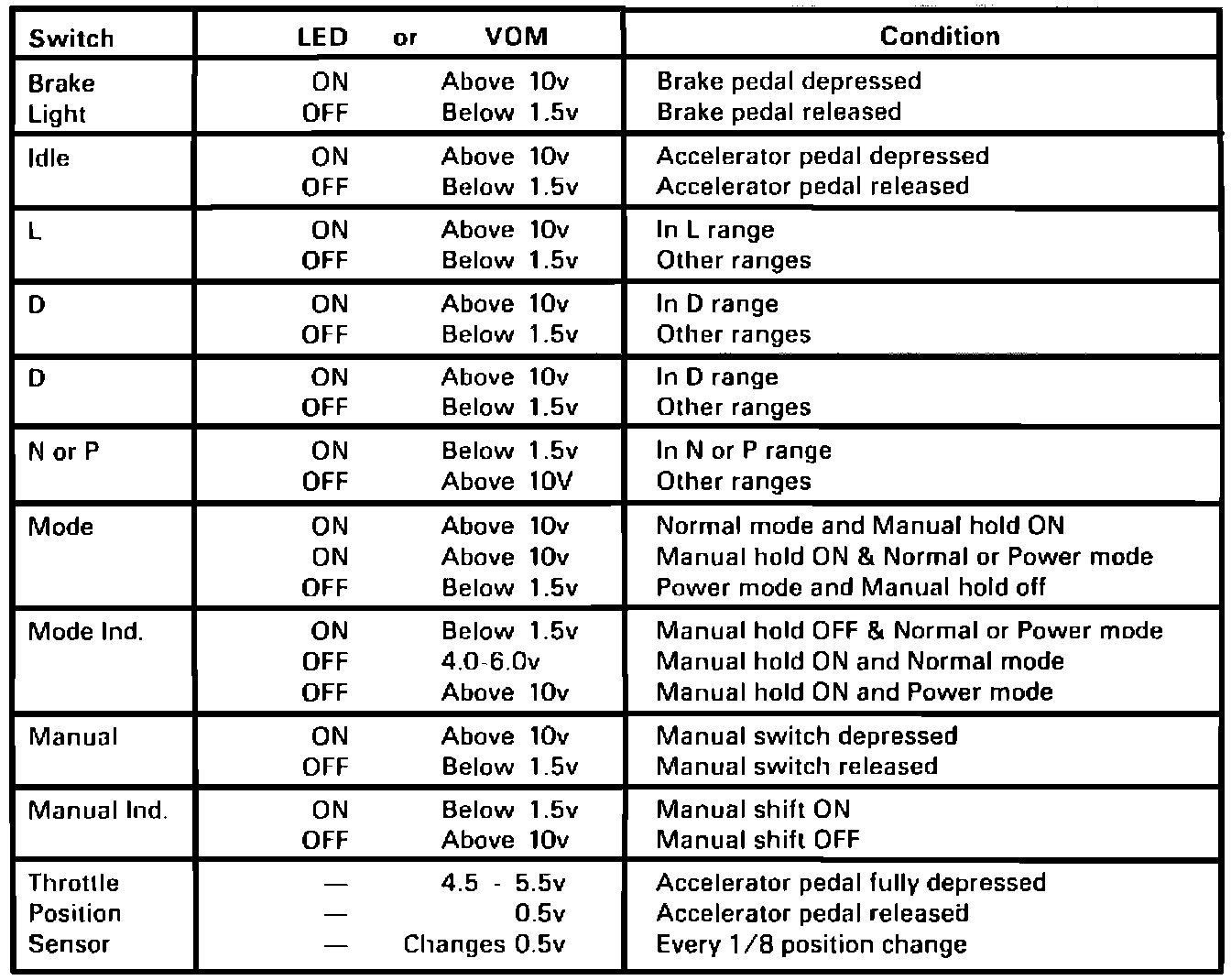

Switch Monitor Test Chart A:

2. Check each switch under conditions specified in Chart A.

NOTE: These conditions should also be verified during engine running testing.

3. Go to Part 5.OD.
