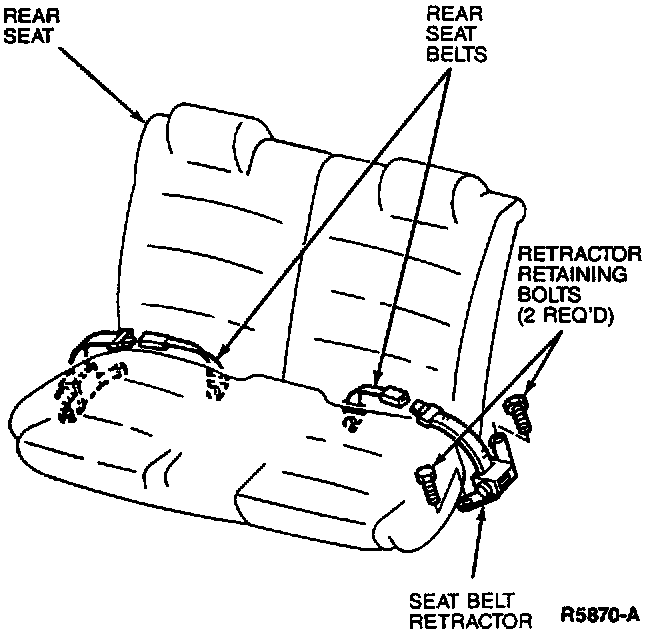

Rear Retractor Assembly
REMOVAL 1.
Remove the rear seat.
2.
Remove quarter trim.
3.
Remove both bolts securing retractor to floor and remove retractor.
INSTALLATION 1.
Position retractor onto floor.
2.
Install both bolts securing retractor onto floor. Tighten bolts to
39-55 Nm (28-39 ft lbs).
3.
Install quarter trim panel.
4.
Install rear seat.
