Radio Schematic - Revised

90ford19 ELECTRICAL/VACUUM TROUBLESHOOTING MANUAL - 1989 - PAGES 201 AND 204 - RADIO (PREMIUM SOUND WITH EPC/JBL) SCHEMATIC REVISED
Article No. 90-12B-7
FORD: 1989 TAURUS

LINCOLN-MERCURY: 1989 SABLE

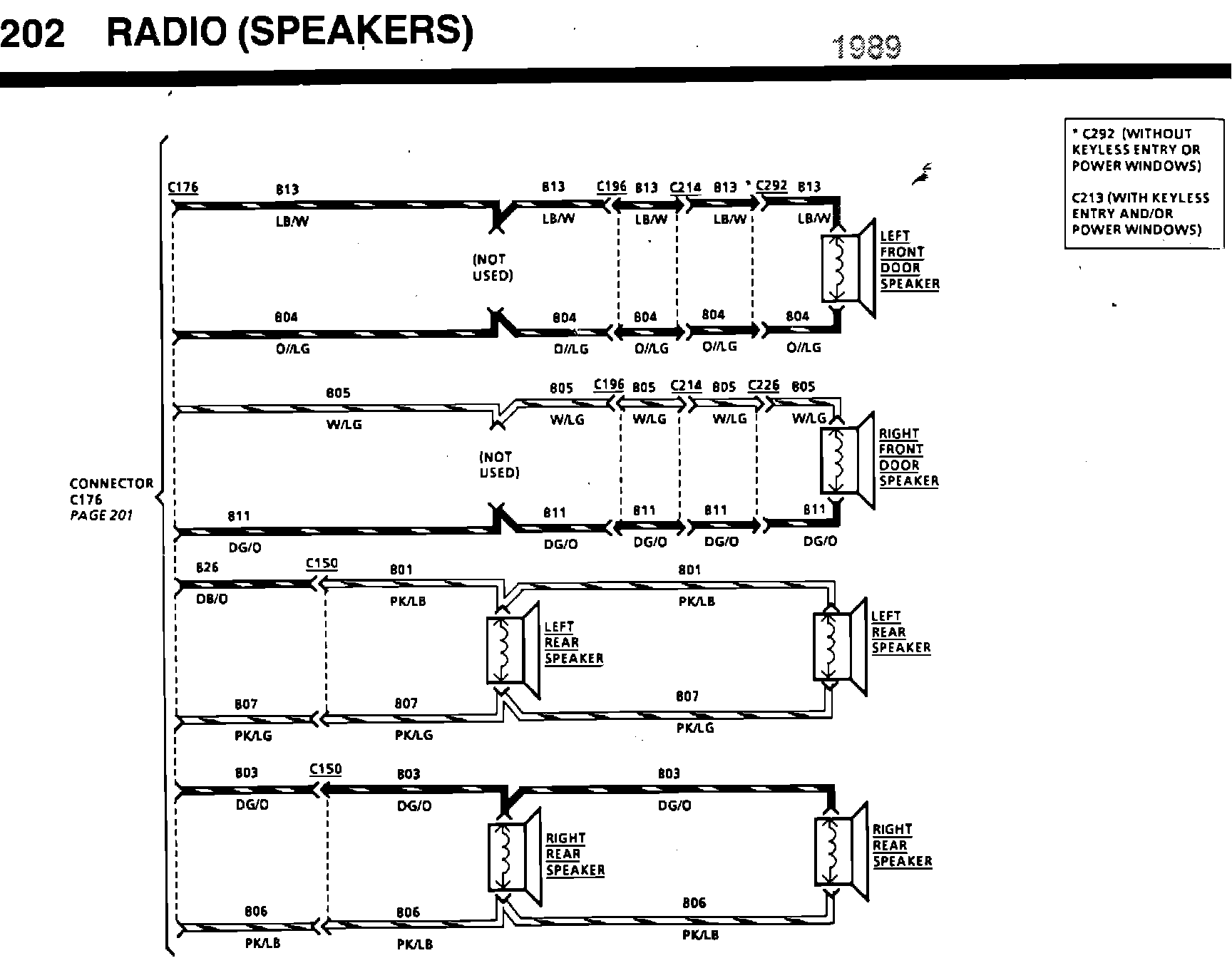

ISSUE: The radio connector # 354 pinouts, of the Premium Sound with EPC/JBL, on pages 201 and 204 of the 1989 Taurus/Sable EVTM are incomplete.

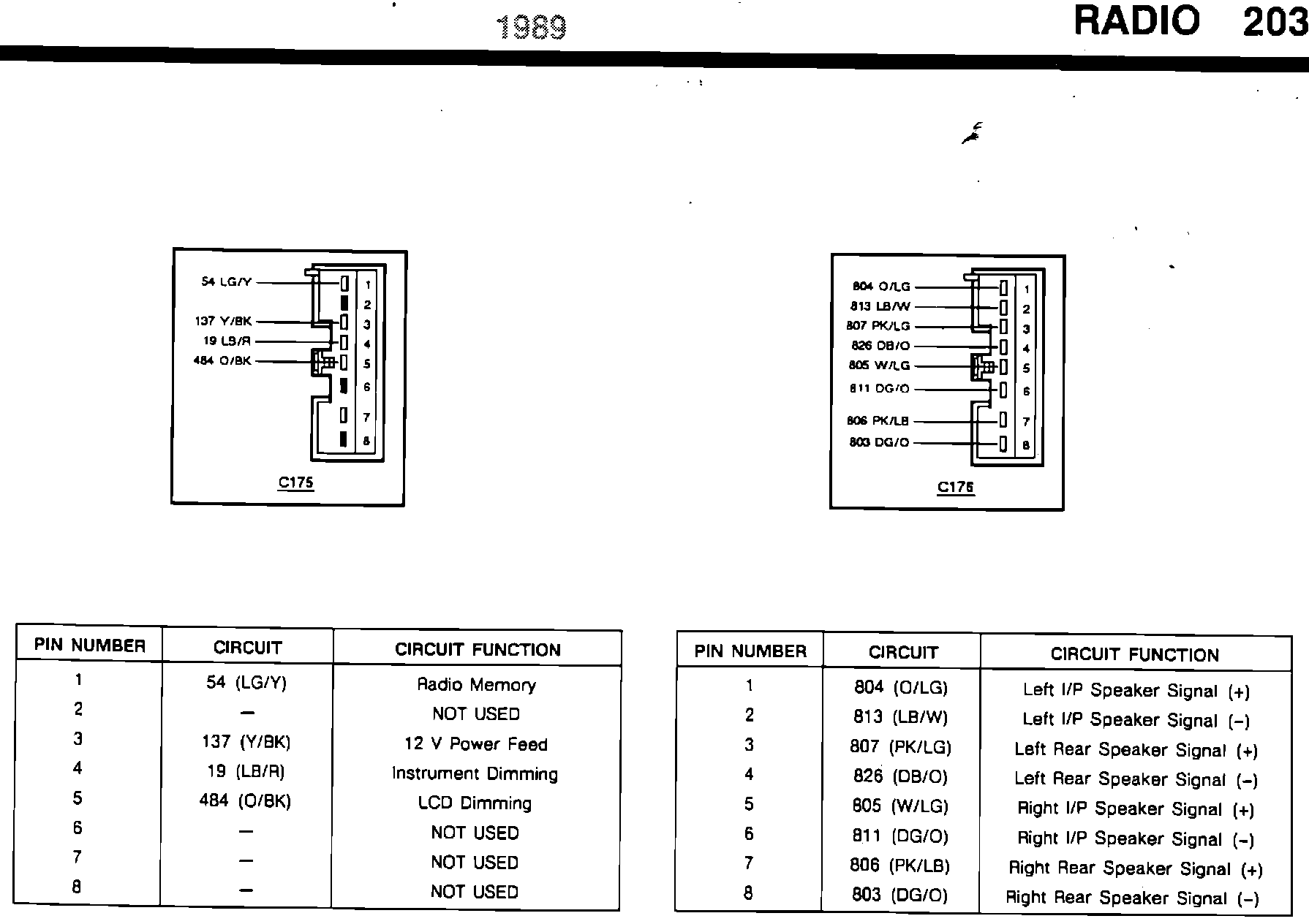

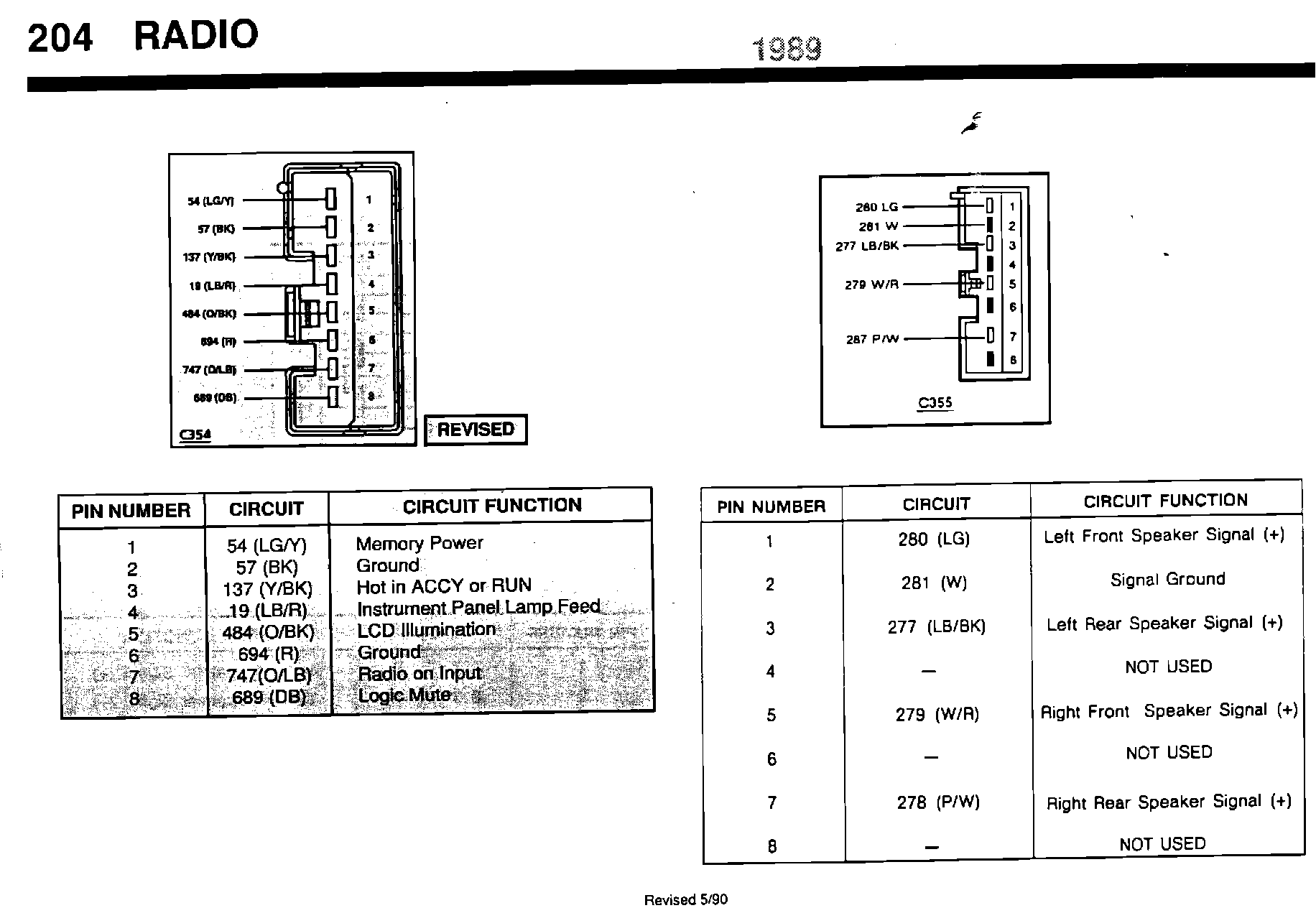

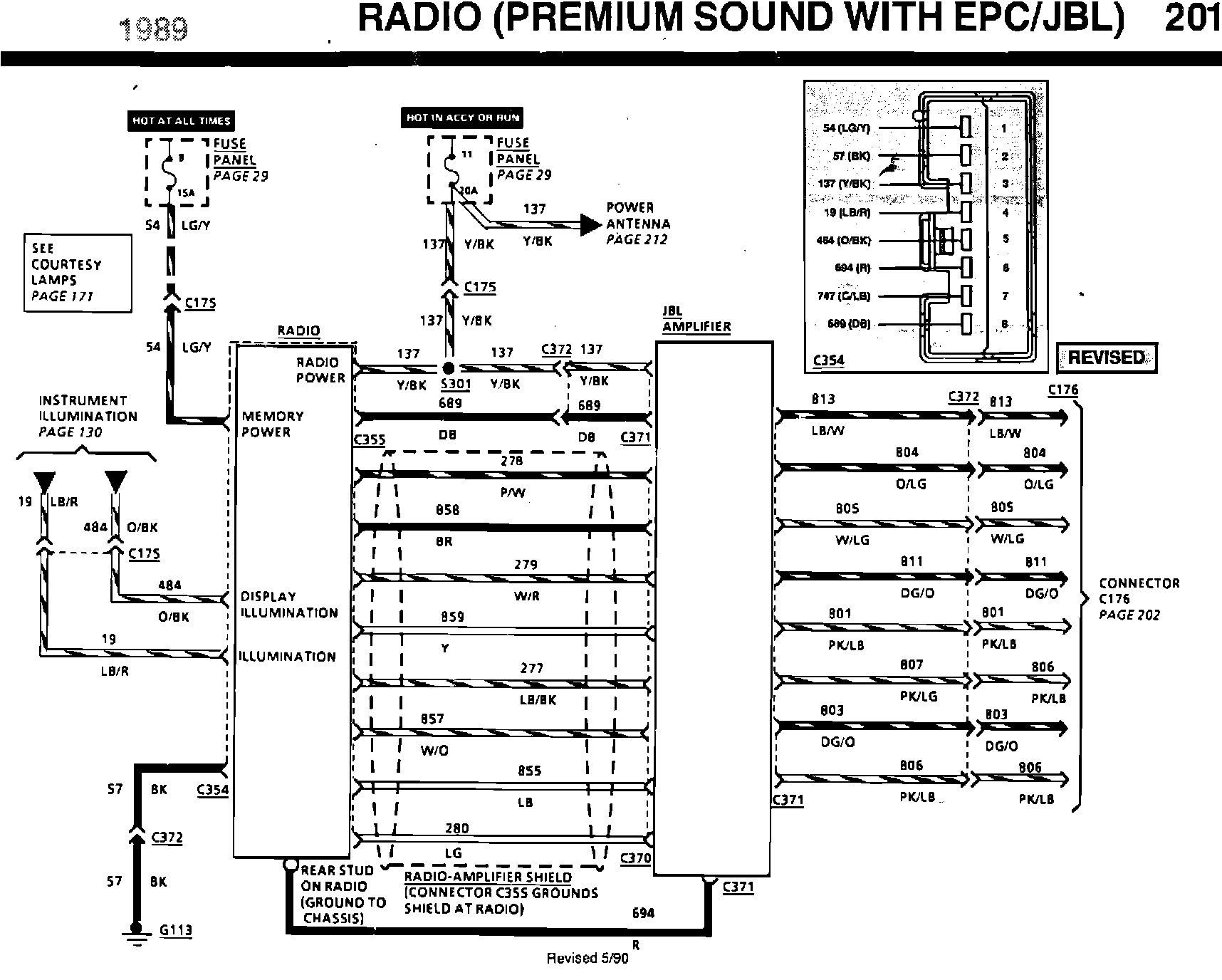

ACTION: Refer to the pages following this TSB article for the revised schematics with complete pinouts.
OTHER APPLICABLE ARTICLES: None
WARRANTY STATUS: INFORMATION ONLY
OASIS CODES: 2800
