EEC IV Test Step TA3 Check Fuse - Revised

Article No.
89-25A-4

12/15/89

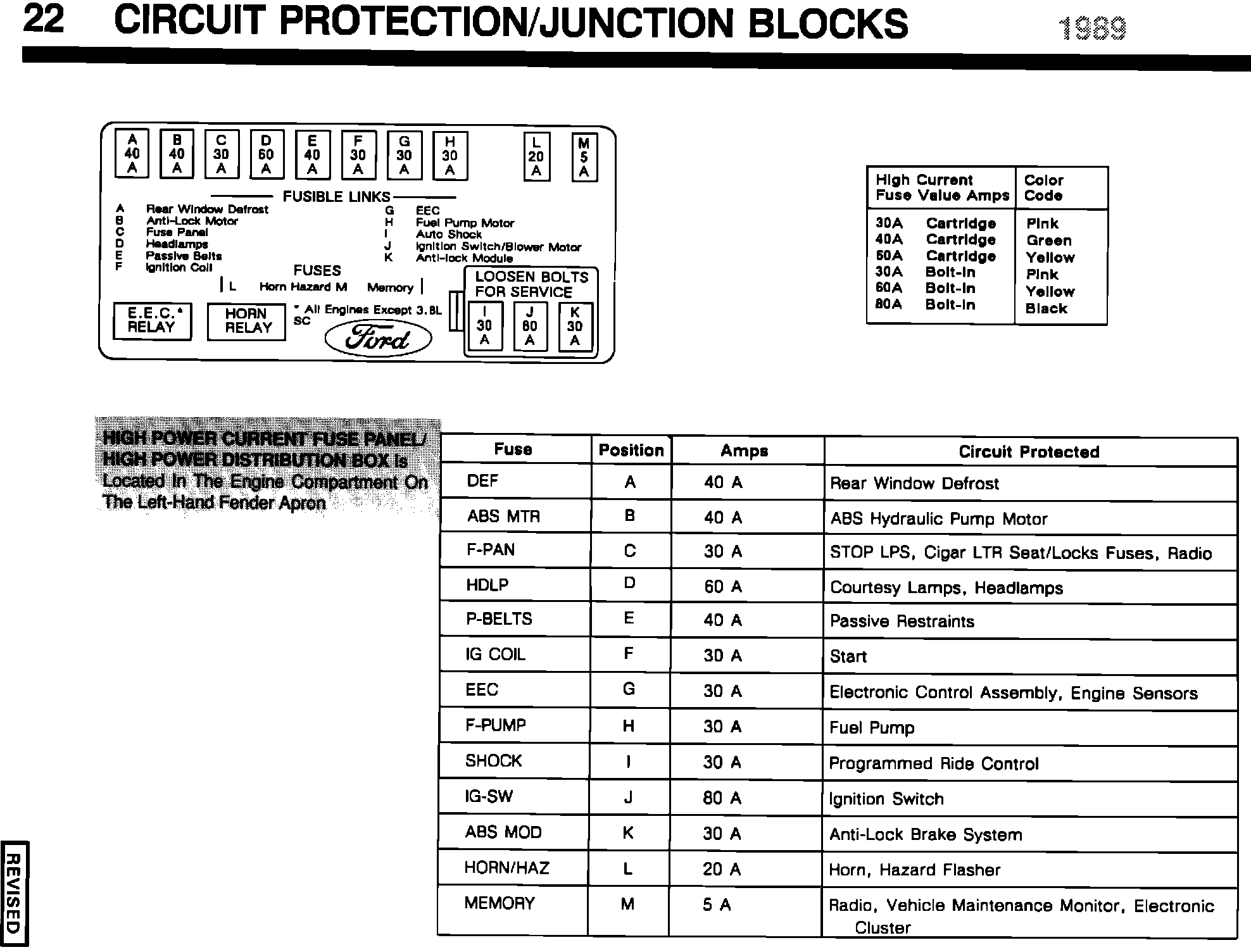

^ ELECTRICAL/VACUUM TROUBLESHOOTING MANUAL - 1989 - PAGE 22 - CIRCUIT PROTECTION/JUNCTION BLOCKS - FUSE PANEL DISTRIBUTION BOX TITLE REVISED

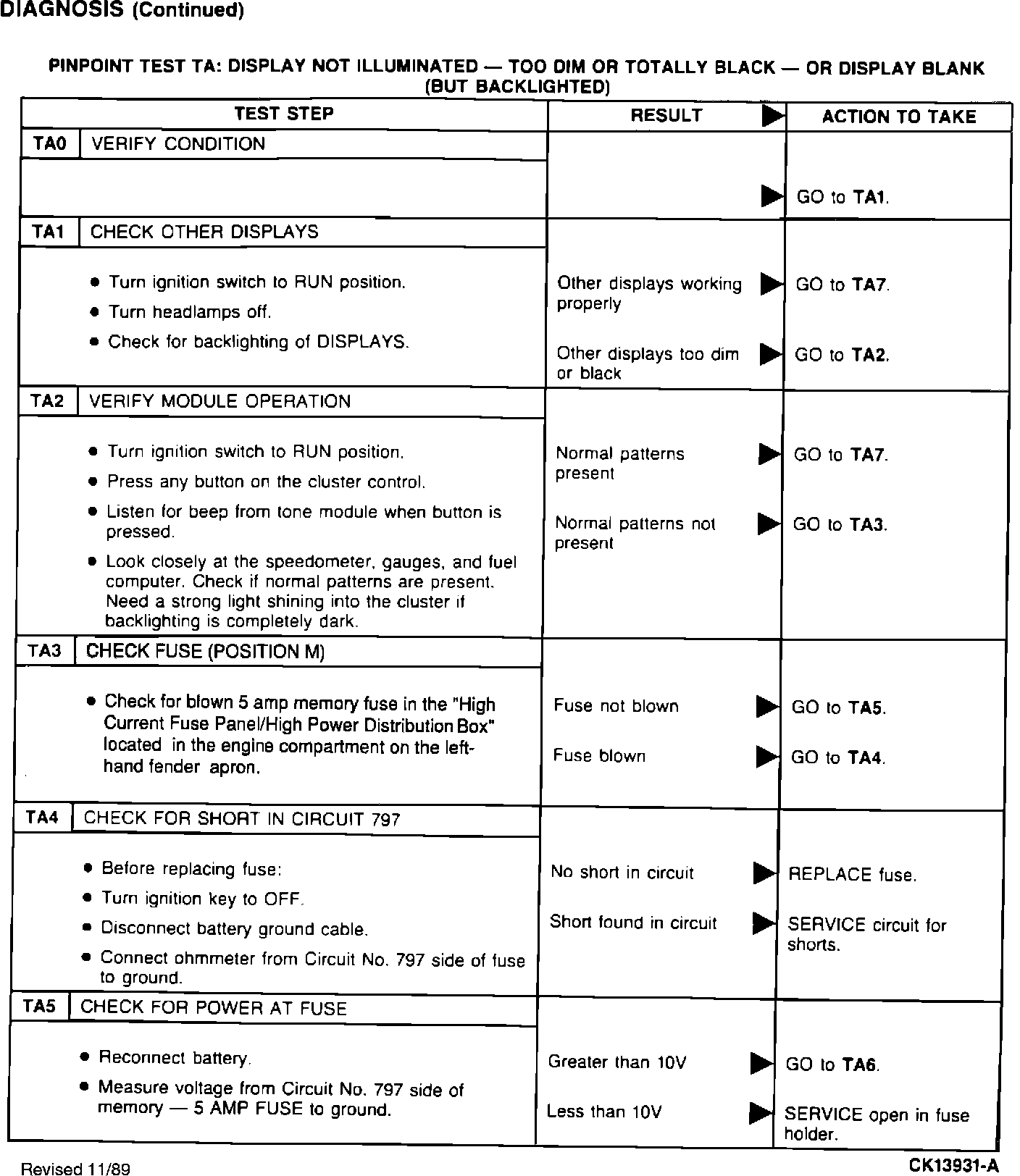

^ SHOP MANUAL - 1989 - PAGE 33-05-11 - TEST STEP TA3, CHECK FUSE - REVISED

FORD:
1989 THUNDERBIRD

LINCOLN-MERCURY:
1989 COUGAR


ISSUE:
Page 22 of the 1989 Thunderbird/Cougar Electrical/Vacuum Troubleshooting Manual and page 33-05-11 of the 1989 Thunderbird/Cougar Shop Manual, have been revised to better describe the circuits protected by the "Memory" fuse.














ACTION:
Refer to the pages in this TSB article for the revised circuit protection junction block and diagnostic procedures.

OTHER APPLICABLE ARTICLES: NONE
WARRANTY STATUS: INFORMATION ONLY
OASIS CODES: 2800
