EEC System Electrical Schematic - Manual Revision


90ford15
ENGINE/EMISSIONS DIAGNOSIS SHOP MANUAL - 1990 - PAGE 16-7 - ELECTRICAL SCHEMATIC FOR EEC SYSTEM REVISED

Article No. 90-6B-40

LIGHT TRUCK: 1990 BRONCO II, RANGER

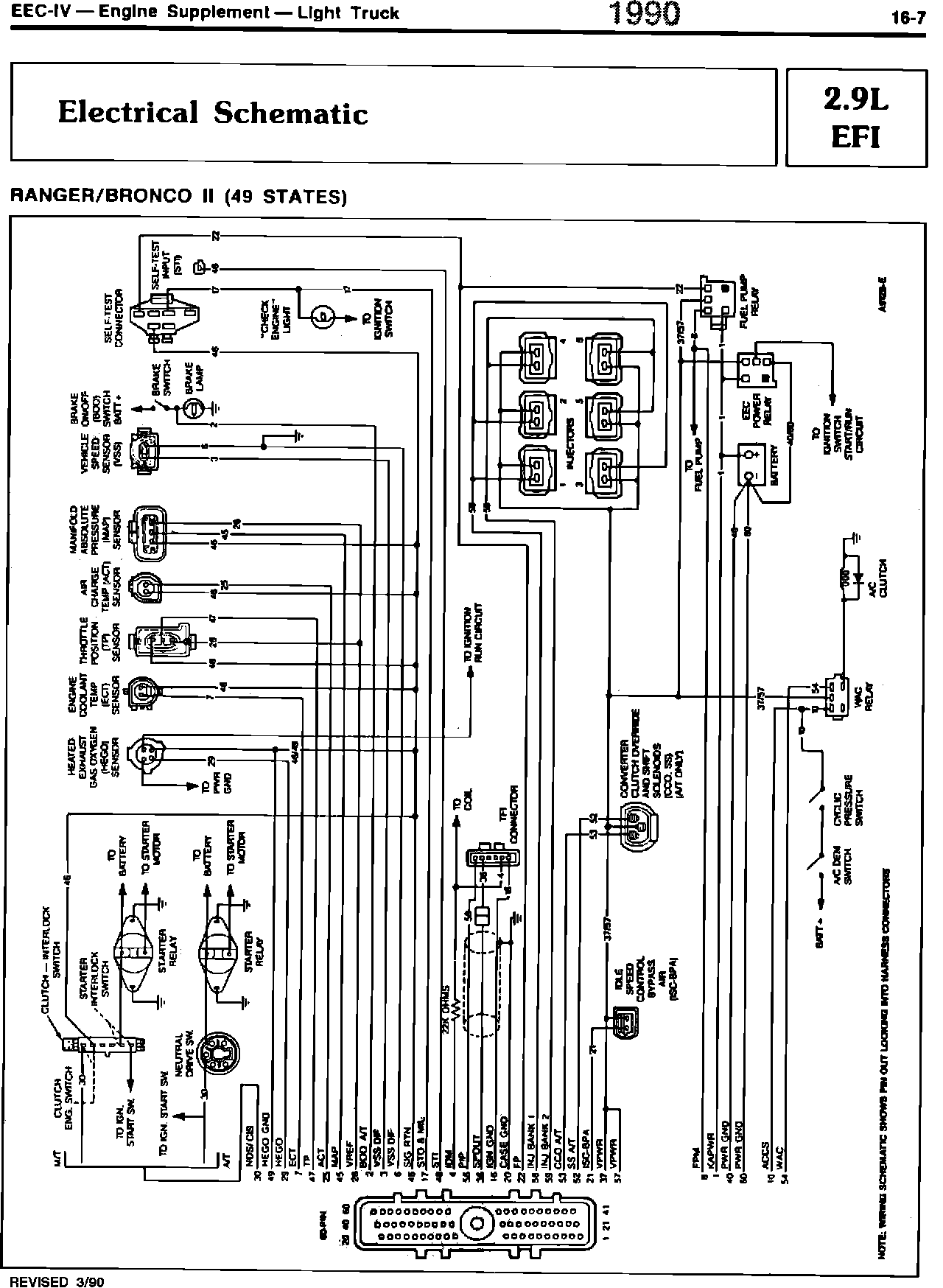

ISSUE: The illustration of the Ranger/Bronco II (49 States) EEC-IV Engine Supplement Electrical Schematic shown on page 16-7 in the Engine Emissions Diagnosis Shop Manual is incorrect.

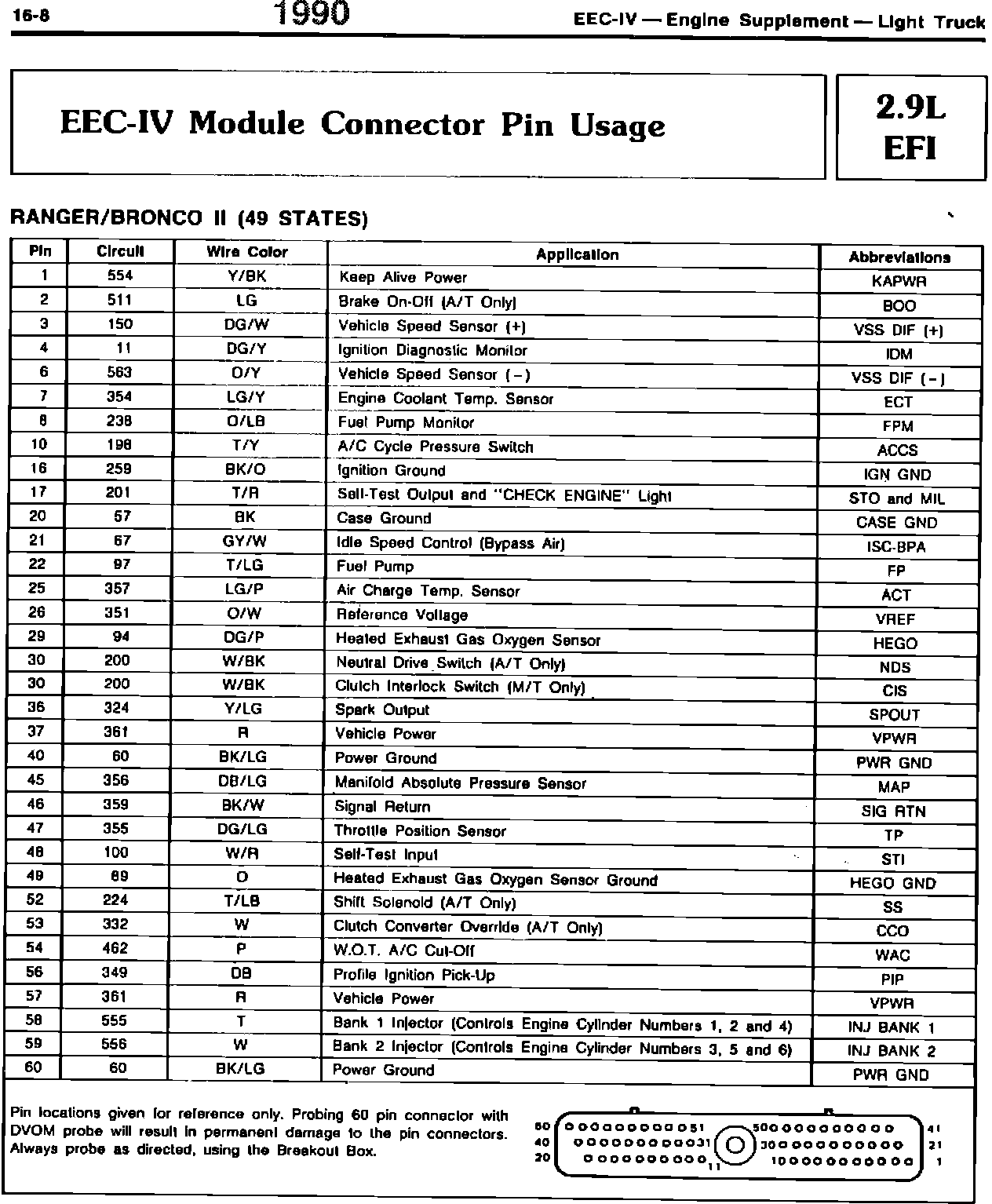

ACTION: Refer to the pages following this TSB article for the correct schematic.

OTHER APPLICABLE ARTICLES: None
WARRANTY STATUS: INFORMATION ONLY
OASIS CODES: 2800
