Trailer Circuit Fuse Links Chart - Revison

90ford20
^ SHOP MANUAL - 1989 - PAGE 34-31-9 - FUSE LINKS FOR TRAILER CIRCUIT PROTECTION REVISED IN CHART

^ SHOP MANUAL - 1990 - PAGE 34-31-8 - FUSE LINKS FOR TRAILER CIRCUIT PROTECTION REVISED IN CHART
Article No. 90-12B-12
LIGHT TRUCK: 1989-90 BRONCO, F SUPER DUTY, F-150, F-250, F-350









ISSUE: The two 16 gauge fuse links for the trailer circuit protection shown on page 34-31-9 of the 1989 F-Series, Bronco, F-Super Duty Truck Shop Manual and also on page 34-31-8 of the 1990 F-Series, Bronco, F-Super Duty Truck Shop Manual are incorrect.

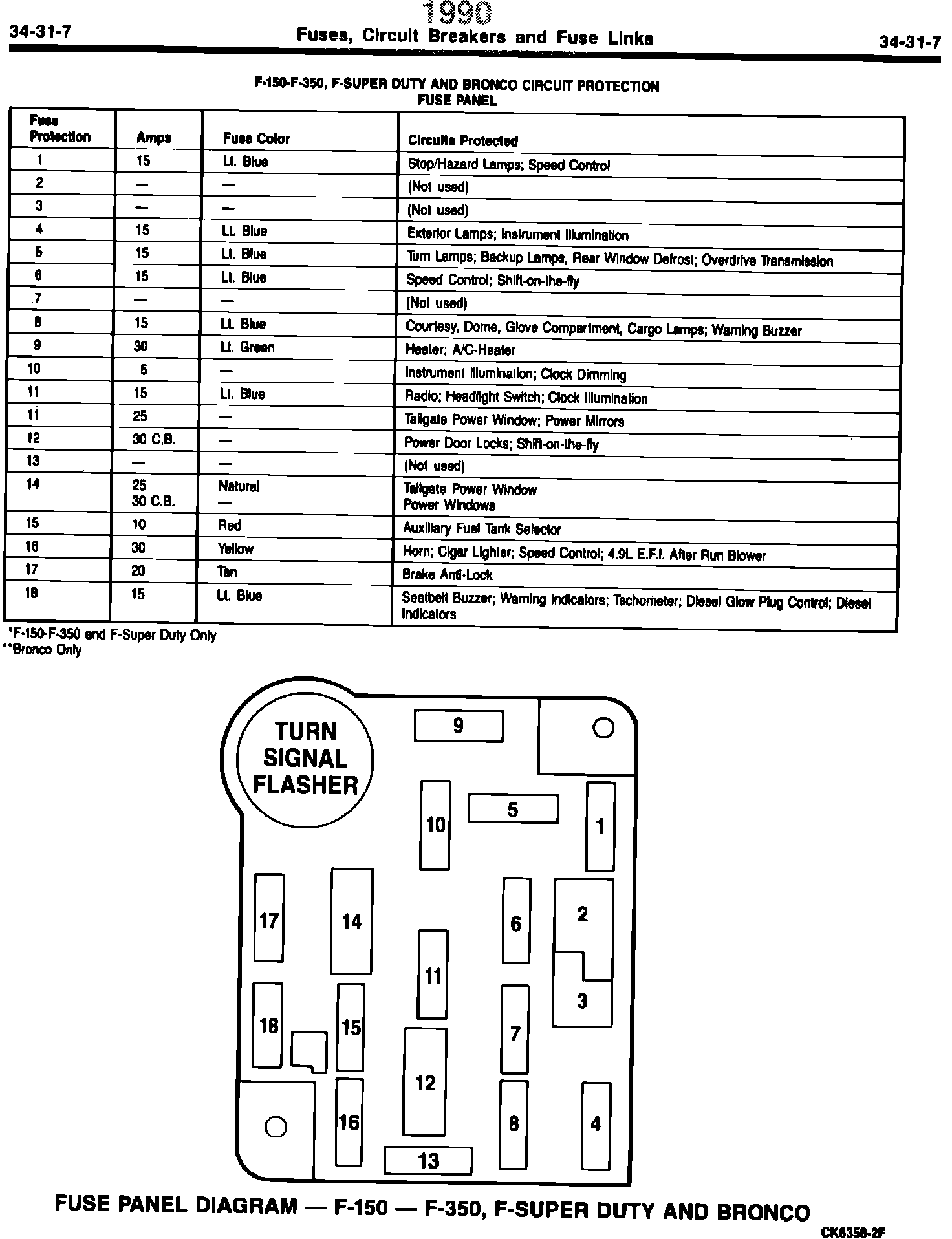

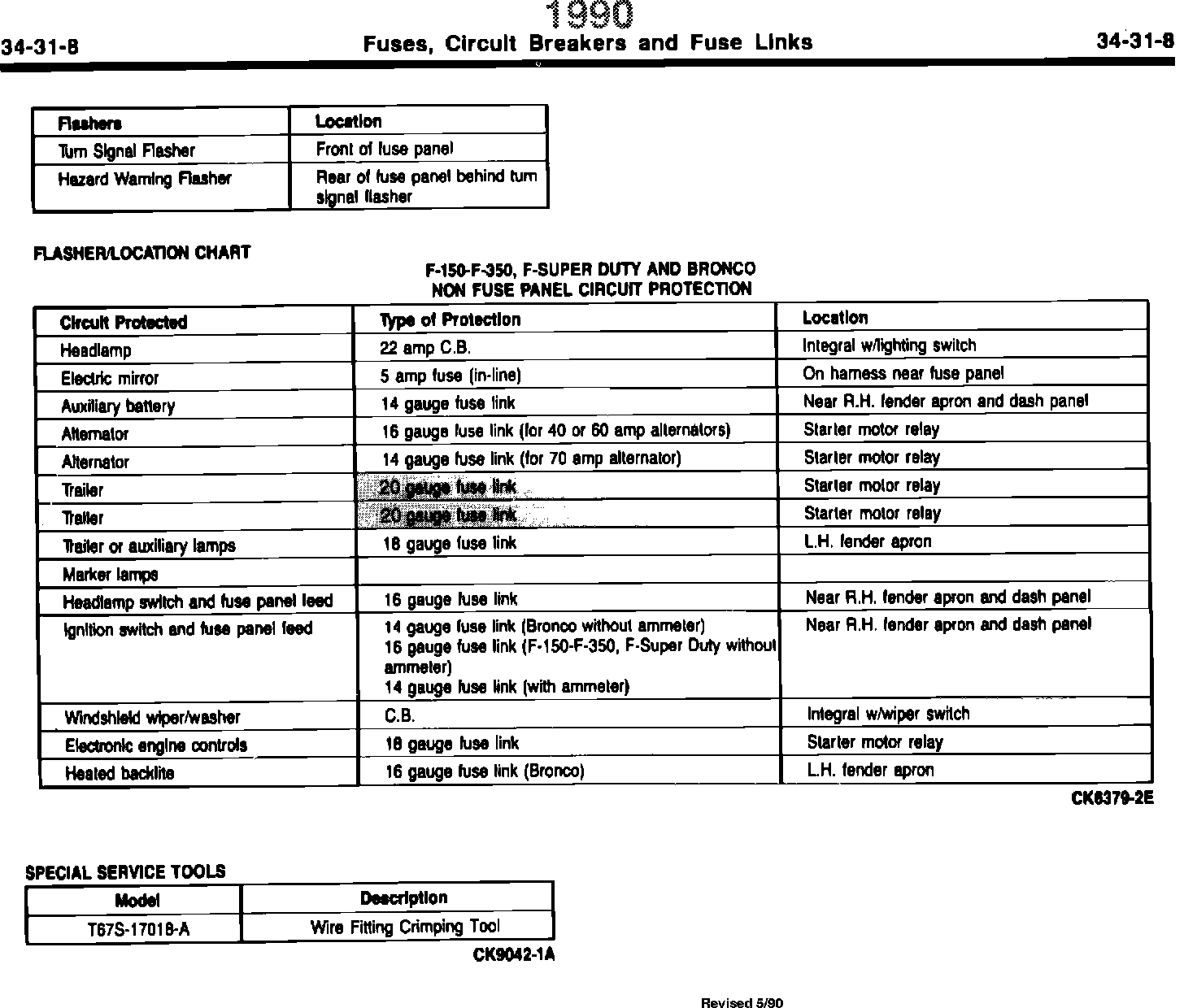

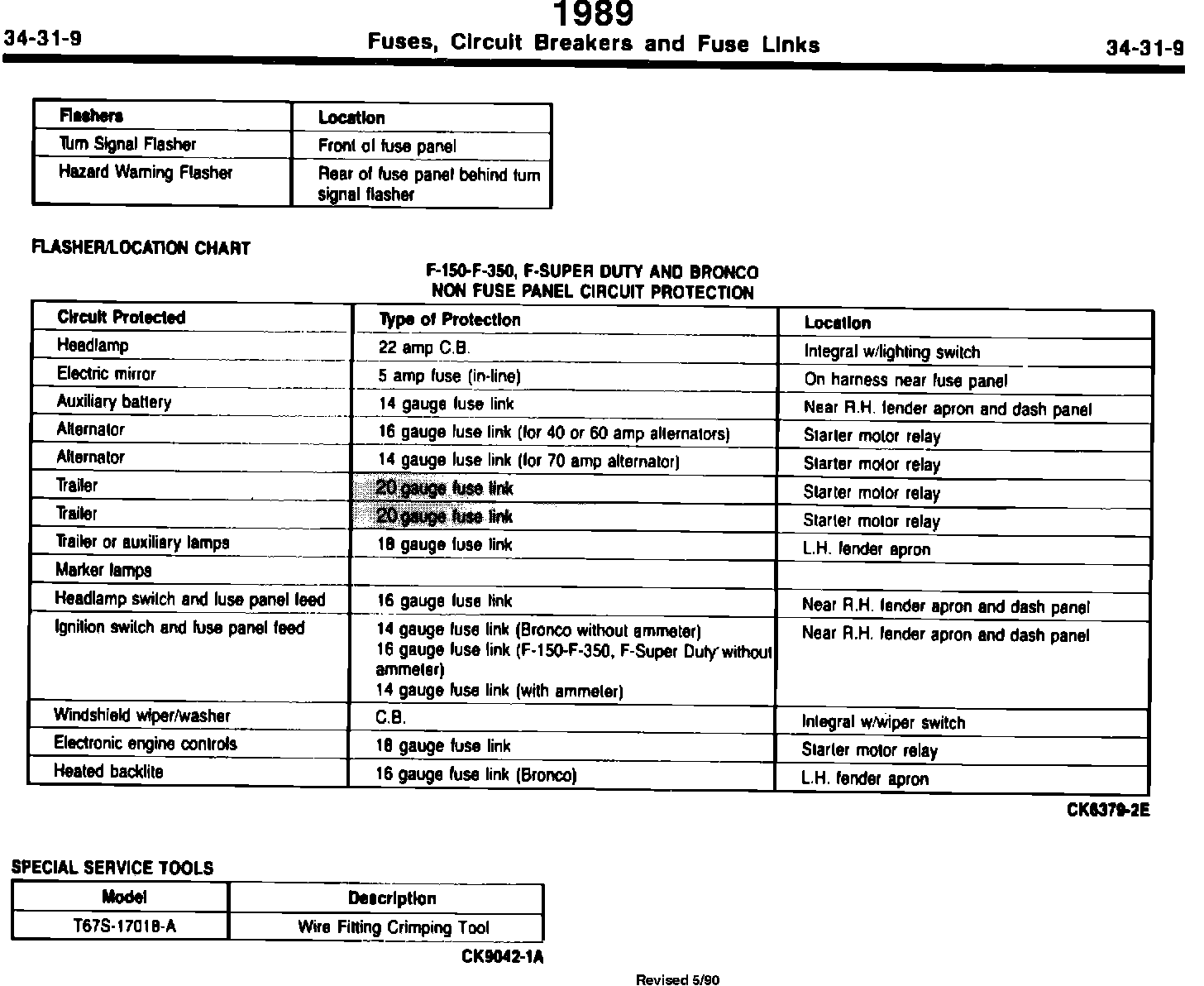

ACTION: Refer to the pages following this TSB article for the revised charts which show the correct 20 gauge fuse links.

OTHER APPLICABLE ARTICLES: NONE
WARRANTY STATUS: INFORMATION ONLY
OASIS CODES: 2800
