Redundant Warning Module Deleted - Revision

90ford46

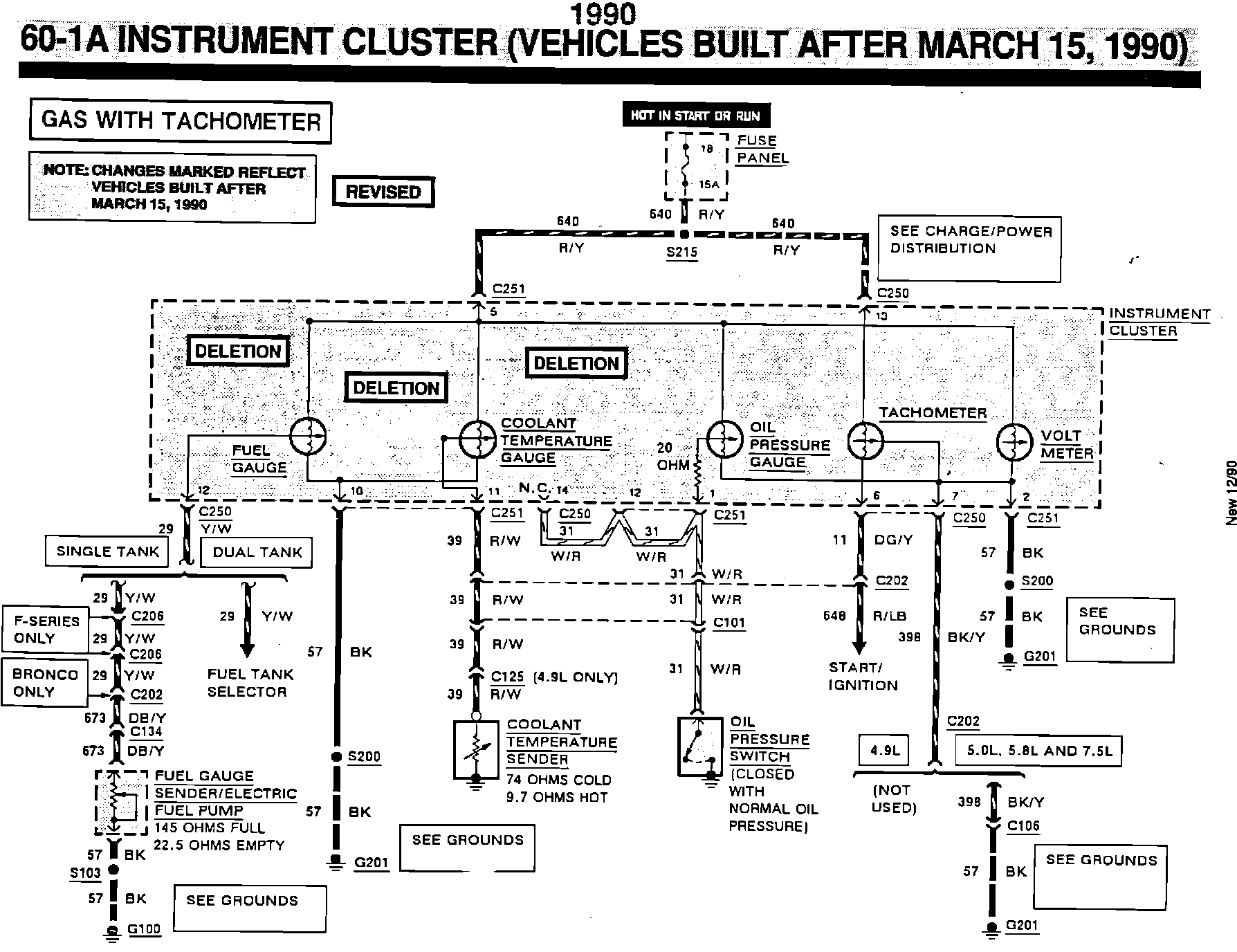

^ ELECTRICAL/VACUUM TROUBLESHOOTING MANUAL - PAGE 60-1A - REDUNDANT WARNING MODULE INFORMATION DELETED

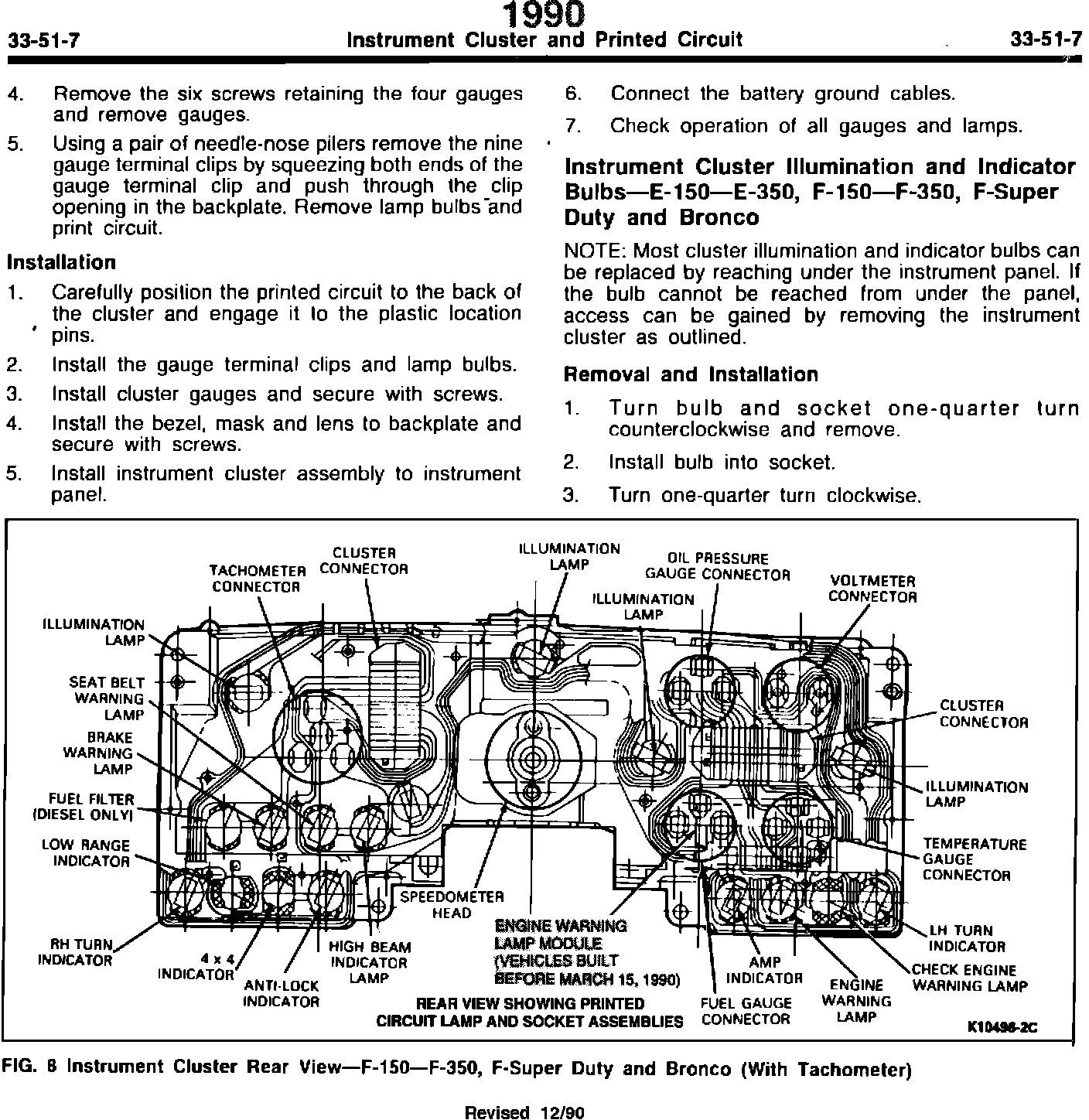

^ SHOP MANUAL - PAGE 33-51-7 - REDUNDANT WARNING MODULE INFORMATION DELETED
Article No. 90-25B-32
LIGHT TRUCK: 1990 BRONCO, F SUPER DUTY, F-150, F-250, F-350






ISSUE: The Low Oil Pressure/High Coolant Temperature Warning Module that operates the "ENGINE" warning light was deleted on trucks built after March 15, 1990. Service information for affected trucks has changed in the 1990 Bronco/F15O-F350/F Super Duty EVTM page 60-1A and the 1990 Econoline/F-Series/Bronco Truck Shop Manual page 33-51-7.
ACTION: Refer to the pages following this TSB article for the revised information.


OTHER APPLICABLE ARTICLES: None
WARRANTY STATUS: INFORMATION ONLY
OASIS CODES: 290000
