Removal
1.
Raise and support vehicle.
2.
Remove wheel and tire assembly.
3.
Remove caliper.
Service and Repair 4.
Remove the upper and lower anchor plate to brake adapter mounting bolts.
5.
Remove anchor plate.

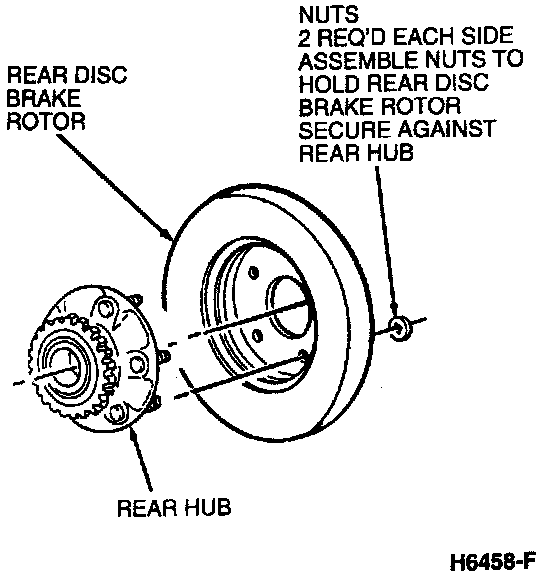

Brake Rotor:
6.
Remove the two rotor retainer nuts and slide rotor off hub.
