Electronic Automatic Temperature Control - Revision


90ford11

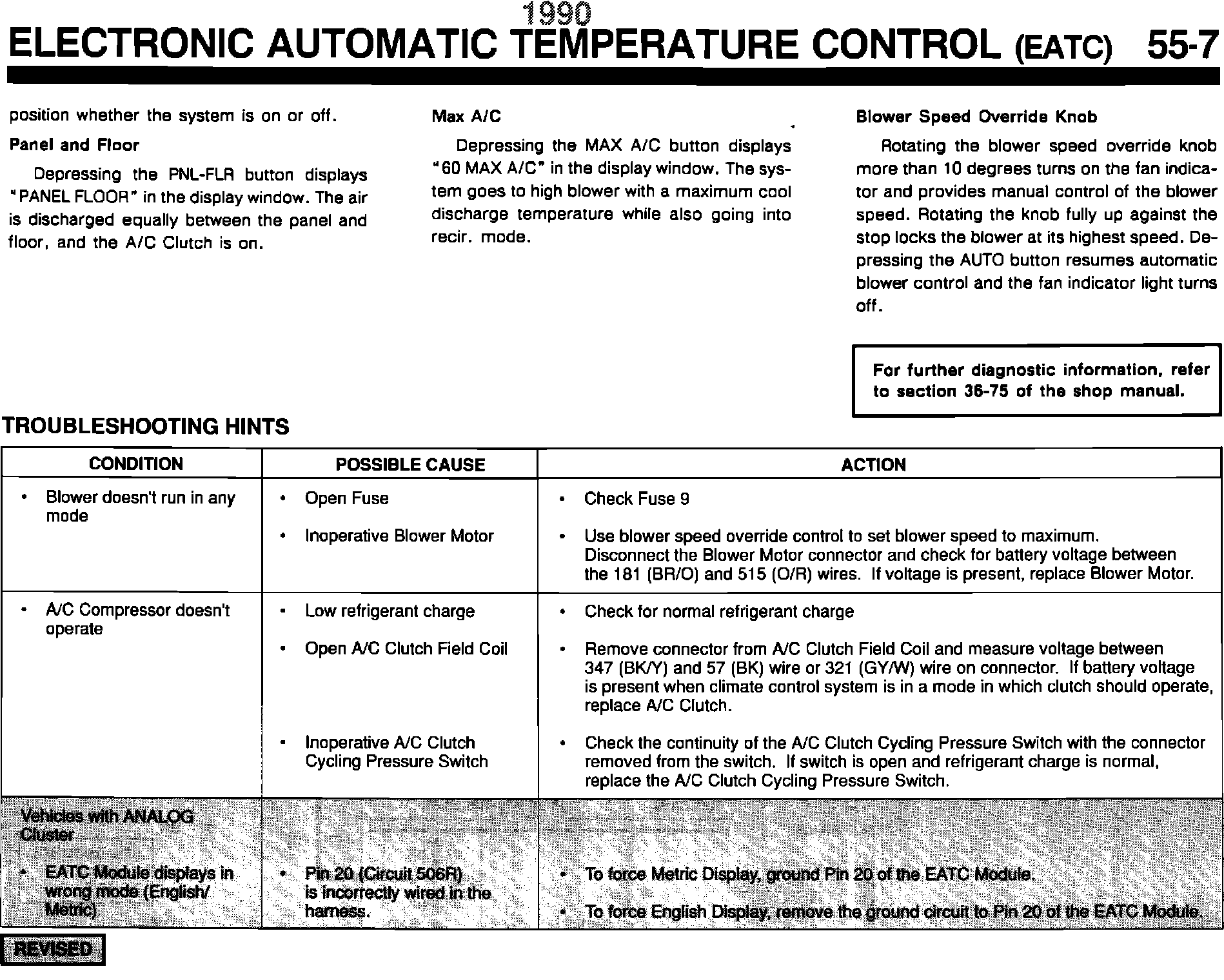

ELECTRICAL/VACUUM TROUBLESHOOTING MANUAL - 1990 - PAGE 55-2 AND 55-7-ELECTRONIC AUTOMATIC TEMPERATURE CONTROL (EATC) SCHEMATIC AND TROUBLESHOOTING HINTS REVISED

Article No. 90-6B-5













FORD: 1990 TAURUS

LINCOLN-MERCURY: 1990 SABLE


ISSUE: The electrical schematic shown on pages 55-2 and the Troubleshooting Hints on page 55-7 of the 1990 Taurus/Sable EVTM have been modified to include information on vehicles with Analog Clusters.

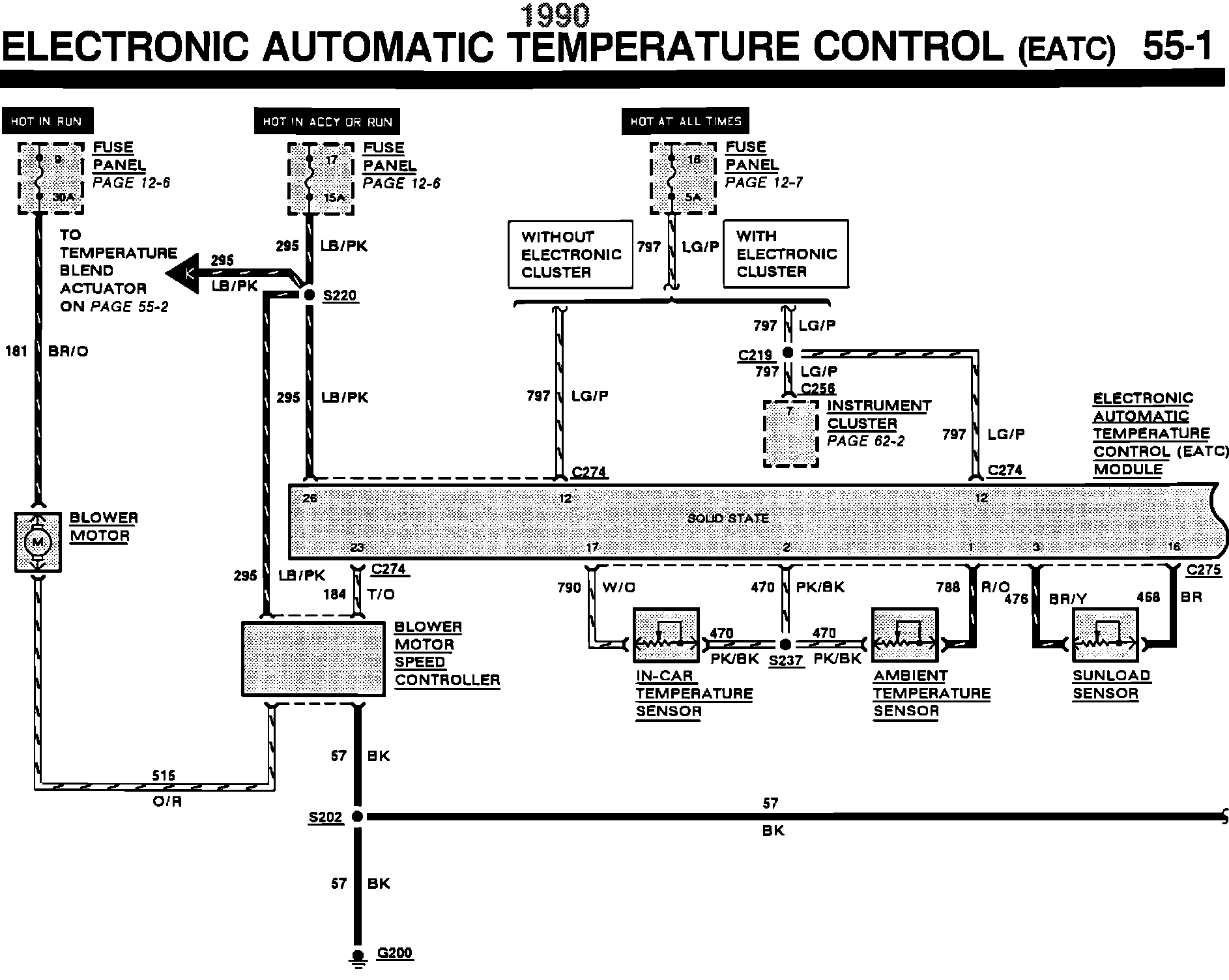

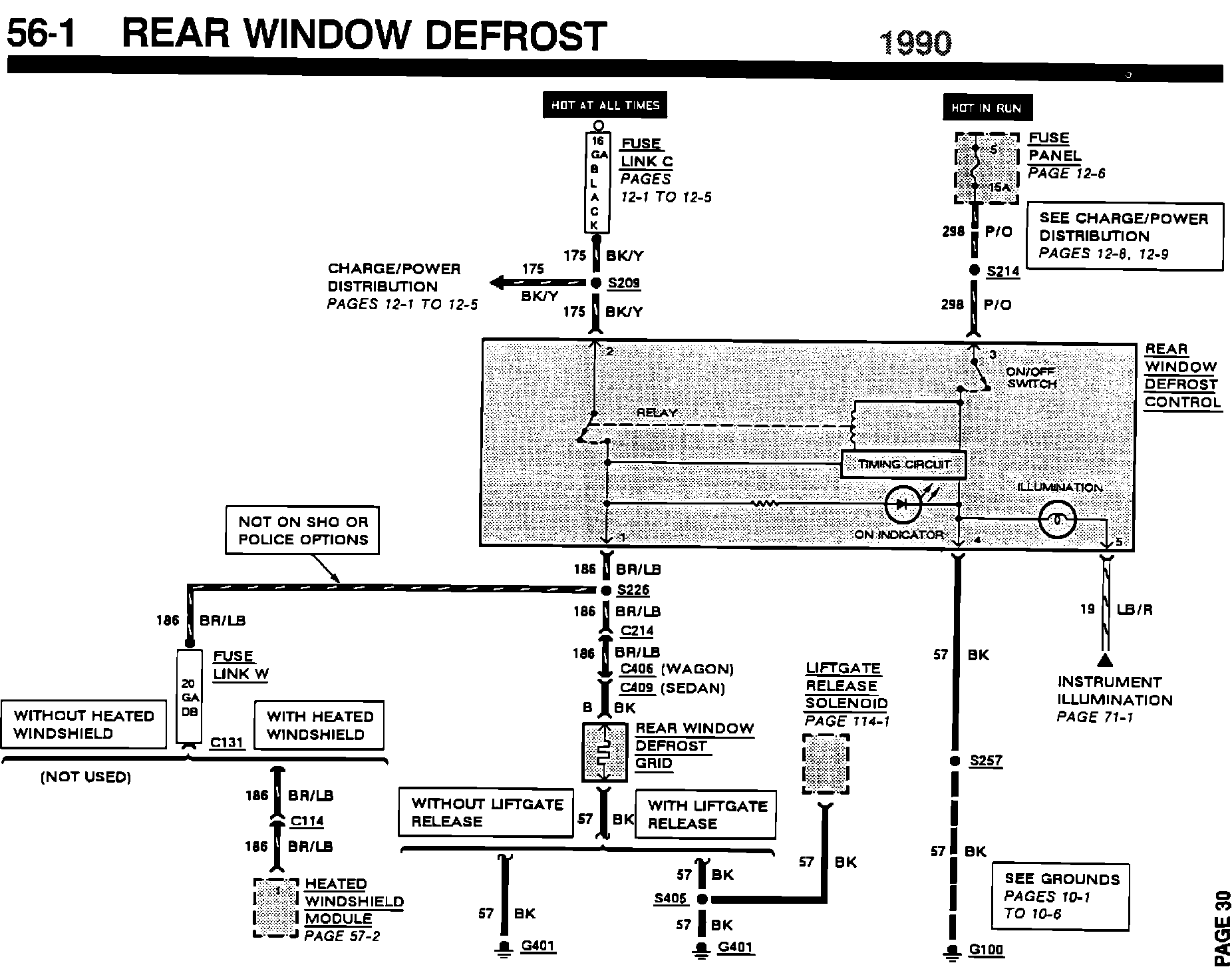

ACTION: Refer to the pages following this TSB article for revised schematic and chart.

OTHER APPLICABLE ARTICLES: None
WARRANTY STATUS: INFORMATION ONLY
OASIS CODES: 2800
