Power Window Switch - Manual Revision

9207ford03

Article No.
91-25B-24

12/20/91

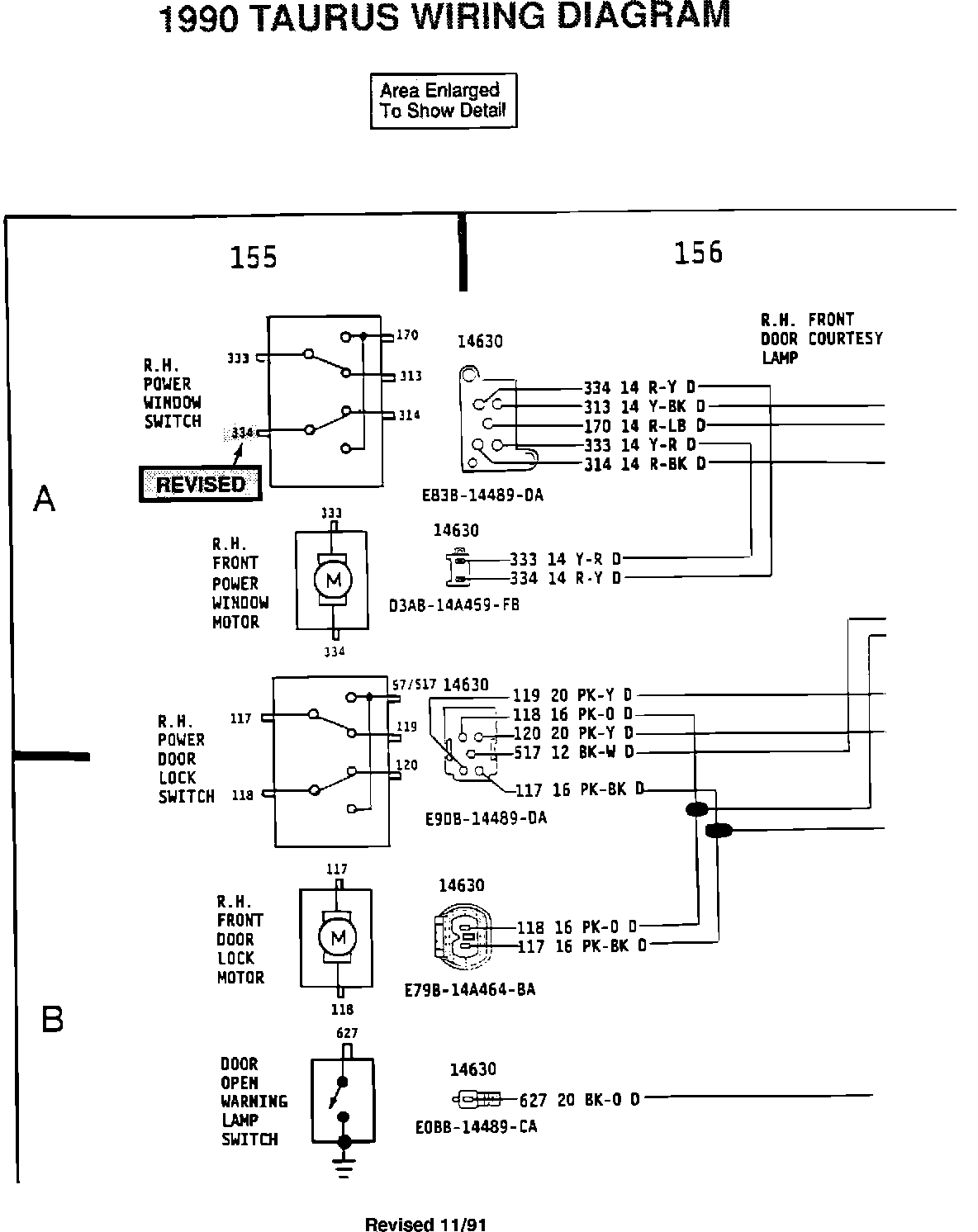

WIRING DIAGRAM - 1990 - ZONE A-155 - TERMINAL DESIGNATION FOR R.H. POWER WINDOW SWITCH REVISED

FORD: 1990 TAURUS

ISSUE: The terminal designation for the R.H. Power Window Switch shown in Zone A-155 of the 1990 Taurus Wiring Diagram is incorrect.

ACTION: Refer to the image in this TSB article for the revised information.

OTHER APPLICABLE ARTICLES: NONE
WARRANTY STATUS: INFORMATION ONLY
OASIS CODES: 290000
