Removal and Replacement

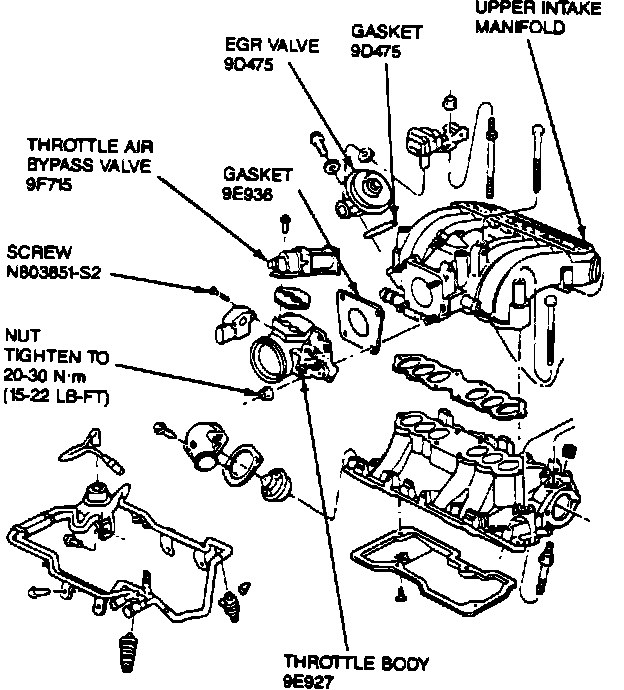

Intake Manifold - Exploded View:






REMOVAL
1. Disconnect wiring harness connector from idle air by-pass valve assembly.

2. Remove the two retaining screws.

3. Remove valve and gasket.

4. Clean gasket mating surfaces.

NOTE: If scraping is necessary, use care not to damage valve or throttle body gasket surfaces, or drop material into the throttle body.


INSTALLATION
1. Install gasket and valve on throttle body.

2. Install the retaining screws.
Torque to 87 in lbs (10 Nm).

3. Connect electrical wiring harness connector.
