Intercooler/Components - Manual Revision

90ford15
^ SHOP MANUAL - 1989 - PAGE 24-43-2 - ILLUSTRATION REVISED TO INCLUDE INTERCOOLER AND RELATED COMPONENTS

^ SHOP MANUAL-1990-PAGE 24-43-2- ILLUSTRATION REVISED TO INCLUDE INTERCOOLER AND RELATED COMPONENTS
Article No. 90-6B-32
FORD: 1989-90 THUNDERBIRD

LINCOLN-MERCURY: 1989-90 COUGAR

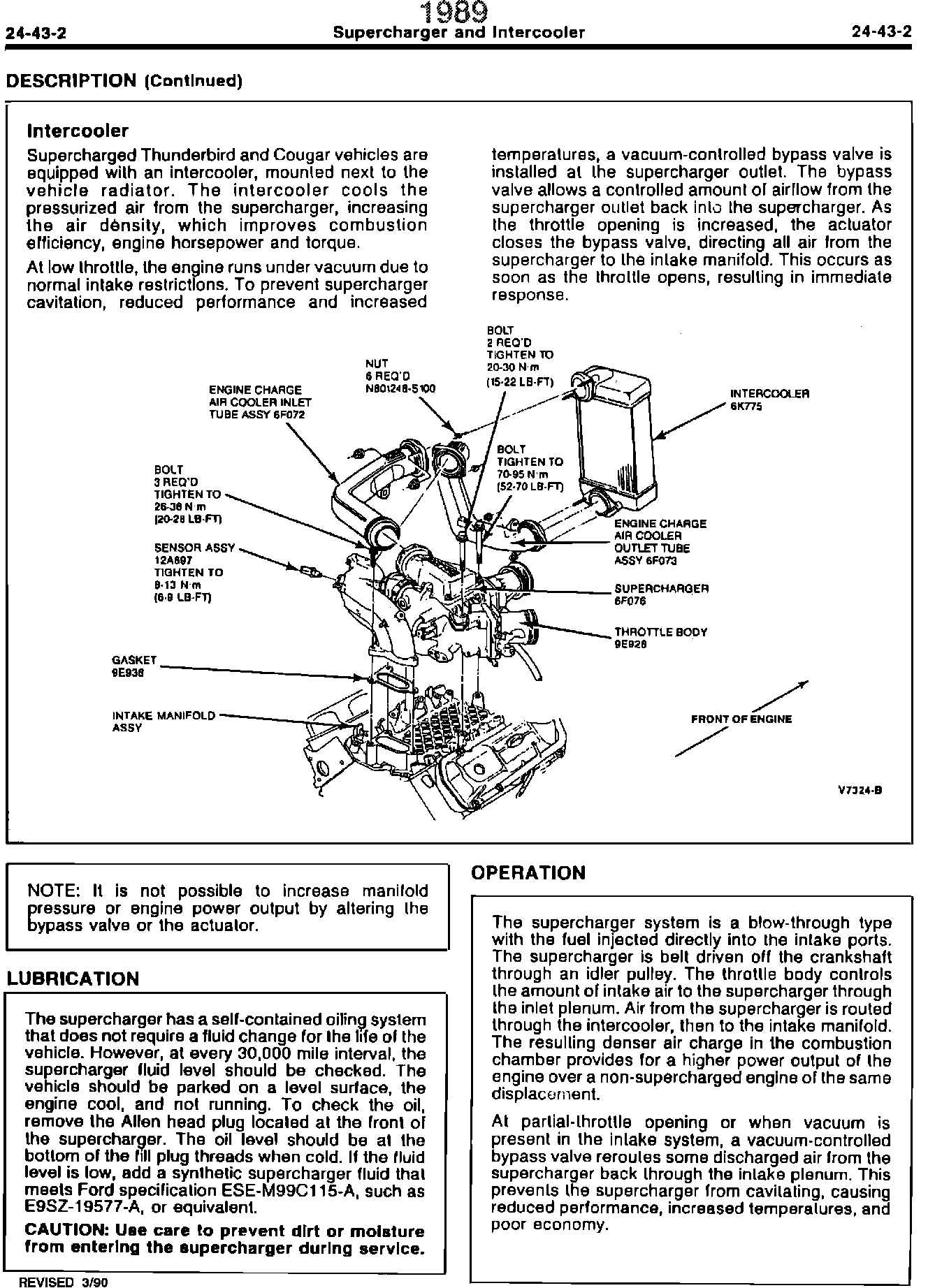

ISSUE: The illustration for the intercooler description on page 24-43-2 does not show the intercooler and related components.

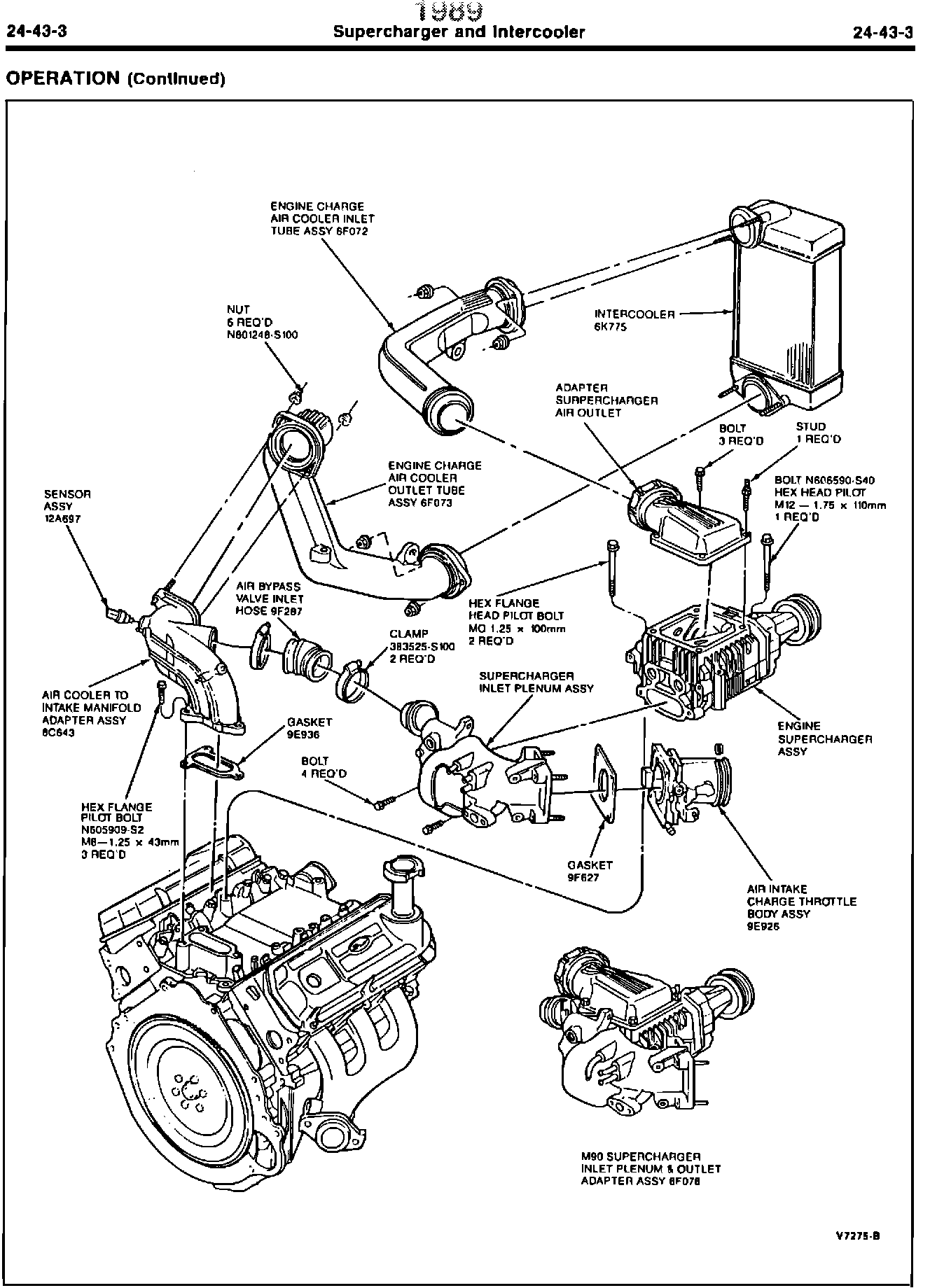

ACTION: Refer to the pages following this TSB article for the updated illustration.
OTHER APPLICABLE ARTICLES: None
WARRANTY STATUS: INFORMATION ONLY
OASIS CODES: 4800
