Ride Control Test Fault Codes - Revised

90ford30 SHOP MANUAL - 1990 - PAGE 14-39-16 - AUTOMATIC RIDE CONTROL QUICK TEST STAR TEST FAULT CODES REVISED
Article No. 90-18B-6
FORD: 1990 THUNDERBIRD

LINCOLN-MERCURY: 1990 COUGAR






ISSUE: The Star Test Fault Codes on Page 14-39-16 of the 1990 Thunderbird/Cougar Shop Manual for the Automatic Ride Control RH and LH front actuator are incorrect.

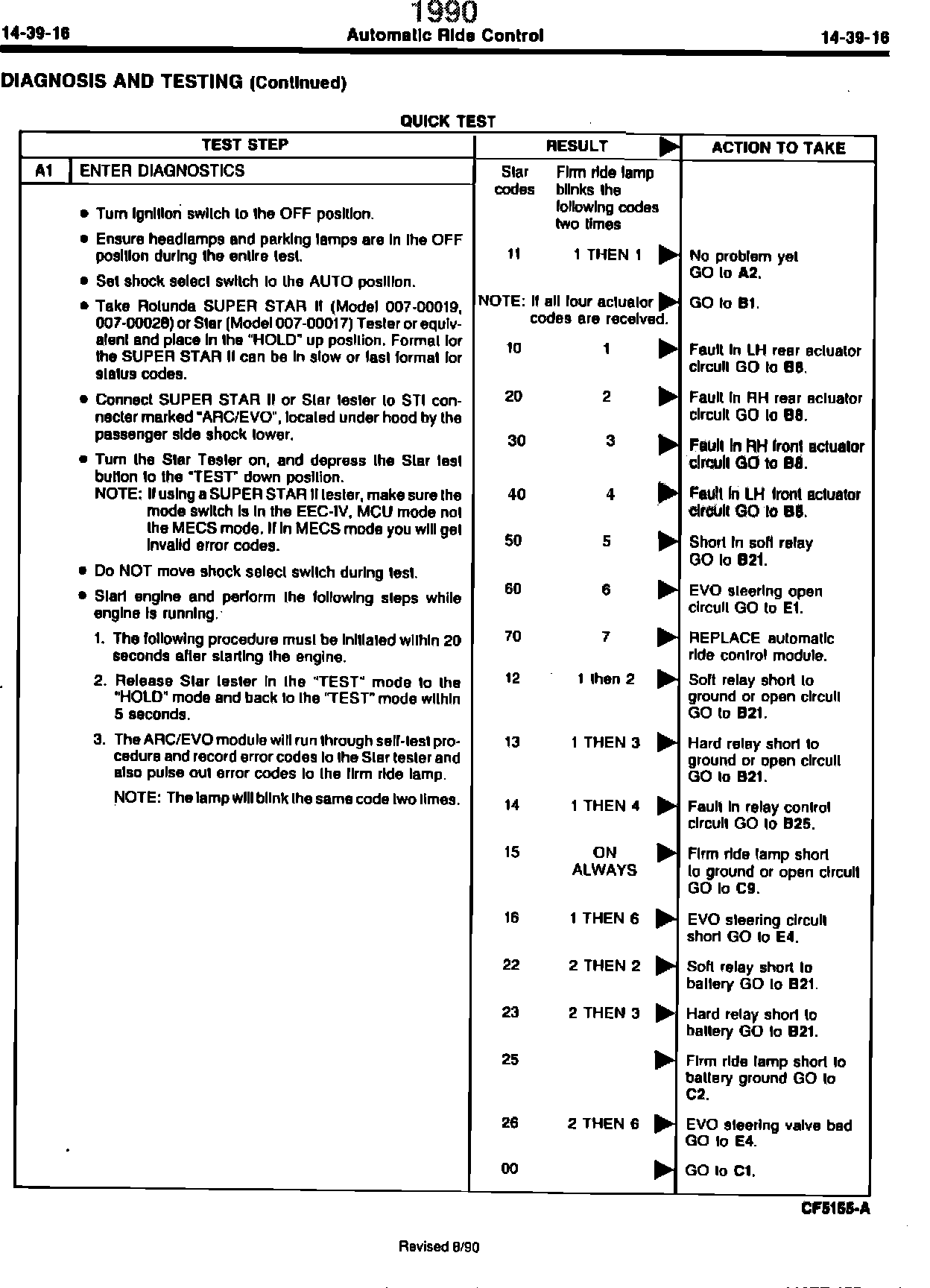

ACTION: Refer to the pages following this TSB article for the updated Quick Test procedure.
OTHER APPLICABLE ARTICLES: None
WARRANTY STATUS: INFORMATION ONLY
OASIS CODES: 290000
