MAP Sensor Eliminated - Manual Correction

91ford14

Article No.
91-5B-34

03/22/91


ENGINE EMISSIONS DIAGNOSIS SHOP MANUAL - 1991 -
PAGES 4-1, 4-3 AND 4-4 - MAP SENSOR ELIMINATED ON
1991 49-STATE 2.3L EFI RANGER


LIGHT TRUCK: 1991 RANGER


ISSUE: The MAP sensor is no longer used on the 1991 2.3L EFI (49 State) Ranger. These engines use a Mass Air Flow (MAF) sensor. References to the MAP sensor for this engine in the Engine Emissions Diagnosis Shop Manual are incorrect. Revised information must be incorporated into Page 4-1, Page 4-3, and Page 4-4 of the 1991 Engine Emissions Diagnosis Shop Manual EEC-IV Engine Supplement-Truck to update the reference for Ranger 2.3L engine.


ACTION: Refer to the pages following this TSB article for the updated information.


OTHER APPLICABLE ARTICLES: NONE
WARRANTY STATUS: INFORMATION ONLY
OASIS CODES: 207000


EEC-IV - Engine Supplement - Truck 1991 4-1


2.3L EFI

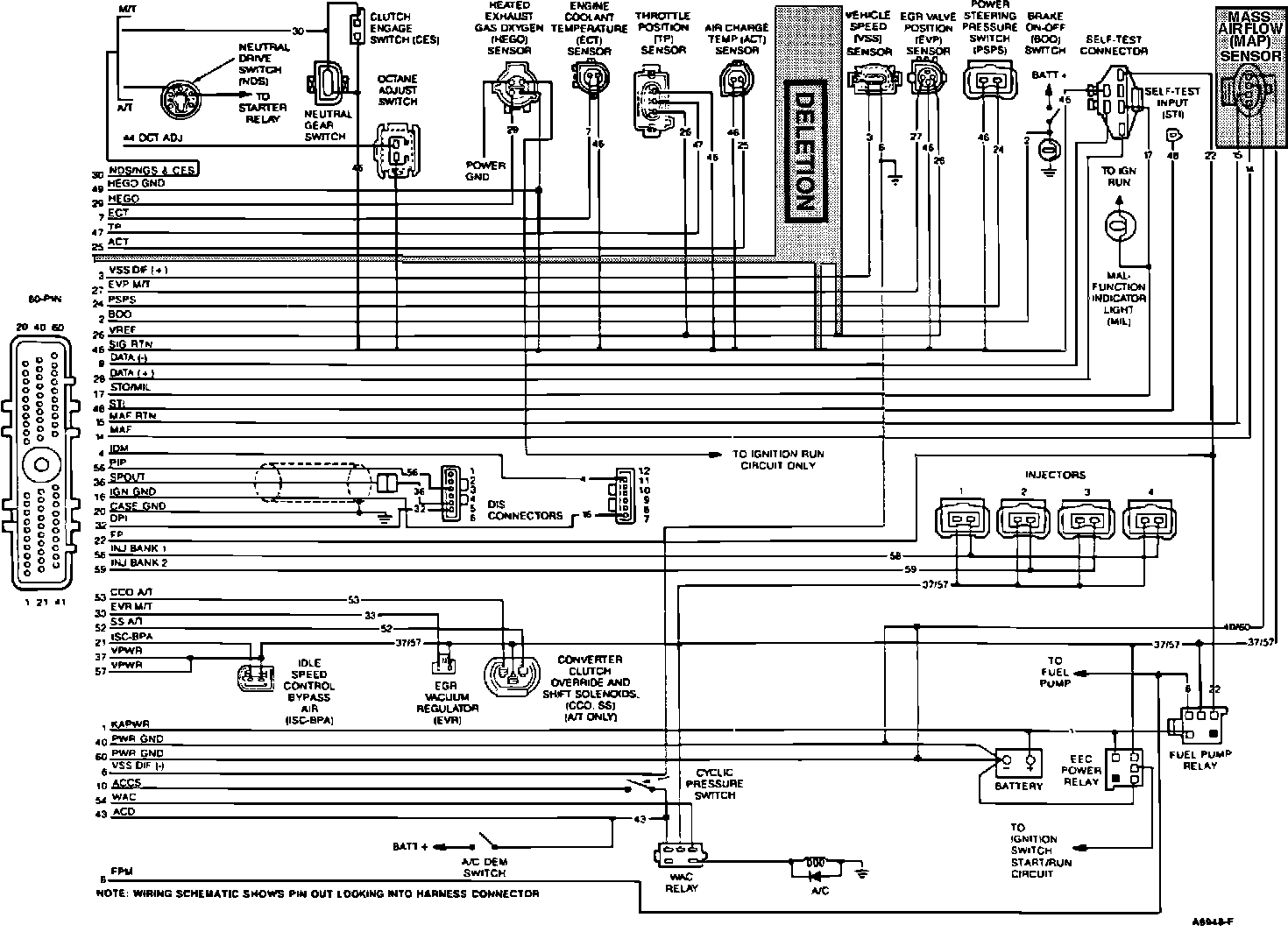

Electrical Schematic





RANGER


4-2 1991 EEC-IV - Engine Supplement - Truck


2.3L EFI

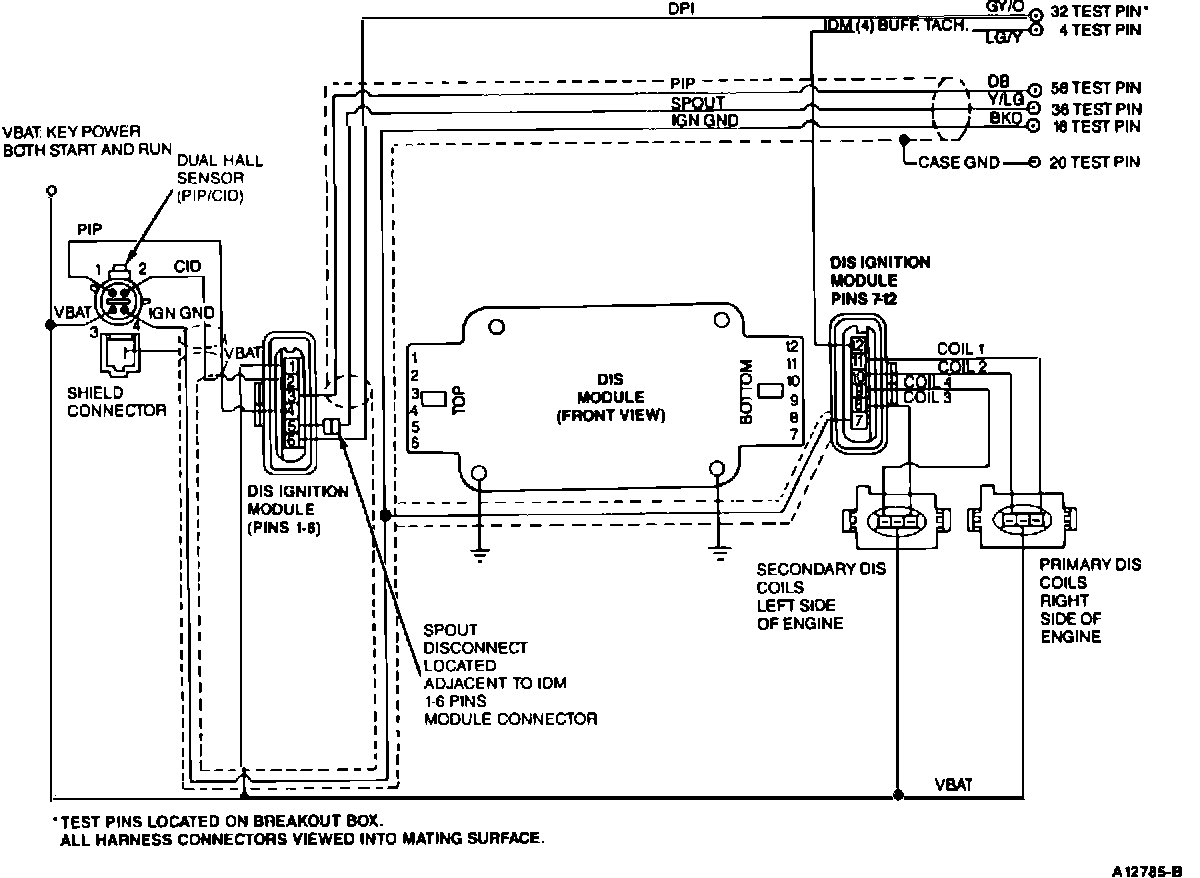

Distributorless Ignition System (DIS)

Electrical Schematic


EEC-IV - Engine Supplement - Truck 1991 4-3


2.3L EFI

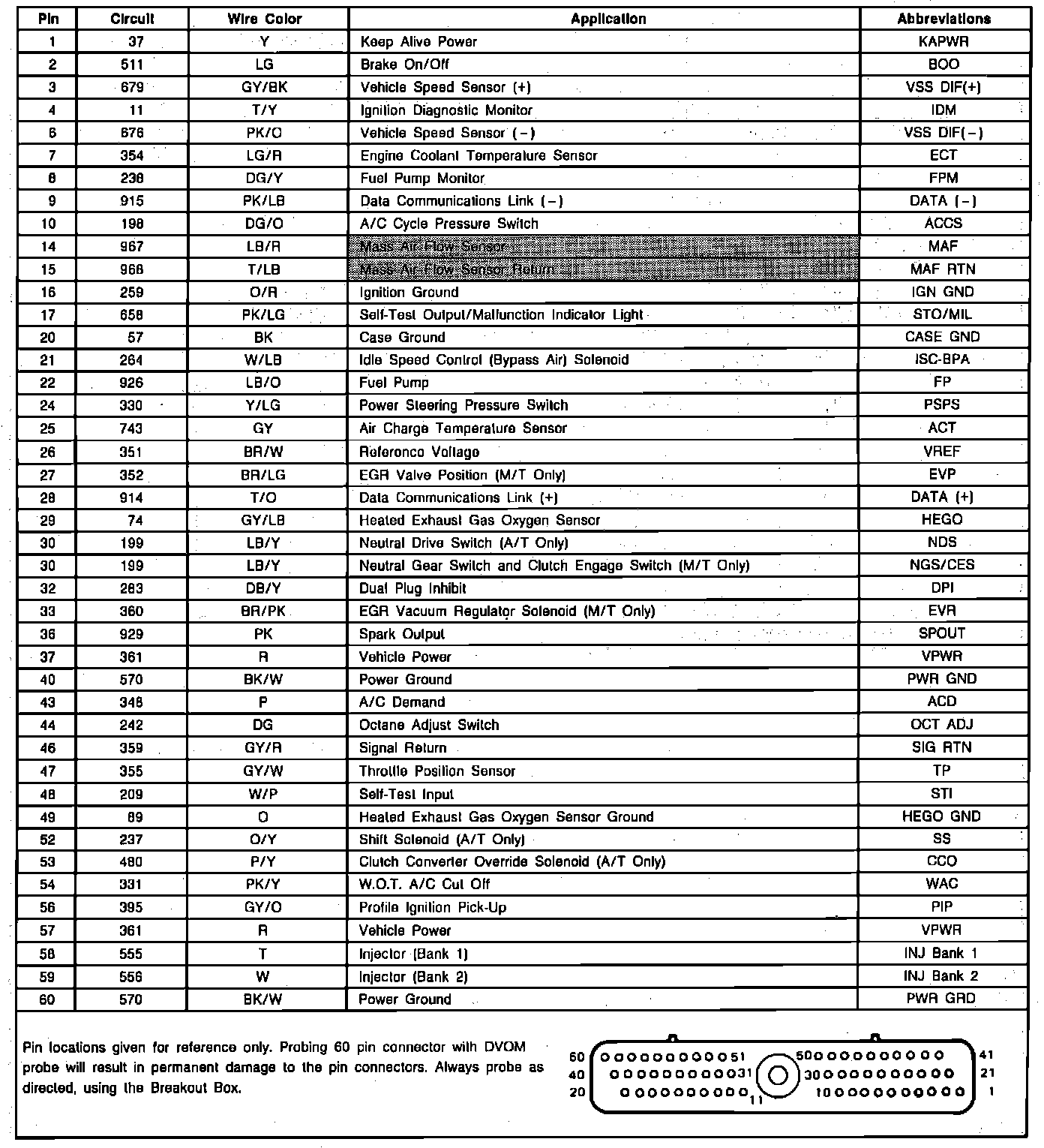

EEC-IV Module Connector Pin Usage





RANGER


4-4 1991 EEC-IV - Engine Supplement - Truck


2.3L EFI

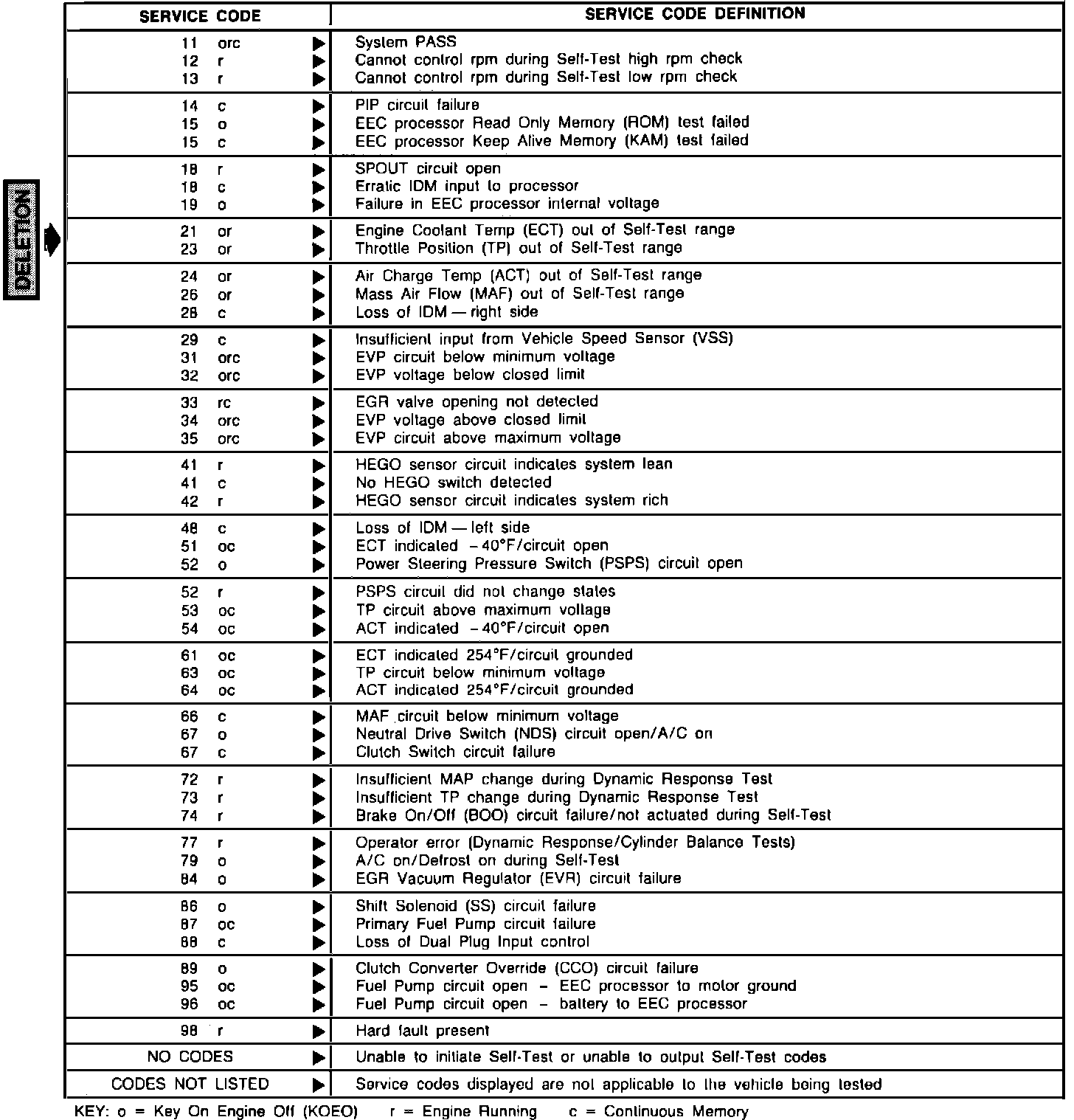

Quick Test Codes and Code Definitions
