A/T - Modification to Improve Gear Lubrication

January, 1994
Technical Bulletin # 204

^ Transmission: AXOD-E
^ Subject: Lube modification
^ Application: Ford, Mercury

AXOD-E

Lube modification

The following procedure should be used to improve gear train lube.

1. Make sure you are not using the first design lube tubes. This was outlined in ATRA bulletin # 121.

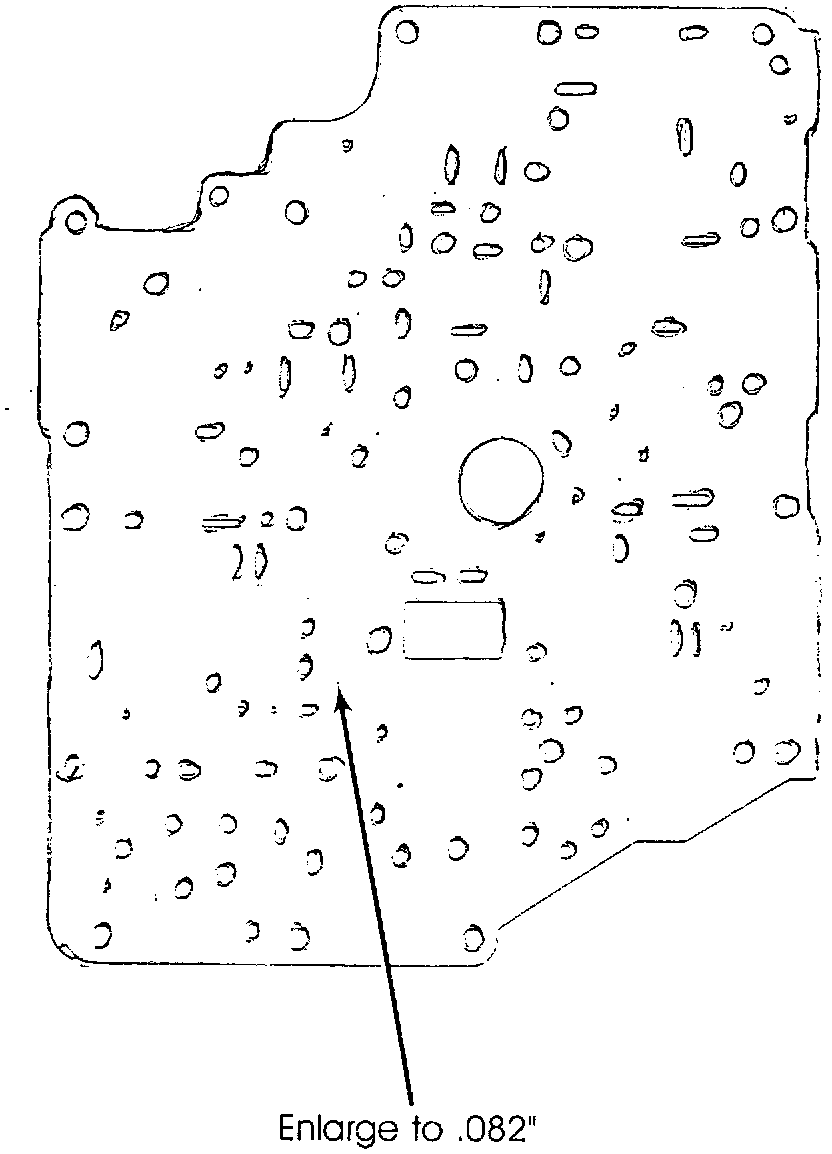

2. Enlarge the lube feed in the separator plate to .082".

Caution:
This modification should be done only if you have the second or third design lube tubes.
