Front Motor Mount - Torque Specification Revision

Article No.
91-11B-22

06/14/91

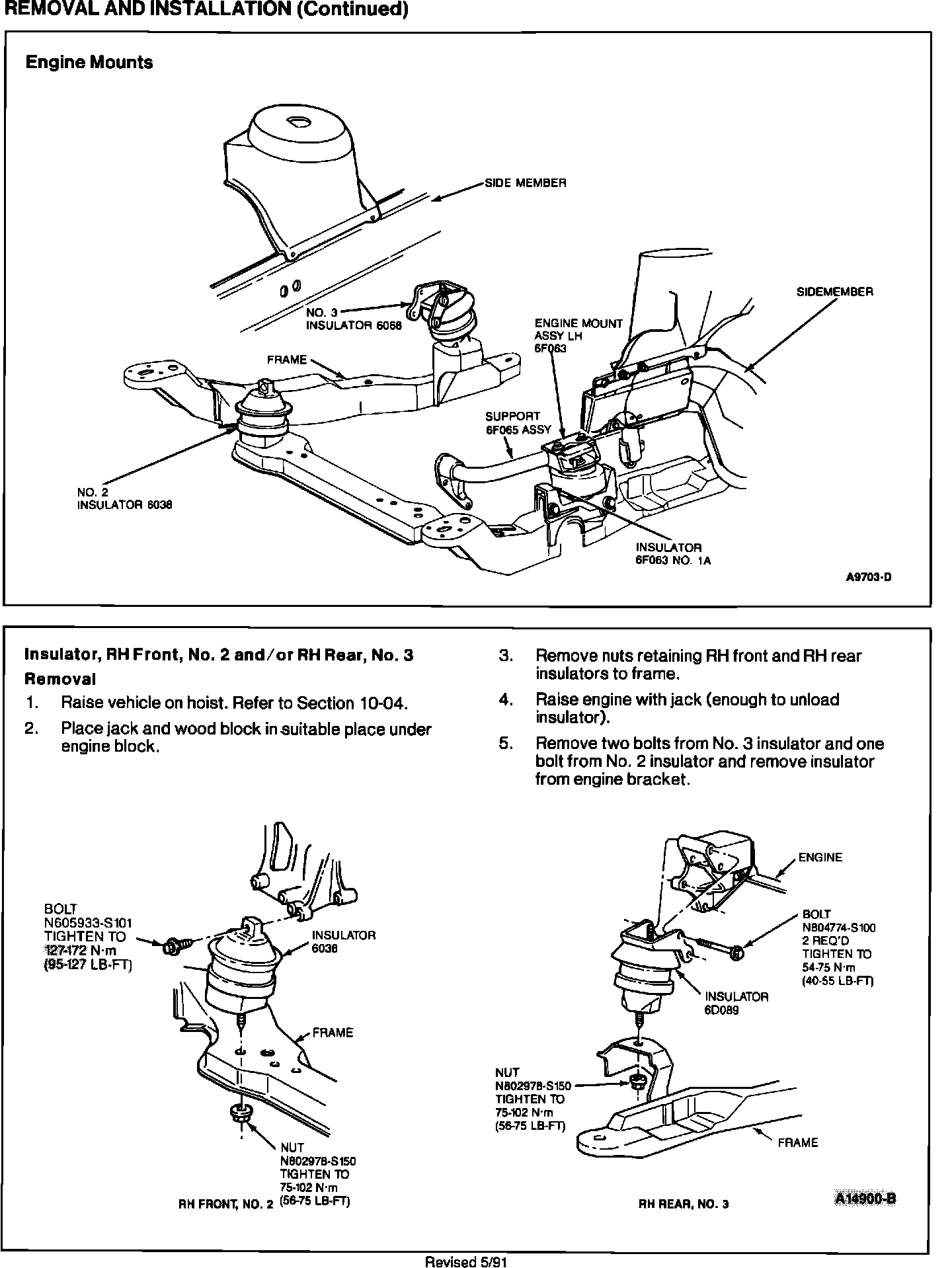

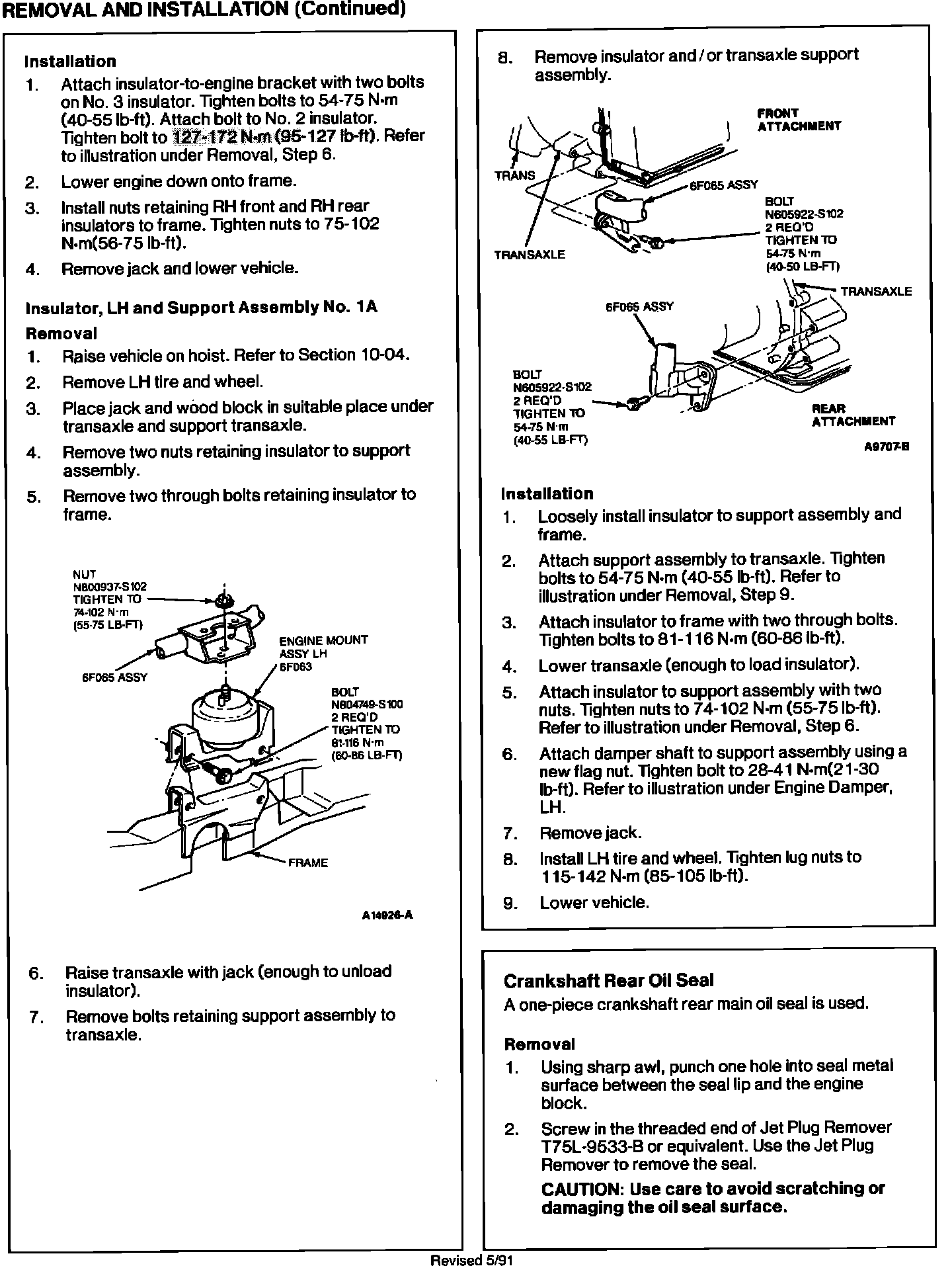

SHOP MANUAL - 1991 - PAGES 21-12-9 AND 21-12-10 - TORQUE SPECIFICATIONS FOR INSULATOR RH FRONT NO. 2 ATTACHING BOLT REVISED

FORD:
1991 TAURUS

LINCOLN-MERCURY:
1991 SABLE

ISSUE:
The insulator RH Front No. 2 Attaching Bolt torque specifications were incorrect on Pages 21-12-9 and 10 of the 1991 Taurus/Sable Shop Manual.








ACTION:
Refer to the pages in this TSB article for the correct torque specifications.

OTHER APPLICABLE ARTICLES: NONE
WARRANTY STATUS: INFORMATION ONLY
OASIS CODES: 490000
