EEC IV Pinpoint Test H - Manual Correction

90ford41

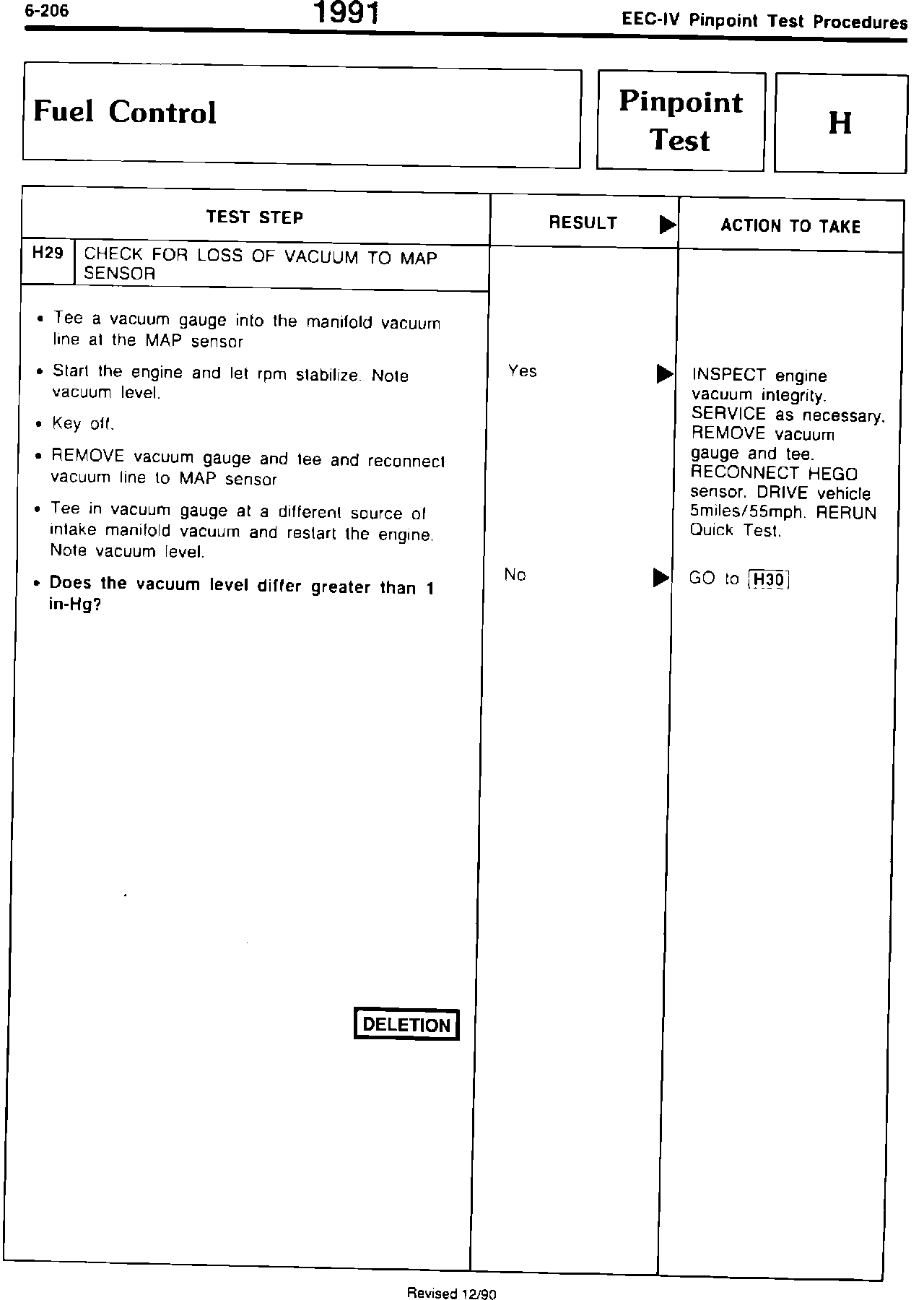

^ ENGINE/EMISSIONS DIAGNOSIS SHOP MANUAL - 1991 - PAGE 6-206 - PINPOINT TEST H - FUEL CONTROL REVISED

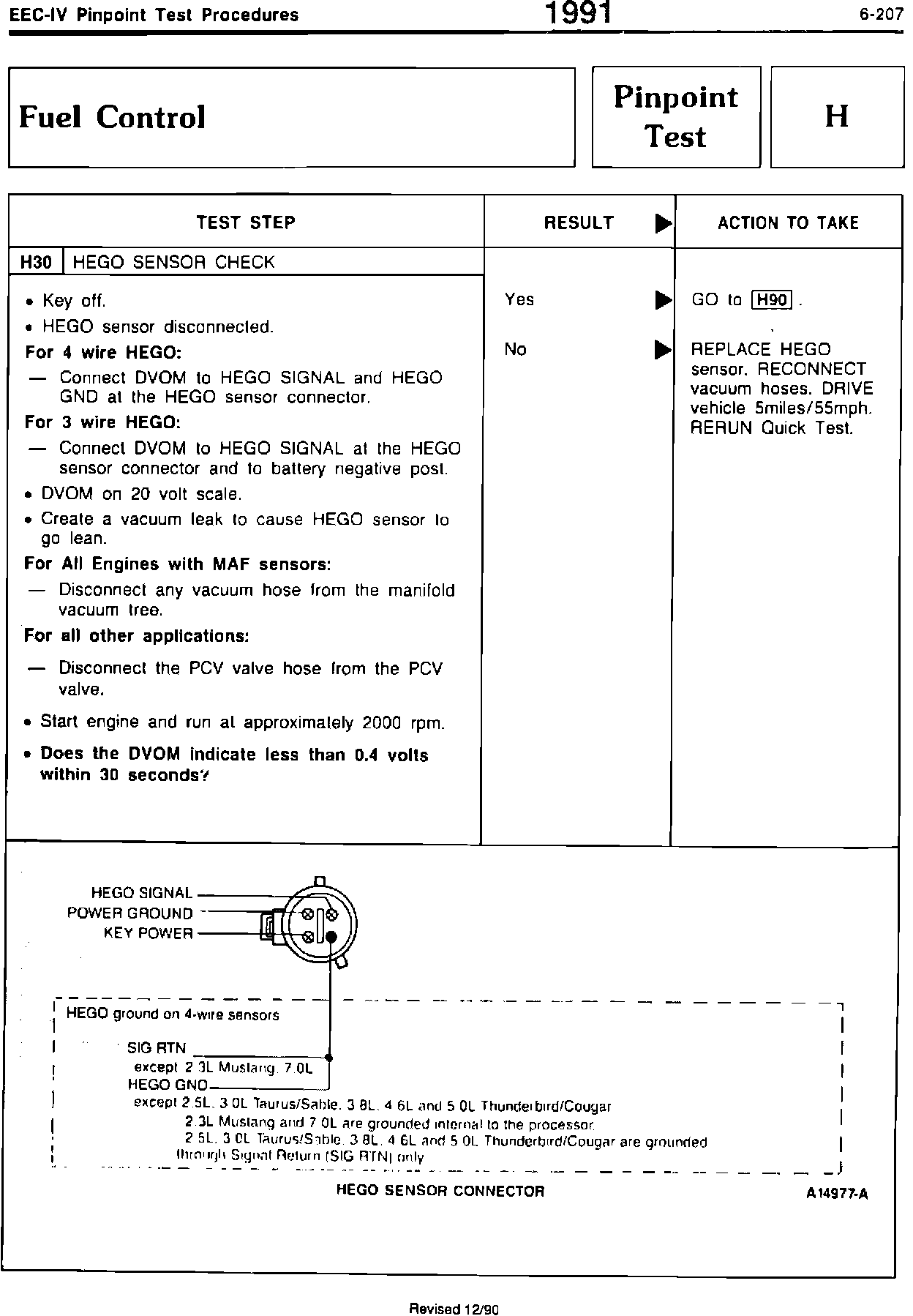

^ ENGINE/EMISSIONS DIAGNOSIS SHOP MANUAL - 1991 - PAGE 6-207 - PINPOINT TEST H - FUEL CONTROL REVISED
Article No. 90-25B-1
FORD: 1991 CROWN VICTORIA, ESCORT, MUSTANG, PROBE, TAURUS, TEMPO, THUNDERBIRD

LINCOLN-MERCURY: 1991 CONTINENTAL, COUGAR, GRAND MARQUIS, MARK VII, SABLE,

TOPAZ, TOWN CAR, TRACER

LIGHT TRUCK: 1991 AEROSTAR, BRONCO, ECONOLINE, EXPLORER, F SUPER DUTY, F-150, F-250, F-350, RANGER

MEDIUM/HEAVY TRUCK: 1991 F & B SERIES
ISSUE: Incorrect service information in the Pinpoint Test H - Fuel Control on Page 6-206 of the 1991 Engine/Emissions Diagnosis Shop Manual has been corrected. The schematic for the HEGO Sensor Connector is moved to Page 6-207.






ACTION: Refer to the pages following this TSB article for the updated procedures.
OTHER APPLICABLE ARTICLES: None
WARRANTY STATUS: INFORMATION ONLY
