Engine Views

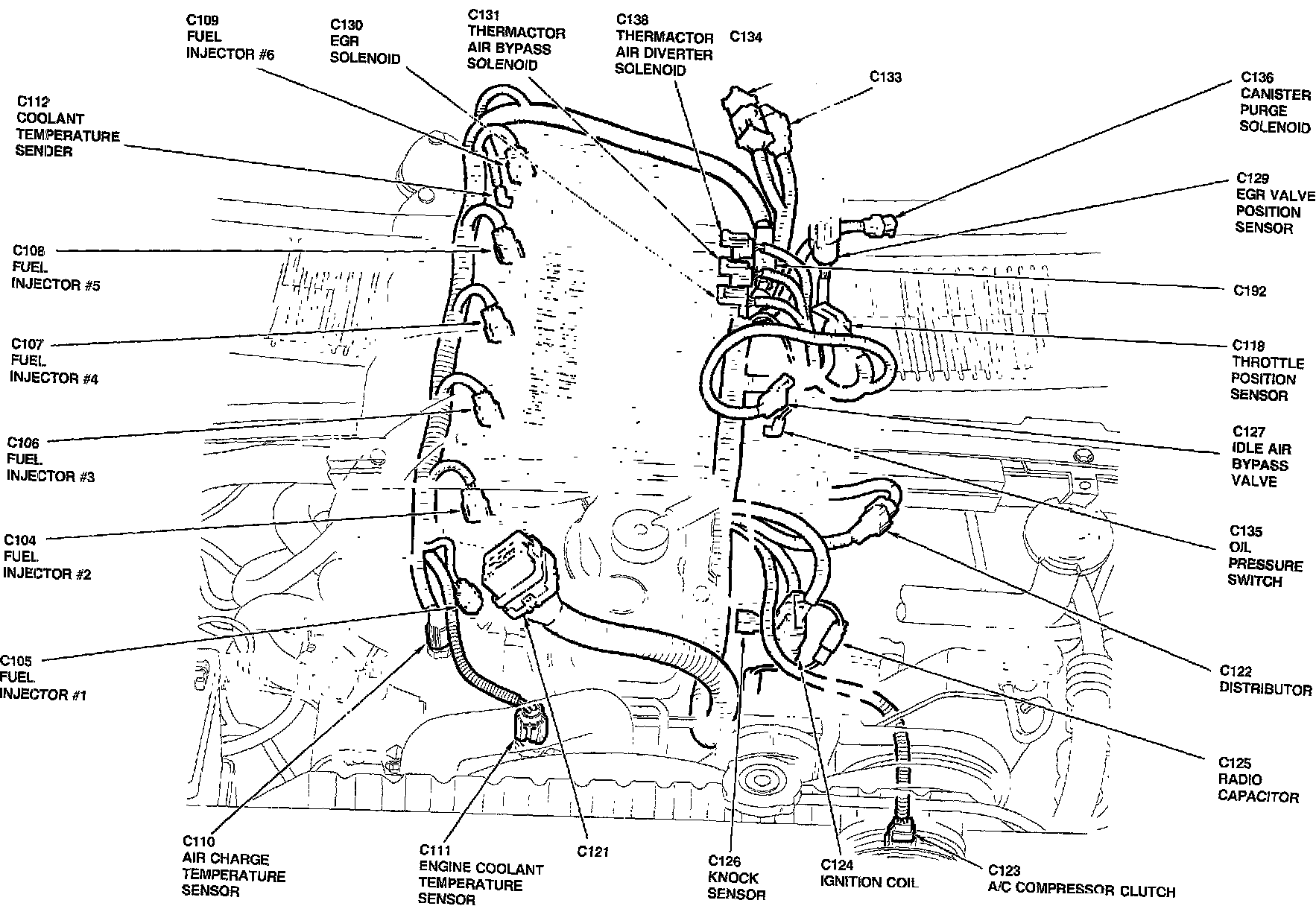

Component Location:

A/C COMPRESSOR CLUTCH
AIR CHARGE TEMPERATURE SENSOR
CANISTER PURGE SOLENOID
COOLANT TEMPERATURE SENDER
DISTRIBUTOR
EGR SOLENOID
EGR VALVE POSITION SENSOR
ENGINE COOLANT TEMPERATURE SENSOR
FUEL INJECTORS
IDLE AIR BYPASS VALVE
IGNITION COIL
KNOCK SENSOR
OIL PRESSURE SWITCH
RADIO CAPACITOR
THERMACTOR AIR BYPASS SOLENOID
THERMACTOR AIR DIVERTER SOLENOID
THROTTLE POSITION SENSOR

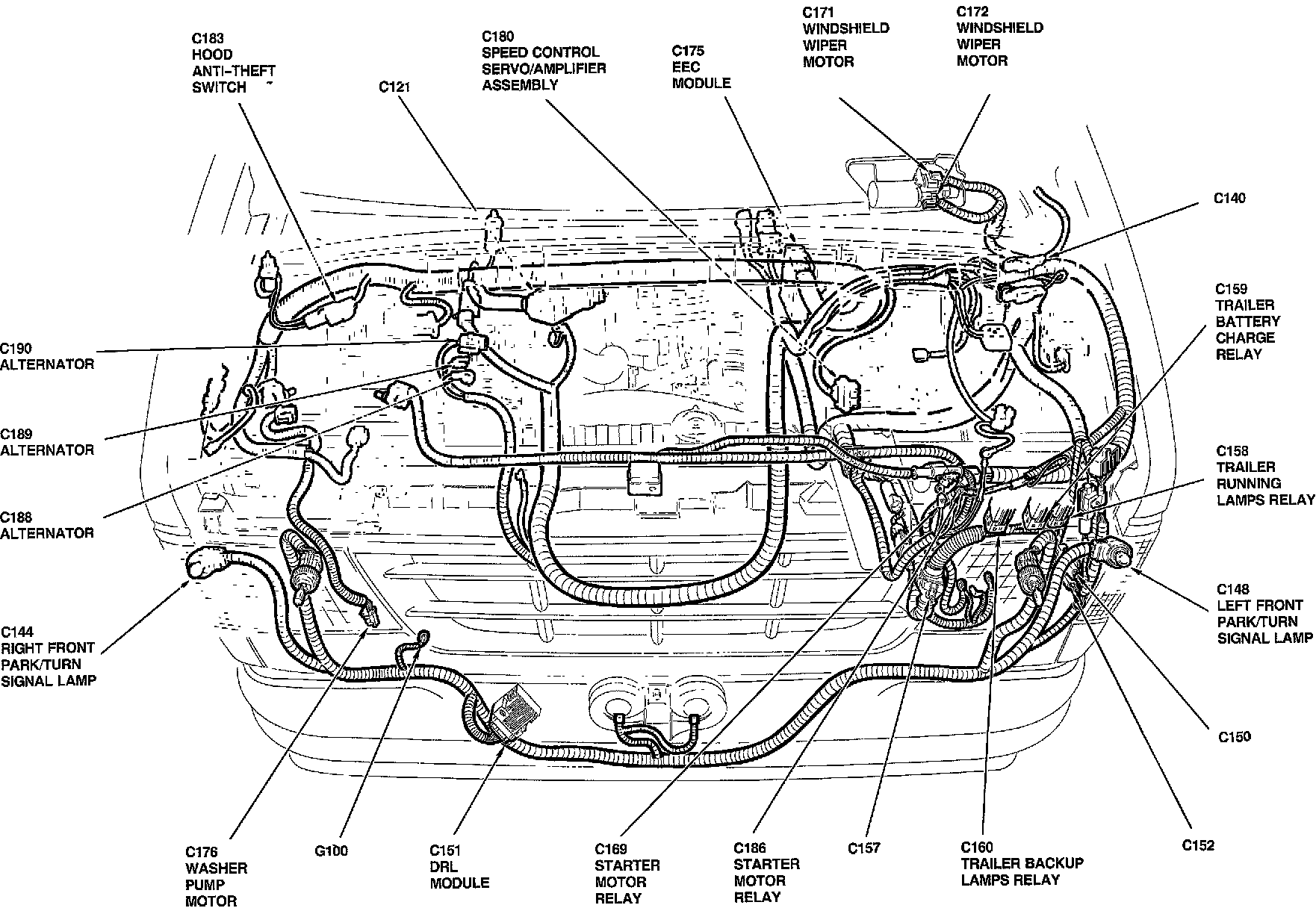

Component Location:

ALTERNATOR
DRL MODULE
EEC MODULE
FRONT PARK/TURN SIGNAL LAMP
HOOD ANTI-THEFT SWITCH
SPEED CONTROL SERVO/AMPLIFIER ASSEMBLY
STARTER MOTOR RELAY
TRAILER BACKUP LAMPS RELAY
TRAILER BATTERY CHARGE RELAY
TRAILER RUNNING LAMPS RELAY
WASHER PUMP MOTOR
WINDSHIELD WIPER MOTOR

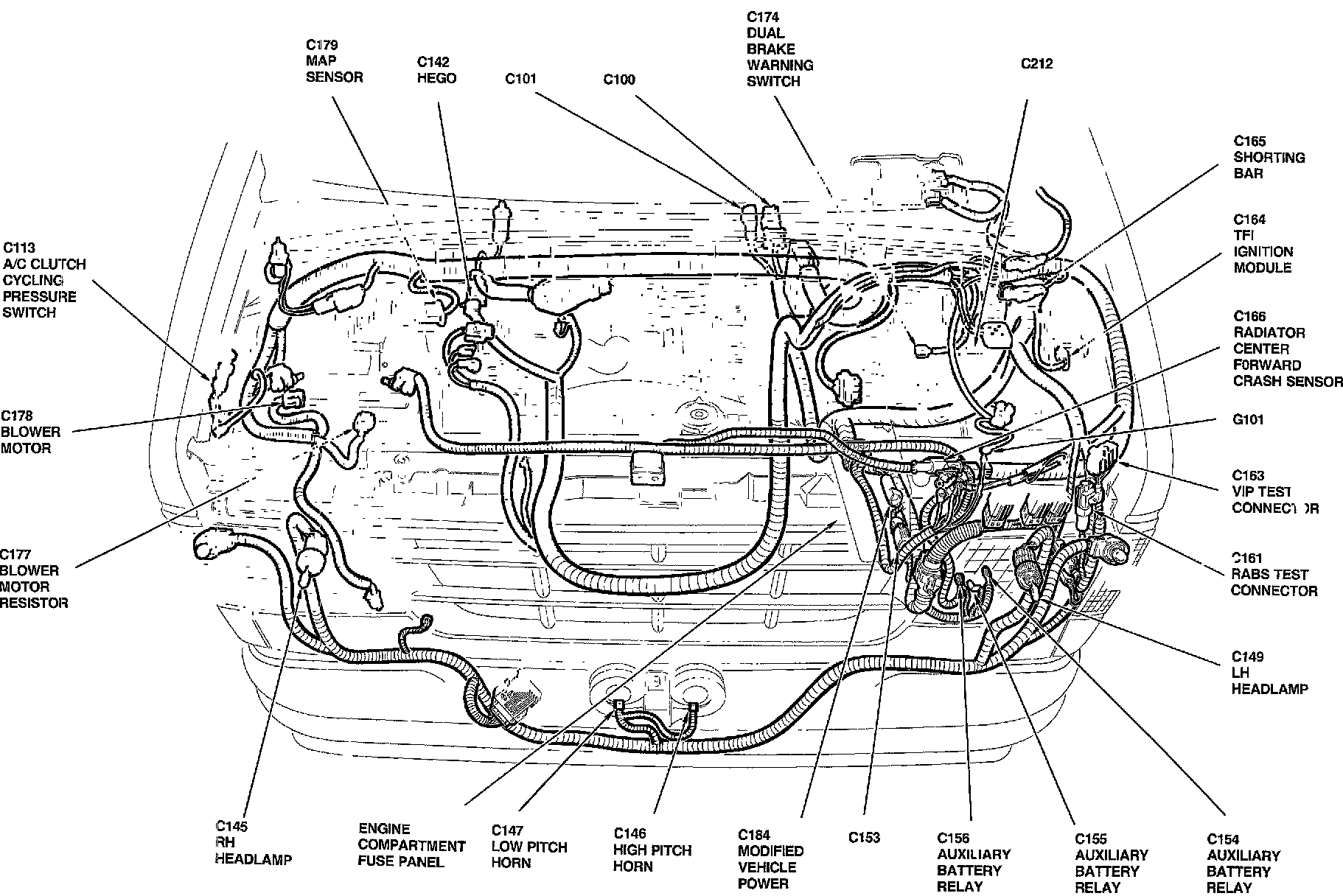

Component Location:

A/C CLUTCH CYCLING PRESSURE SWITCH
AUXILIARY BATTERY RELAY
BLOWER MOTOR
BLOWER MOTOR RESISTOR
DUAL BRAKE WARNING SWITCH
ENGINE COMPARTMENT FUSE PANEL
HEADLAMP
HEATED EXHAUST GAS OXYGEN (HEGO)
HIGH PITCH HORN
LOW PITCH HORN
MAP SENSOR
MODIFIED VEHICLE POWER
RABS TEST CONNECTOR
RADIATOR CENTER FORWARD CRASH SENSOR
SHORTING BAR
TFI IGNITION MODULE
VIP TEST CONNECTOR
