A/T - E4OD Schematics Revision

9231ford02

Article No.
92-11B-14

06/05/92


SHOP MANUAL - 1992 - PAGES 4A-25 AND 4A-26 - E4OD TRANSMISSION SCHEMATICS REVISED


LIGHT TRUCK:
1992 BRONCO, ECONOLINE, F-150-350 SERIES








ISSUE:

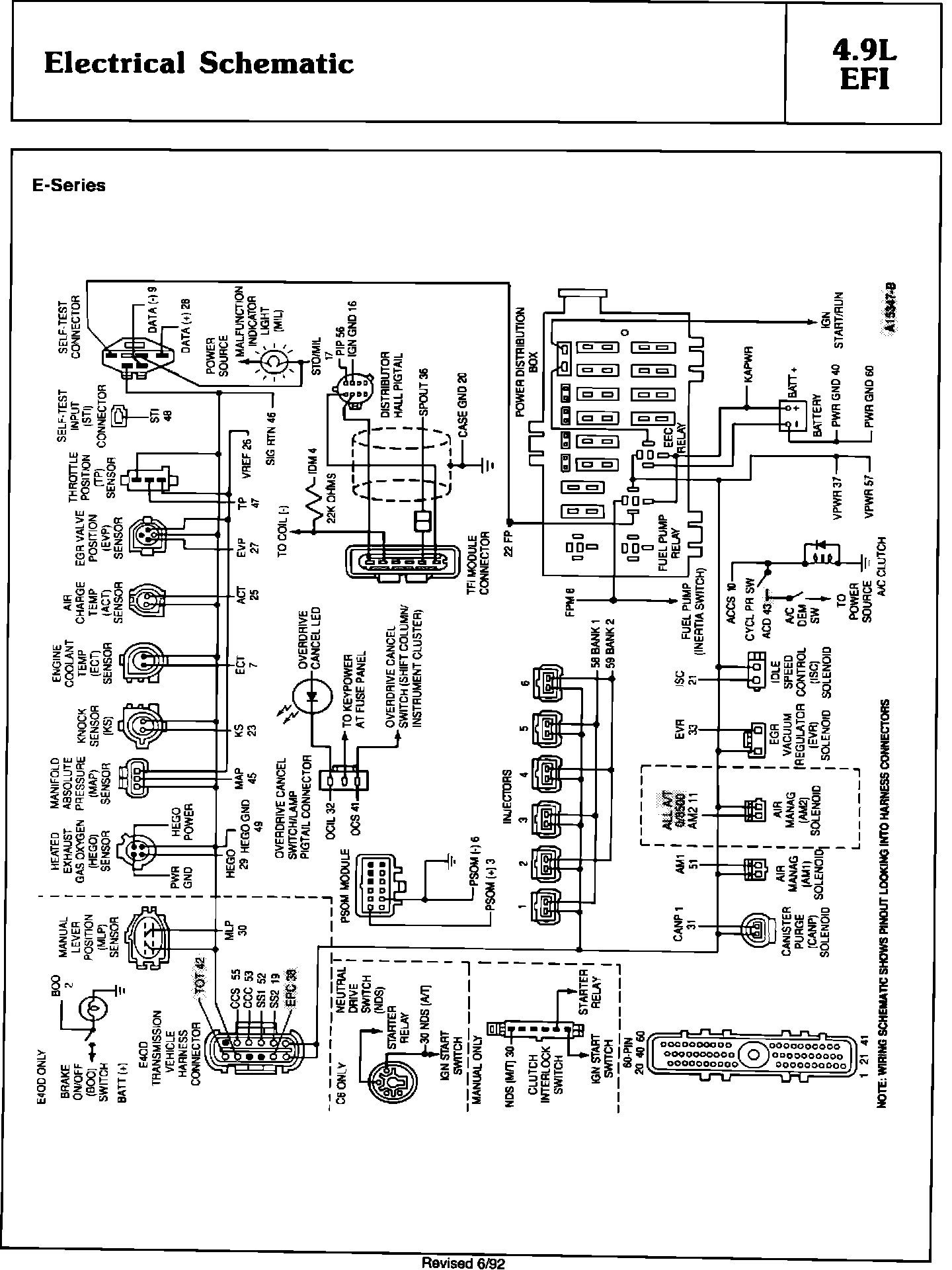

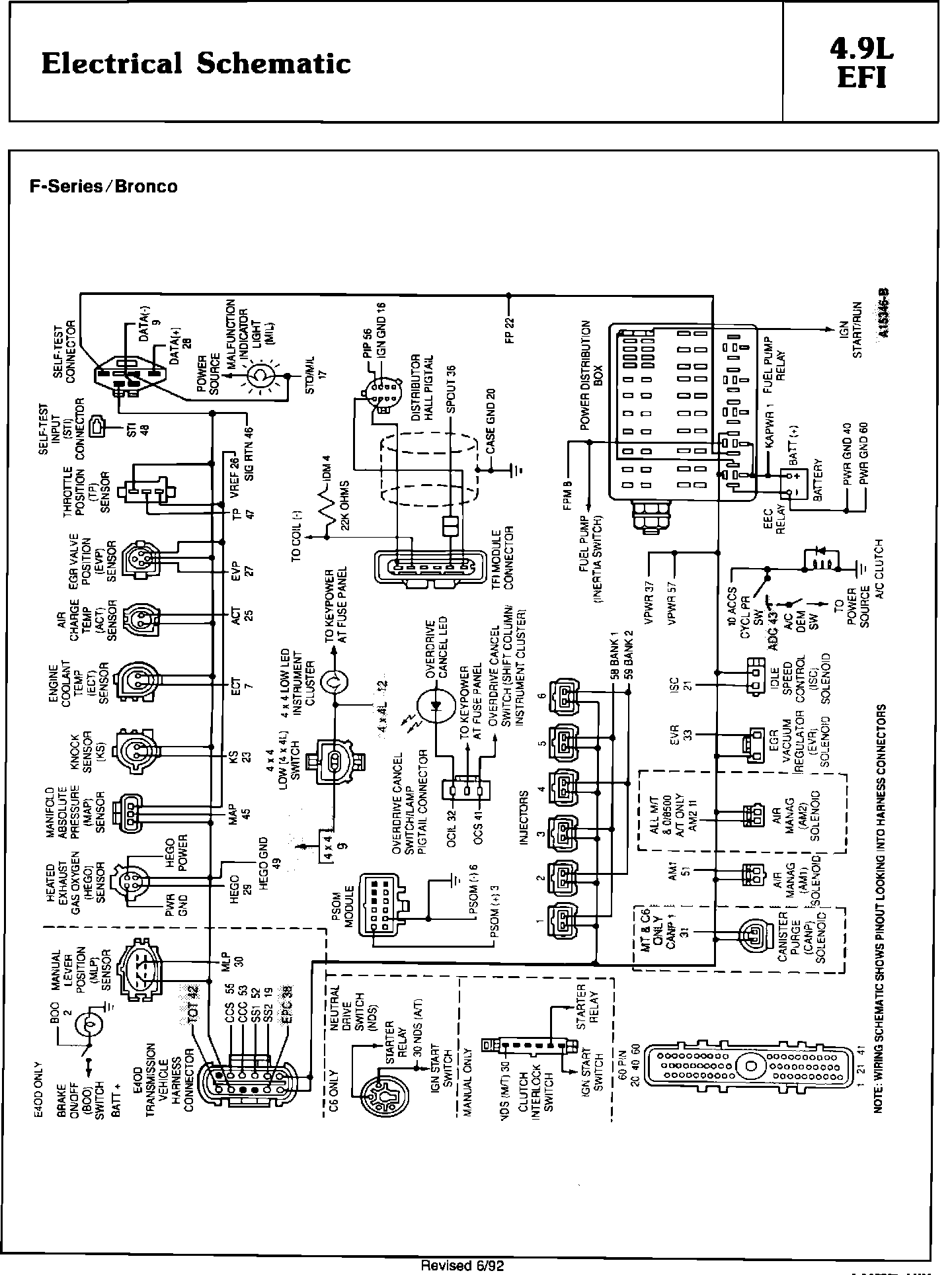

The E4OD transmission schematics for 4.9L EFI E-Series, F-Series and Bronco trucks, shown on pages 4A-25 and 4A-26 of the 1992 Powertrain Control/Emissions Diagnosis Manual, require revision.

ACTION:
Refer to the pages following this TSB article for the revised information.


OTHER APPLICABLE ARTICLES:
NONE
WARRANTY STATUS:
INFORMATION ONLY
OASIS CODES:
290000
