Main Feed Connector Circuits

Main Feed Connector Circuits

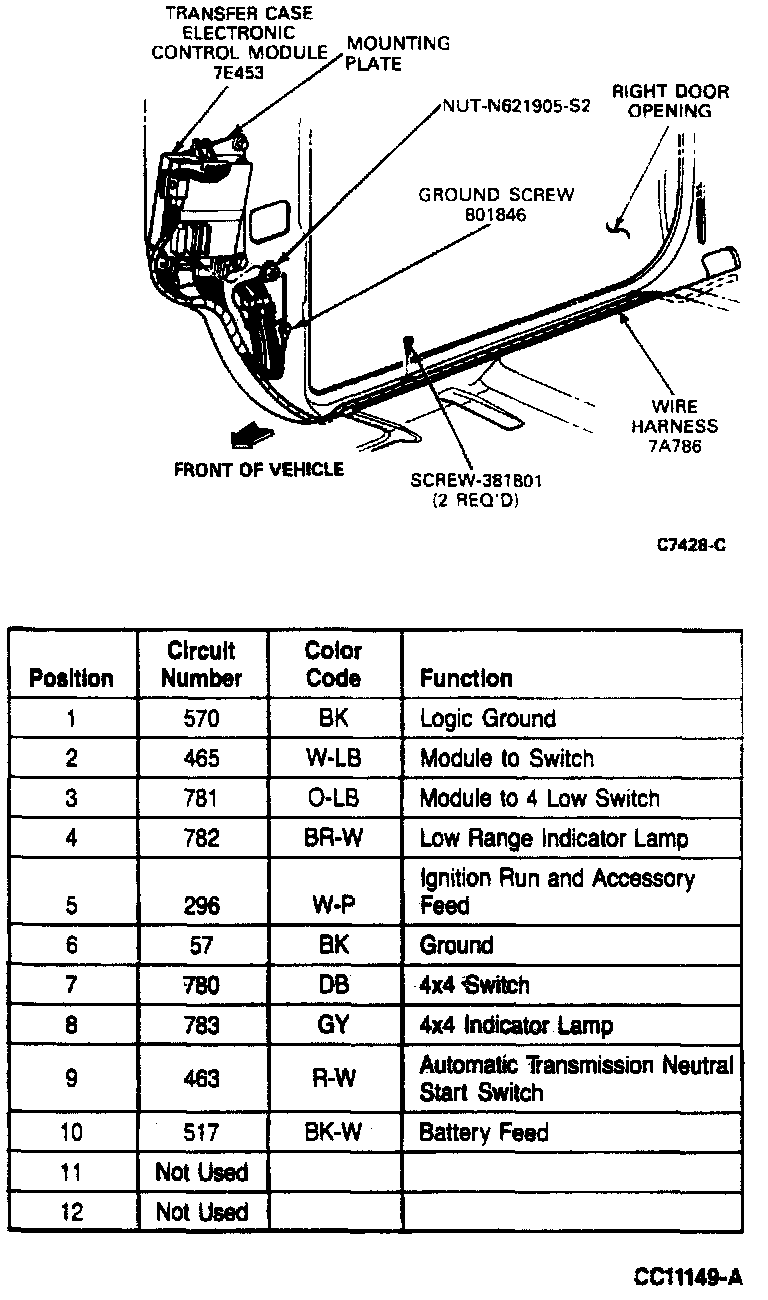

The electronic "Touch Drive" four wheel drive system main feed connector to the instrument panel harness connector is located near the middle of the instrument panel.

This connector contains the following inputs to the system:

1. The battery feed circuit through a circuit breaker provides memory capability for the electronic control module.

2. Ignition RUN feed circuit provide power through a fuse for the switches and the electric shift motor.

3. The neutral safety switch feed circuit provides input to the control module to help determine whether or not the low range position can be selected.

4. 4x4 indicator lamp to module.

5. 4x4 switch to module.

6. Low range indicator lamp.

7. The chassis ground circuit provides grounding capability for all of the system components except for the "logic ground" of the control module, which is grounded separately.
