Service Procedure - Repair For Oil Leaks At Intake Manifold

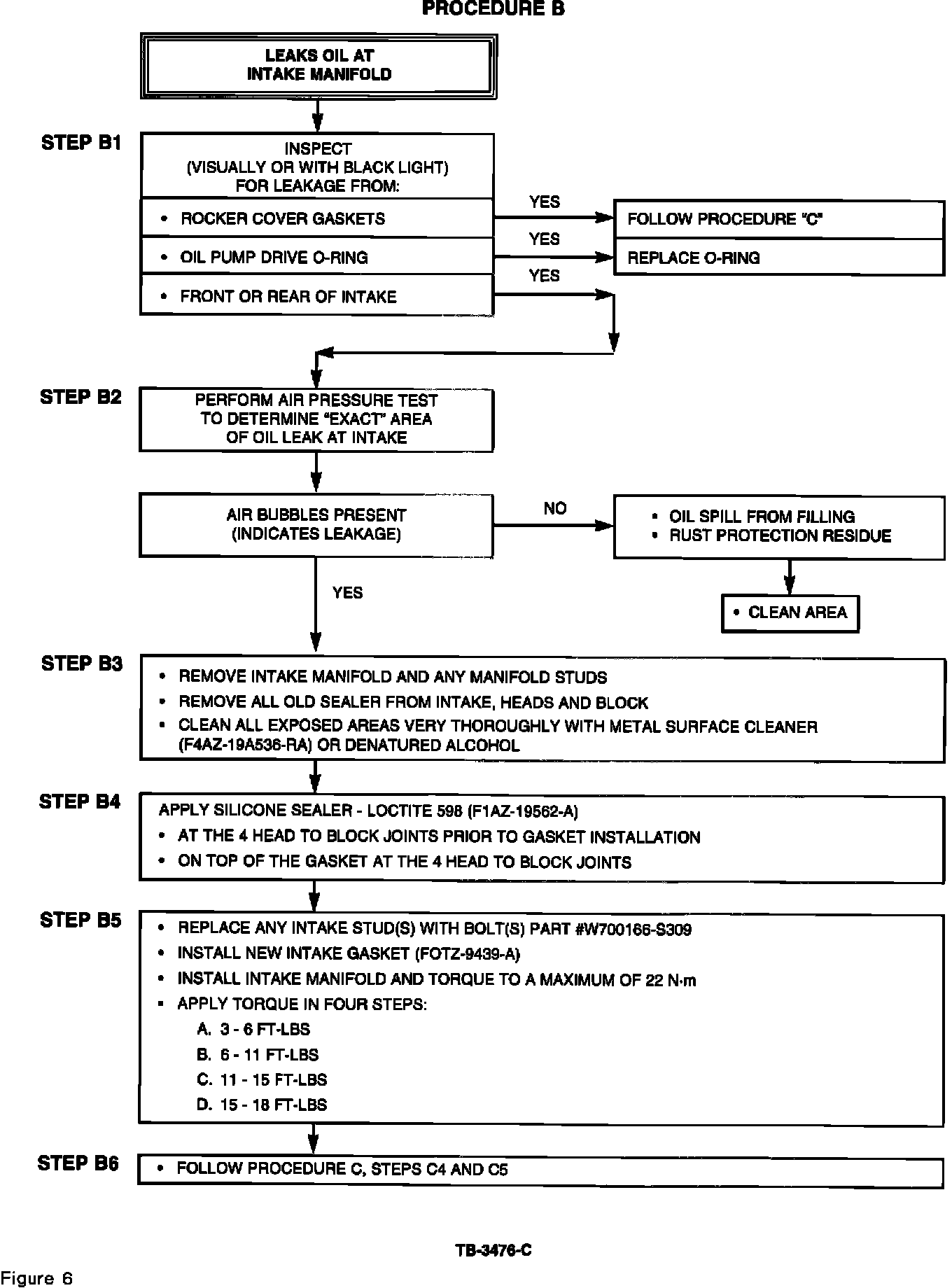

PROCEDURE B
1.
If the air pressure test showed no air bubbles, follow Procedure B2 to clean area of oil spill or other contamination.
2.
If the air pressure test showed air bubbles present, follow Steps B3 through B6. Refer also to the Service Manual for the applicable year for further information pertinent to removal and installation of the
intake manifold.
