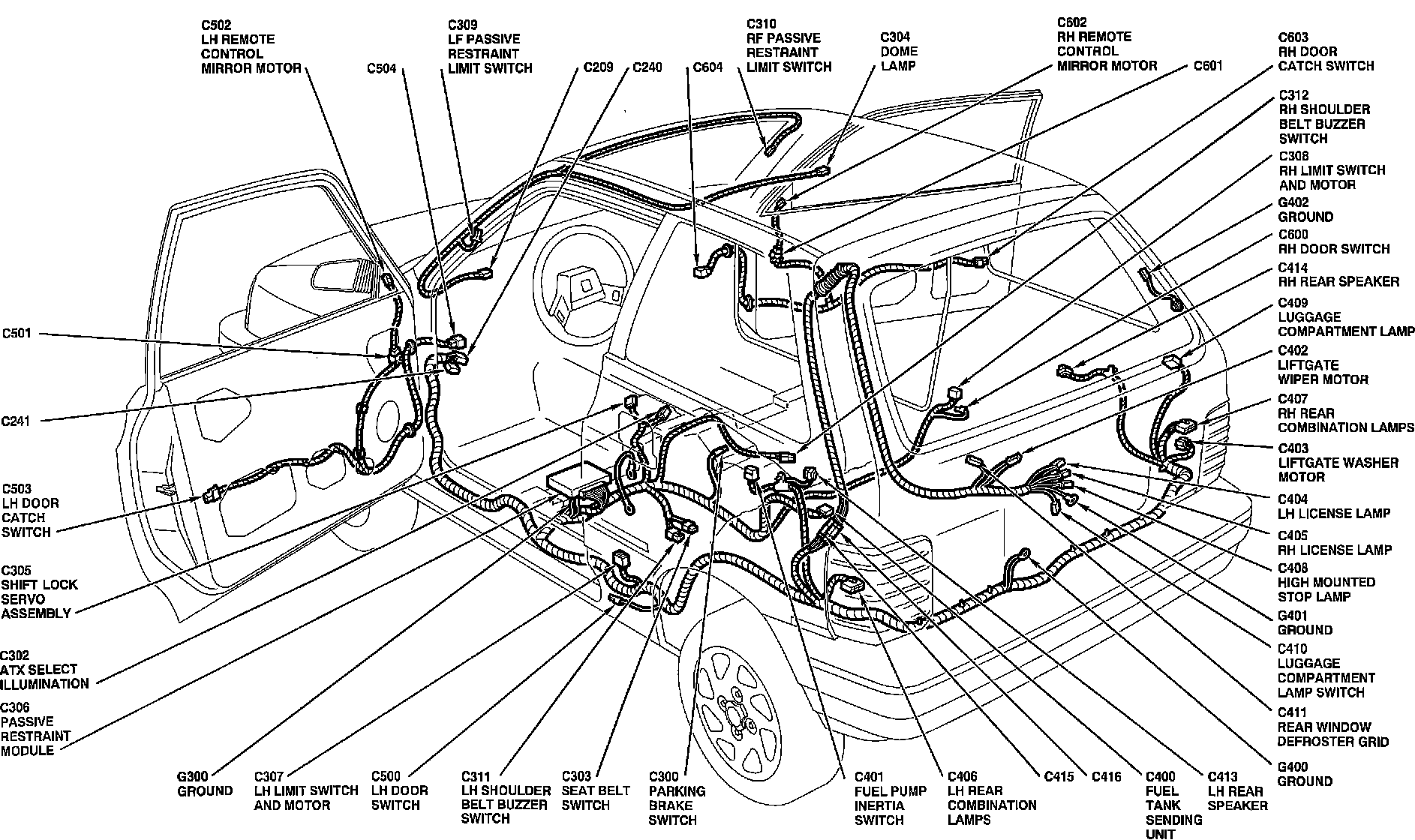

Full Body Views

Component Location:

ATX SELECT ILLUMINATION
DOME LAMP
DOOR CATCH SWITCH
DOOR SWITCH
FUEL PUMP INERTIA SWITCH
FUEL TANK SENDING UNIT
GROUND
HIGH MOUNTED STOP LAMP
LICENSE LAMP
LIFTGATE WIPER MOTOR
LIMIT SWITCH AND MOTOR
LUGGAGE COMPARTMENT LAMP
LUGGAGE COMPARTMENT LAMP SWITCH
PARKING BRAKE SWITCH
PASSIVE RESTRAINT LIMIT SWITCH
PASSIVE RESTRAINT MODULE
REAR COMBINATION LAMP
REAR DEFROSTER GRID
REAR SPEAKER
REMOTE CONTROL MIRROR MOTOR
SEAT BELT SWITCH
SHIFT LOCK SERVO ASSEMBLY
SHOULDER BELT BUZZER SWITCH
