Ride Height Correction

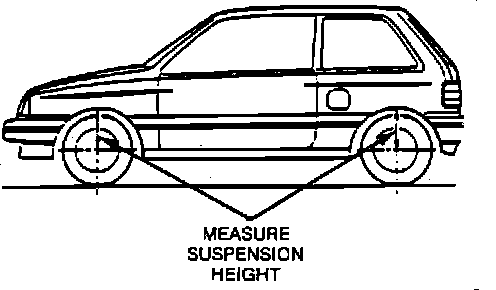

Fig. 5 Suspension Height Measurement:

Prior to checking suspension height, remove heavy items from vehicle, such as tool boxes etc. Suspension height is measured from ground to the fender cut out above the center of the wheel and tire assembly. This measurement should be performed at all four wheels. Readings from side to side and front to rear should not vary by more than 0.4 inch. It should be noted that uneven tire wear will increase the variance in the measurements and should be taken into consideration. If variance is more than 0.4 inch, check springs and suspension components for wear and damage.
