Component Tests and General Diagnostics

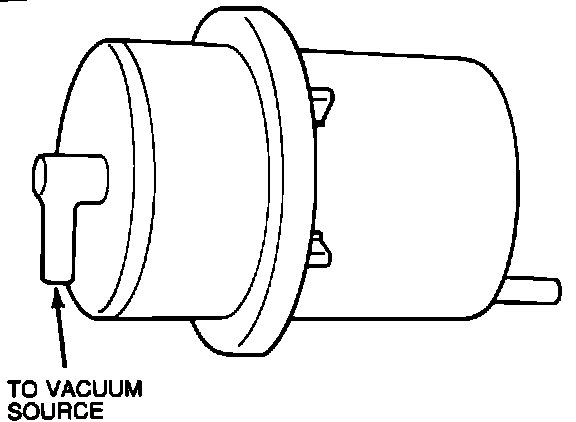

Vacuum Reservoir:





- Block off vacuum output port.

- Apply initial vacuum of 15 to 20".

If Vacuum loss exceeds .5" Hg in 60 seconds, replace the reservoir.
