Vacuum Restrictor: Description and Operation

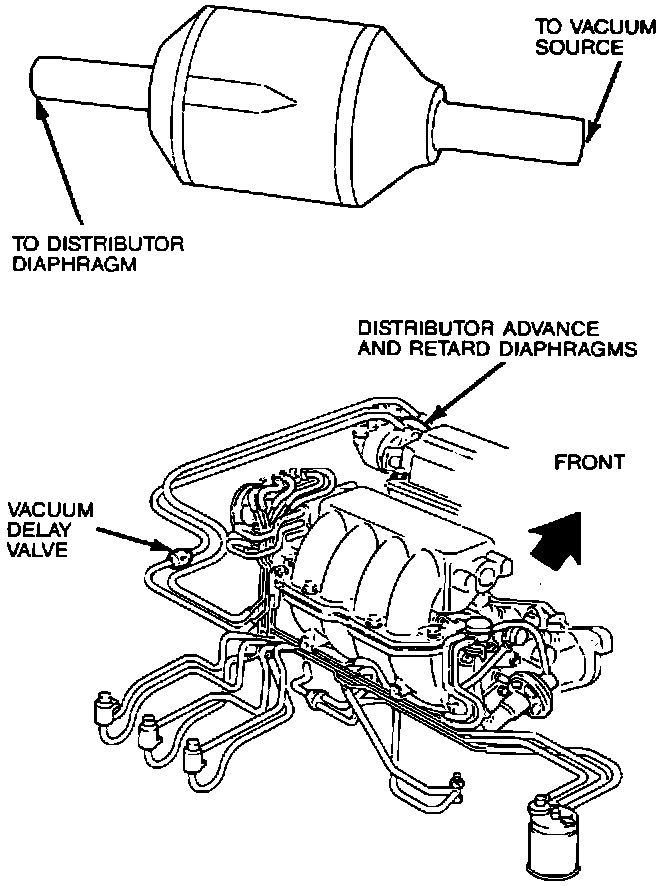

Vacuum Delay Valve:
PURPOSE Allows gradual delay of vacuum applied to
distributor retard diaphragm during sudden deceleration. This prevents erratic changes in spark timing on transitions from deceleration to sudden acceleration.
LOCATION In vacuum line between fitting at left end of intake manifold and
distributor vacuum diaphragm.
