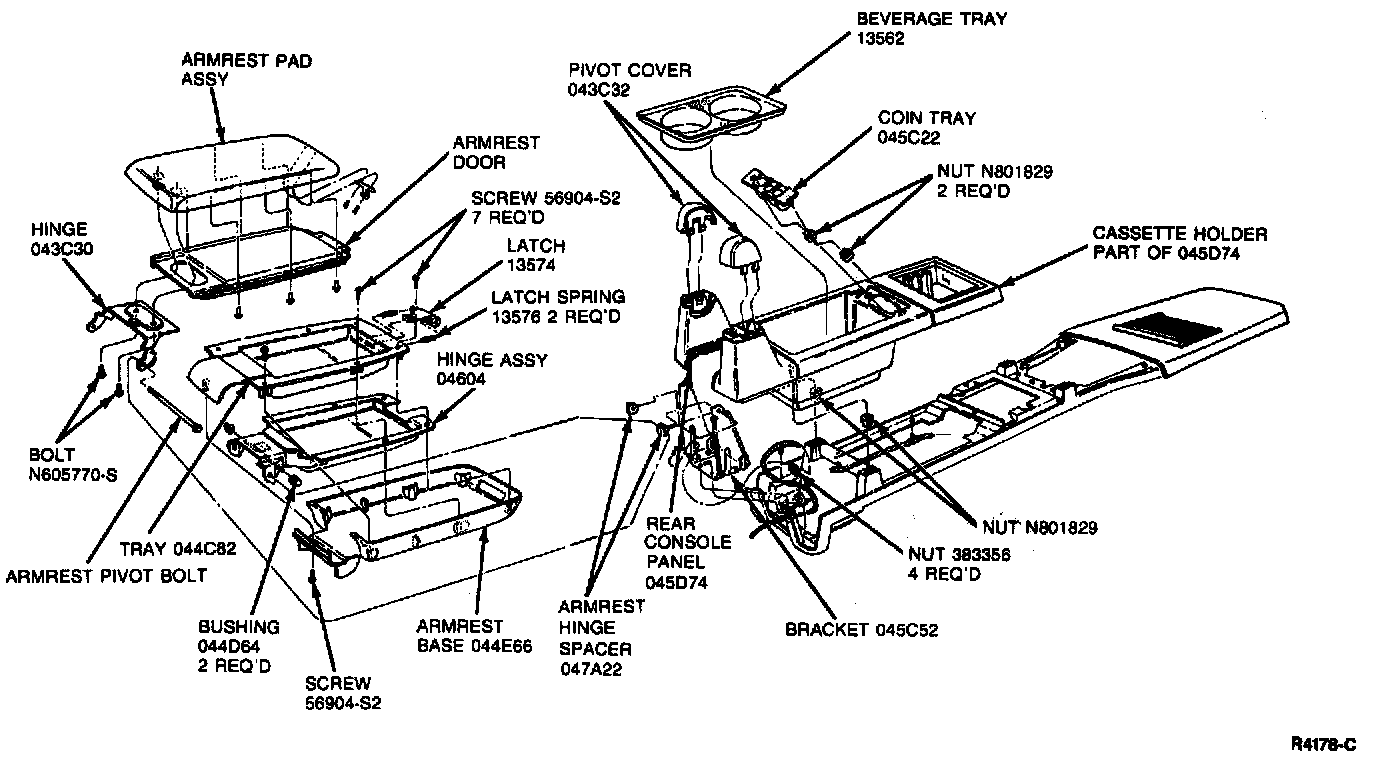

Arm Rest: Service and Repair
Removal and Installation 1.
Open armrest door and remove two hinge-to-door retaining screws. Remove armrest door.
2.
Remove both hinge covers (snap oft) to expose armrest base-to-mounting bracket attaching bolt.
3.
Remove base and armrest base.
4.
To install, reverse Removal procedure.
