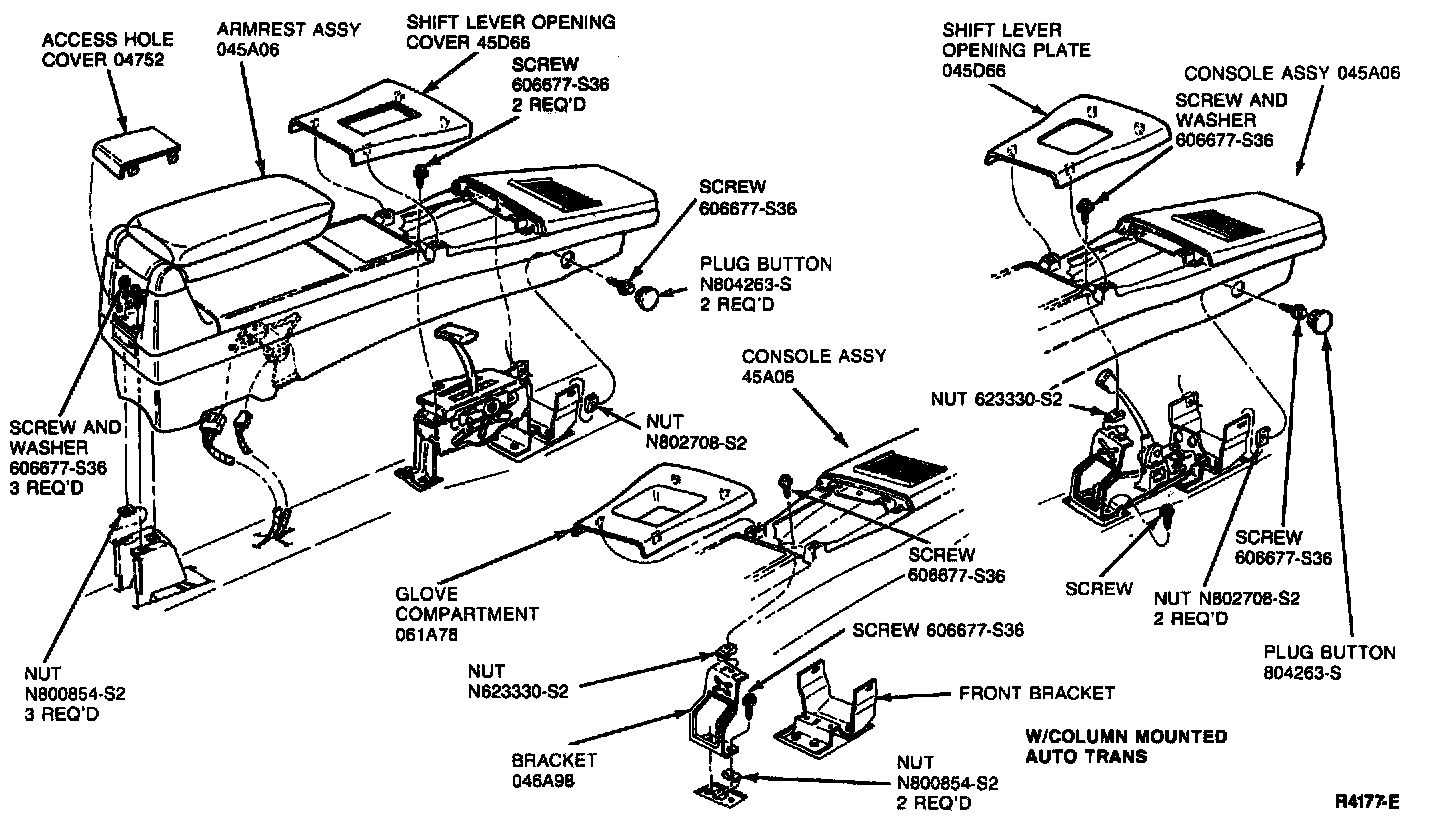

Floor Console

Removal and Installation
1. Remove two plug buttons located on base of console near the front to expose two retaining screws. Remove screws.
2. Remove gearshift opening panel (snaps out) and console-to-floor bracket retaining screws (one screw with floor-mounted manual transmission and column-mounted automatic transmission, and two screws with floor-mounted auto shifter).
3. Remove rear access panel (snaps out) and three console-to-floor bracket retaining screws.
4. Move floor-mounted shift lever to rearward-most position and slide console rearward and up.
5. Disconnect all necessary electrical connectors and remove console.
6. To install, reverse Removal procedure.
