ABS Pinpoint Test Code 63 - Revised


9231ford02

Article No.
92-11B-12

06/05/92


SHOP MANUAL - 1992 - PAGE 06-09-8 - ANTI-LOCK BRAKE SYSTEM SERVICE CODE 63 REVISED


FORD:
1992 TAURUS

LINCOLN-MERCURY:
1992 SABLE





ISSUE:
Anti-Lock Brake System Service Code 63 directs the technician to Pinpoint Test Step EE13; the correct Test Step is EE9. Page 06-09-8 of the 1992 Taurus/Sable Service Manual is affected.

ACTION:

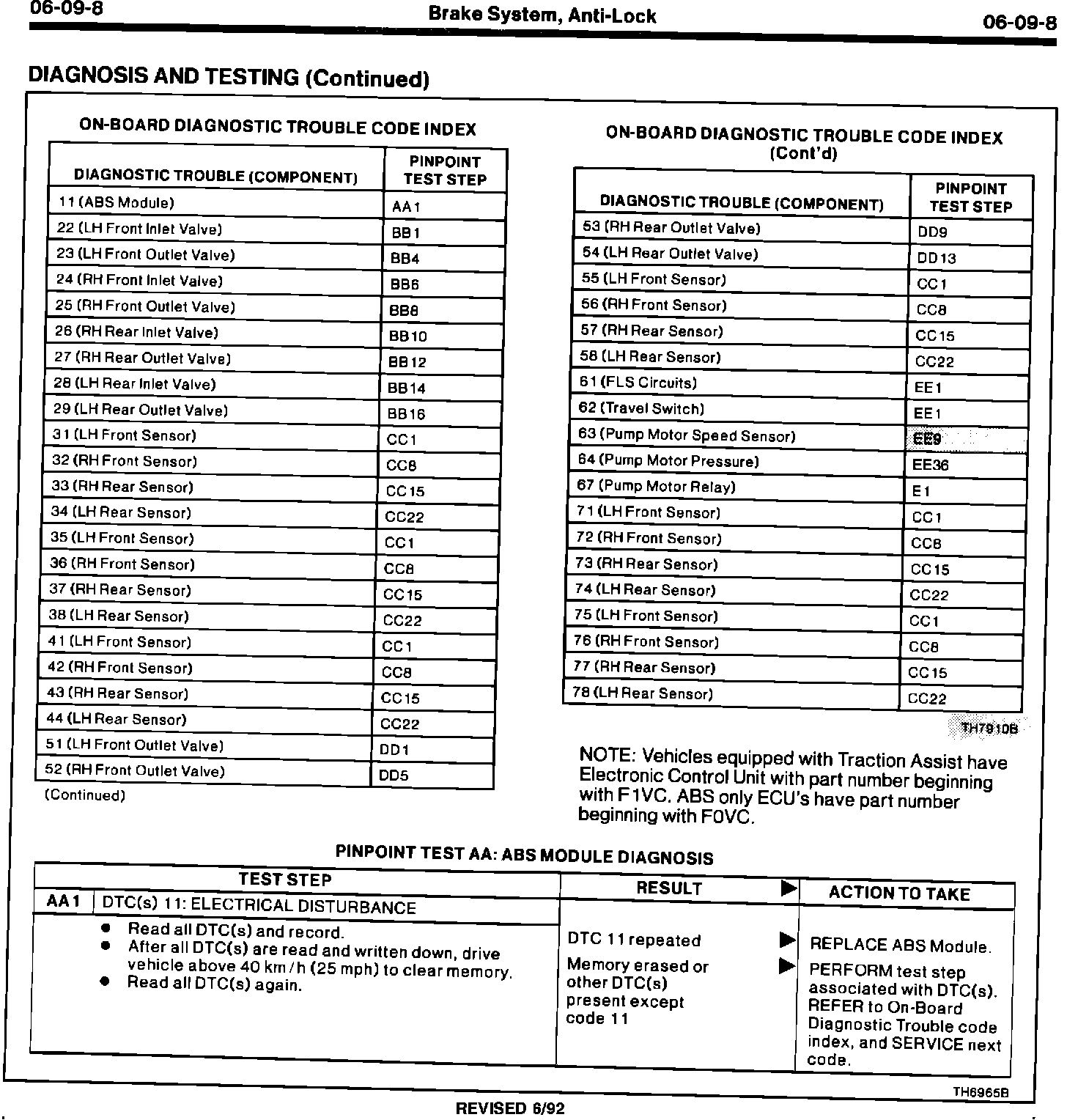

Refer to the page following this TSB


OTHER APPLICABLE ARTICLES:
NONE
WARRANTY STATUS:
INFORMATION ONLY
OASIS CODES:
390000
