Blower Motor Switch: Testing and Inspection

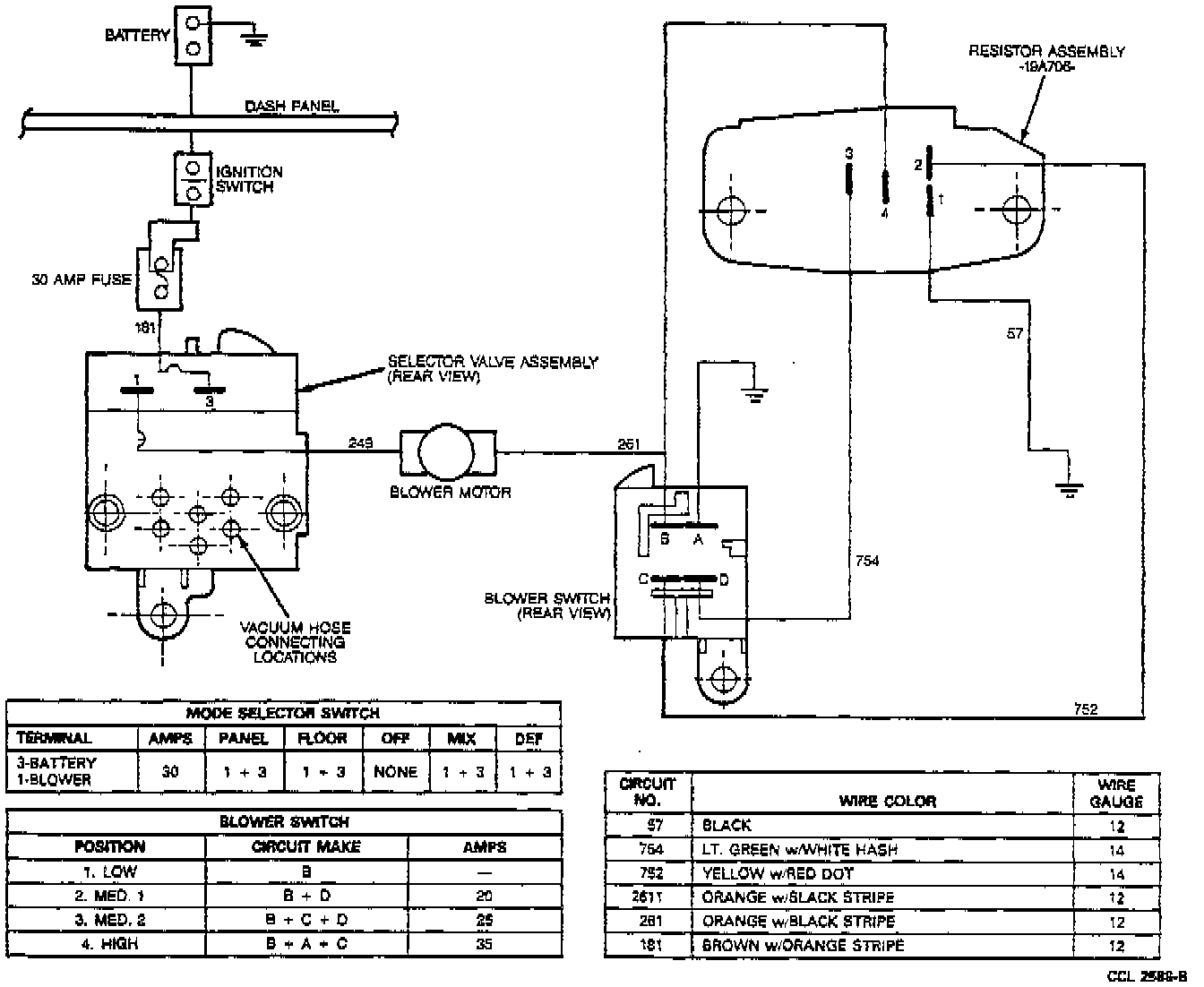

BLOWER SWITCH CONTINUITY TESTHeater System Electrical Wiring Diagram And Continuity Test Information:
^
Check for continuity between connected terminals. Check terminal continuity at every lever position.
^
The lamp should go on for each connected pair of terminals.
^
There should be no continuity between the battery terminal and the switch case.
